電化學 / 材料 / 儲能裝置測試
-

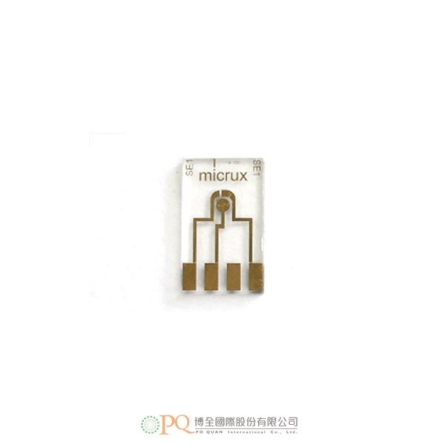

薄膜單電極 ( 金 )
Thin-film Gold Single ElectrodeED-SE1-Au三電極金方法。 電極內和電極間具有良好的再現性。 適用於爆炸物、硫醇、DNA 等的檢測以及酵素和免疫感測器。 與 Drop、AIO 和 Multi8x AIO 單元相容。加入諮詢加入諮詢 -
多通道恒電位／恒電流儀
Multi-channel Potentiostat/Galvanostat AnalyzerIviumnStat- 每個機箱最多可安裝 8 個模組/16 個通道（可堆疊至 64 個通道）。
- 模組可混合搭配，以實現最大的多功能性。
- 每個通道標配的阻抗頻率範圍為：10µHz - 250kHz（可選 1MHz）。
加入諮詢加入諮詢 -
多通道恒電位／恒電流儀
Multi-channel Potentiostat/Galvanostat AnalyzerOctoStat- 每塊模組是為8 通道恒電位/恒電流/ZRA。
- 19" 機架式外殼。
- 最多 128 通道/機架。
- 經濟實惠的高規格電化學測試系統。
- 每個通道： 專用嵌入式 FRA/EIS。
加入諮詢加入諮詢 -
恒電位/恒電流儀
Potentiostat/Galvanostat AnalyzerVertex.One- 合規性：±30mA/±10V。
- 可選購FRA/EIS：10µHz to 250kHz。
- 可選購真實線性掃描功能。
加入諮詢加入諮詢 -
恒電位/恒電流儀
Potentiostat/Galvanostat AnalyzerVertex.C- 合規性：±350mA/±13V。
- FRA/EIS：10µHz to 1MHz ( 標配 )。
- 可購選可選雙恆電位儀。
- 可選購真實線性掃描功能。
加入諮詢加入諮詢 -
恒電位/恒電流儀
Potentiostat/Galvanostat AnalyzerVertex- 提供多種電流/電壓配置。
- 電流範圍：100pA 至 10A。
- 可選購 FRA/EIS：10μHz 至 1MHz。
- 可選購真實線性掃描功能。
加入諮詢加入諮詢 -
掌上型電化學儀
Portable USB poweredpocketSTAT2.LC- 掃描範圍：±30mA/±10V。
- FRA/EIS：10µHz-1MHz。
- 低至 10pA 的電流範圍。
- 尺寸：22.3 x 6.7 x 1.9 cm。
- 重量：350 g。
加入諮詢加入諮詢 -
Devanathan-Stachurski 滲透槽
DEVANATHAN-STACHURSKI PERMEATION CELL, MODEL AMODEL ATheDevanathan-Stachurski Permeation Cell is an electrochemical double-compartment, four-electrode setup. It is typically used to investigate hydrogen permeation in steels and other alloys (diffusion constants of hydrogen in materials, density of trap sites and trap energies) as well as to evaluate ion-exchange membranes (gas diffusion coefficient/crossover, gas solubility and gas permeability typically of H2, O2, CO and H2S). Moreover, this cell can be also used with Impedance Spectroscopy to measure ionic conductivity of membrane in 2- and 4-probe setup. In the former case, a current is applied between polarizing electrodes while potential is measured across separate reference electrodes. The measurement is therefore agnostic to any side reactions occurring at the polarizing electrodes. Luggin capillaries that make an ionic connection between permeated material and reference electrode, minimize the contribution from the ohmic drop in an aqueous electrolyte. Those Luggin capillaries are located closely to the studied permeable material and outside of the current path between polarizing electrodes. The cell elements are constructed with materials that are inert to the sample (PEEK and other fluorinated plastics). It well fits aqueous (FKM O-Rings and gaskets) electrolyte requirements. An organic electrolyte version is available on request. The construction is gas tight. Reference electrodes and polarizing electrodes are not included in the setup and should be added to the quotation separately.
加入諮詢加入諮詢 -
樣品支架
SAMPLE HOLDER 15 MM X 15 MM15 MM X 15 MMThe sample holder (known also as flat specimen holder) is used for holding flat, circular or square/rectangular samples. It enables contacting the sample from the front (e.g. ITO/FTO glass, Monolayer Graphene on SiC, or Boron-Doped Diamond thin film on various substrates) and from the back (e.g. metal specimen, Glassy Carbon plate, Boron-Doped Diamond plate). The nominal aperture is 0.07cm2, but other value can be provided on request. The large electrical contact with copper foil surface (not being in contact with an electrolyte) ensures optimal current collection by minimizing electrical resistance and unifying current distribution. The rod with electrical connection has a diameter of 6 mm, which makes the sample holder compatible with our voltammetry cells and jacketed cells, as long as it fits in. We may also provide an adapter to install this sample holder in openings larger than 6 mm dia.
The sample holder elements are constructed with materials that are inert to the electrochemical system (PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is well sealed which prevents the electrolyte to leak inside.加入諮詢加入諮詢 -
帶支架的鉑金塗層鈦網電極
PLATINUM COATED TITANIUM MESH ELECTRODE WITH HOLDER一套10個The metal counter (auxiliary) electrode is provided in electrochemical cell as a current sink to shunt excess current away from the reference electrode. Platinum Coated Titanium Mesh Electrode is a cheap alternative to pure Platinum Electrodes like Platinum Gauze Electrode or Metal Wire Auxiliary Electrode. Platinum coating makes this counter electrode inert under the reaction conditions and provides catalytic properties. The electrode is installed in the Basic Sample Holder (1 pcs included in the set), which allows full immersion of the electrode in the electrolyte (wet Tantalum contact). It well fits aqueous and organic solvent electrolyte requirements. Electrode size is customizable.
加入諮詢加入諮詢
