微量靜電火花敏感度測試器

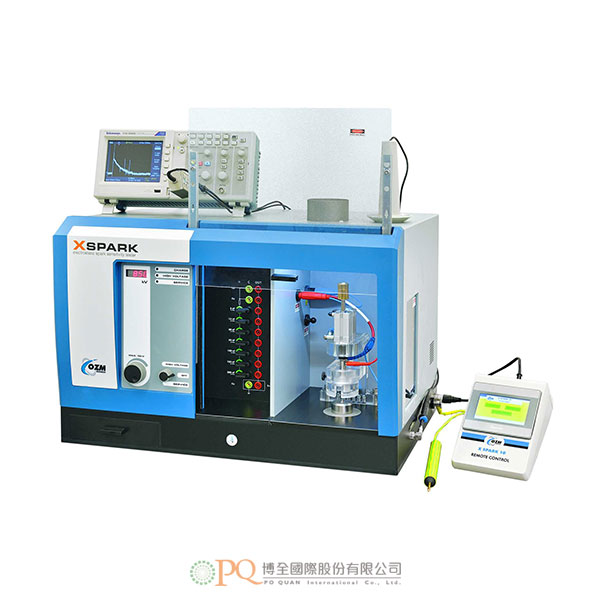

OZM Small-Scale Electrostatic Spark X SPARK 10 型號：X SPARK 10- OZM X SPARK 10是最新一代的通用測試器(源自舊型ESD 2008A)，設計專用於精準的測量含能材料能量的起爆 - 對靜電火花的敏感度。
- X SPARK 10的設計，適用於在放電能量範圍25 μJ～25 J及電壓500V～10 KV下，精準測量含能材料的起爆能量。
- X SPARK 10在2種放電模式下運作 - 振盪及阻尼 – 以測試各類含能材料對靜電火花(放電)的敏感度。
- 可提供幾種火花間隙組件的設計，也可提供依據不同標準或測試方法的要求所進行的客製化設計。
-
- OZM X SPARK 10是最新一代的通用測試器(源自舊型ESD 2008A)，設計專用於精準的測量含能材料能量的起爆 - 對靜電火花的敏感度。
- X SPARK 10的設計，適用於在放電能量範圍25μJ～25J及電壓500V～10KV下，精準測量含能材料的起爆能量。
- X SPARK 10在2種放電模式下運作 - 振盪及阻尼 – 以測試各類含能材料對靜電火花（放電）的敏感度。
- 可以提供幾種火花間隙組件的設計，也可提供依據不同標準或測試方法的要求所進行的客製化設計。
- 應用：
- 靜電放電是含能材料意外爆炸最常見及最無明顯特性表徵的原因之一。因此，含能材料對靜電火花的敏感度的可靠資料，在其製造、品管、炸藥製程、裝填、運輸、存放、廢除或新爆炸性材料的研發中，便極為重要。
- 優點及特點：
- 小巧的設計。
- 能測量全部火花能量及存在火花間隙中的能量，並且直接與樣品互相影響。
- 適用於所有類型的含能材料，包括結晶/顆粒狀高爆炸藥、推進劑、煙火及一級炸藥。
- 提供2種測試模式 - 震波或熱起爆機制。
- 可更換的火花間隙組件。
- 氣密保護蓋，用於簡單的蒐集分析氣體的分解產物。
- 提供幾款自動操作的測試台型式 - 可依據不同的國際標準進行測試，包括具有固定距離電極的測試台及具有接近的陽極的測試台。
- 提供外部測試組件 - 可測試較大量的爆炸物樣品 - 最多可達0.5g。
- 電容器組提供多種容量，可在任意能級的寬廣能量範圍內進行測試。
- 符合以下測試標準：
- EN 13938-2：民用炸藥 - 推進劑與火箭推進劑 - Part 2：測定對靜電能量的耐受性。
- STANAG 4490：靜電放電敏感度測試。
- MIL-STD-1751A：爆炸物合格鑑定的安全性與性能測試 - Method 1031，1032 & 1033。
-
- 儀器：
- 輸出電壓：0.5～10kV。
- 輸出電流：10mA。
- 輸入電壓：~ 230V，50Hz。
- 功率輸入：P = 100VA。
- 保護：IP 40/20。
- 內建高壓電容器及阻尼電阻器：
- 容量Umax = 10kV：5；15；30；100；150；200nF。
- 電阻Umax = 10kV：RD = 10kΩ
- 外部電容器組：
- 容量Umax = 10kV：20；40；100；250；400pF，1；2；3nF (標稱值)。
- 放電能量範圍：
- 安裝的電荷能量E：25μJ～25J。
- 最大樣本體積/大約的重量：
- 2.2 mm3 / 5mg (ESD-OZM/TNO)。
- 94 mm3 / 188mg (ESD-10EEN)。
- 詳細規格、配件、應用及選購，歡迎洽詢。
- 儀器：
-
- The X SPARK 10 is the newest generation of universal testing instrumentation (stemming from the ESD 2008A) designed for the precise measurement of the initiation of energy (sensitivity to electrostatic spark) of energetic materials. It is designed for the precise measurement of the initiation energy of energetic materials in the range of discharge energies (from 25 μJ to 25 J) and voltage between 500V – 10 KV.
- The X SPARK 10 operates in the two discharge regimes – Oscillating & Damping – for testing the sensitivity to electrostatic spark (discharge) of various classes of energetic materials. Several designs of the spark gap assemblies are possible; custom designs according to the requirements of different standards or testing methods are available on request.
- APPLICATION:
- Electrostatic discharge is one of the most frequent and the least characterized causes of accidental explosions of energetic materials. Reliable data on the electrostatic spark sensitivity of energetic materials is thus critical in their manufacture, quality control, explosives processing, loading, transportation, storage, demilitarization and research and development of the new explosive materials.
- ADVANTAGES & FEATURES:
- Compact design
- Allows for the measurement of both the total spark energy and the energy that is presented in the spark gap and directly interacts with the sample
- Useful for all types of energetic materials including crystalline/granular high explosives, propellants, pyrotechnics and as well primary explosives
- Two testing modes for shock wave or thermal mechanism of initiation
- Replaceable spark gaps
- Gas tight protection cap for simple collection analysis of gaseous decomposition products
- Several models of automatically operated testing stands for testing according to different international standards including stands with fixed distances of electrodes and stands with an approaching anode
- External testing assemblies are designed for the testing of the larger amount of explosive samples up to 0,5 g of explosive
- Wide variety of capacities in the capacitor bank for testing within wide ranges of energies at arbitrary energy levels
- COMPLIANCE:
- EN 13938-2 Explosives for civil uses – Propellants and rocket propellants – Part 2: Determination of resistance to electrostatic energy.
- STANAG 4490: Electrostatic Discharge Sensitivity Tests
- MIL-STD-1751A Safety and Performance Tests for the Qualification of Explosives - Methods 1031, 1032 & 1033.
-
- Apparatus:
- Output voltage : 0.5 - 10 kV
- Output current: 10 mA
- Input voltage: ~ 230 V, 50 Hz
- Power input: P = 100 VA
- Protection: IP 40/20
- Built-in high voltage capacitors and damping resistor:
- Capacity Umax = 10kV: 5; 15; 30; 100; 150; 200 nF
- RESISTANCE Umax = 10kV: RD = 10 kΩ
- Set of External capacitors:
- Capacity Umax = 10kV: 20; 40; 100; 250; 400 pF, 1; 2; 3 nF (nominal values)
- Discharge energy range:
- Installed energy of electric charge E: from 25 µJ to 25 J
- Maximum sample volume/approx. weight:
- 2.2 mm3 / 5 mg (ESD-OZM/TNO)
- 94 mm3 / 188 mg (ESD-10EEN)
- Please feel free to contact for detailed specifications, accessories, software and options.
