VT-3

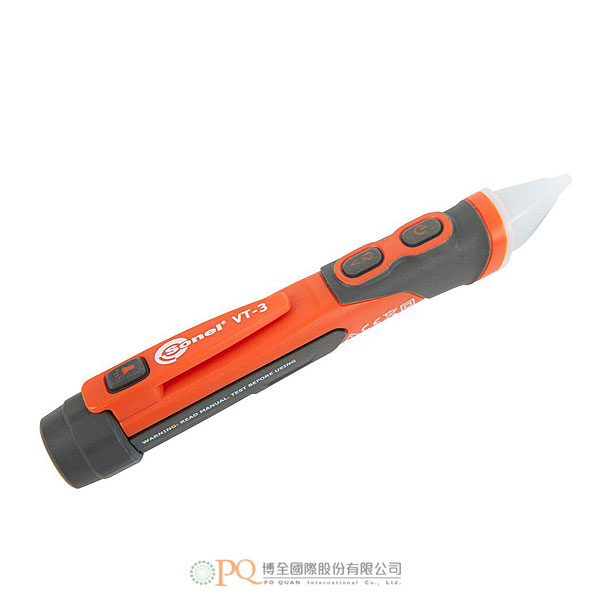

Non-Contact AC Voltage Detector 型號：VT-3The VT-3 non-contact AC voltage indicator is a basic and handy device used to detect alternating voltage in electrical installations by emitting light and sound signals. It is dedicated to professional electricians and all other professions, where the user is dealing with alternating voltage or is exposed to electric shock.
-
Simple and durable construction provides the ease of use and protects the device against damage, even liquid polution. The device has two built-in flashlights. The one in the front allows to illuminate the place of measurement and the one in the back can be used as a regular flashlight.. Two measuring ranges enable precise voltage detection, which makes the indicator more versatile.
- two AC voltage detection ranges: 12 V / 100 ... 1000 V
- durable, two-composite housing
- waterproof with IP67 protection
- backlit tip, suitable for power sockets
- light and sound signalling when voltage is detected
- built-in LED flashlight
- ergonomic housing with the possibility of attaching to a belt
- for use in 50/60 Hz mains
- power supply: 2x AAA 1.5 V battery
-
indicators LED and acoustic indicator voltage range 100…1000 V AC
12…1000 V AC
50/60 Hzmeasurement category IV 1000 V ingress protection IP67 operating temperature 0…+50°C / 32…122°F humidity 80% power supply 2x 1.5 V battery (AAA, NEDA 24A or IEC LR03) dimensions 160 x 23 x 25 mm / 6.3 x 1.0 x 1.0” weight 78 g / 0.2 lbs flashlight single white LED
