UV-260

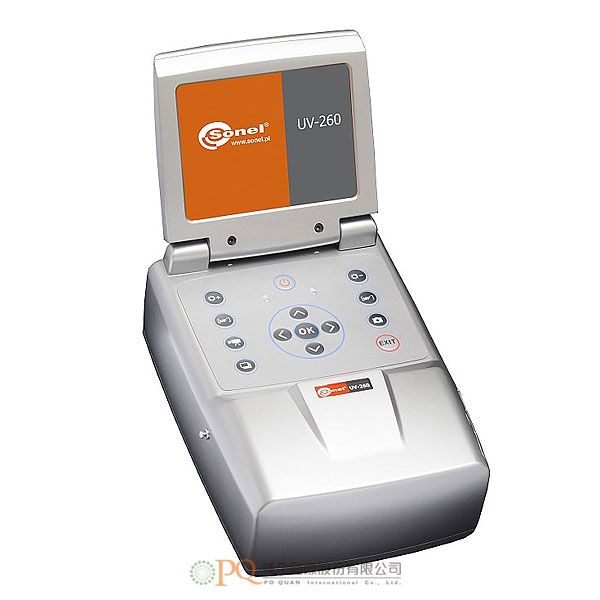

Corona Camera 型號：UV-260
Being with high sensitivity UV-260 is a power tool to detect UV emission in full daylight with high signals from faraway and nearby sources. UV-260 is an ideal predictive maintenance device for overhead transmission lines and high voltage substations.
UV-260 is newest genaration of UV imaging system with an emphasis on high performance functionality and easy operation, it is widely used in transmission line inspection, electrical utilities, HV research institutes, HV electrical component inspection, HV panal inspection, service providers, laboratories and more.
UV-260 is newest genaration of UV imaging system with an emphasis on high performance functionality and easy operation, it is widely used in transmission line inspection, electrical utilities, HV research institutes, HV electrical component inspection, HV panal inspection, service providers, laboratories and more.
-
-
UV-260 isan innovative NDT - Non Destructive Testing equipment, that detects, pinpoints and documents flash-arc corona and arcing partial discharge camera!
Being with high sensitivity UV-260 is a power tool to detect UV emission in full daylight with high signals from faraway and nearby sources. UV-260 is an ideal predictive maintenance device for overhead transmission lines and high voltage substations.
UV-260 is newest genaration of UV imaging system with an emphasis on high performance functionality and easy operation, it is widely used in transmission line inspection, electrical utilities, HV research institutes, HV electrical component inspection, HV panal inspection, service providers, laboratories and more.- High sensitivity to UV signals
- Precise location of corona emitting sources
- Auto focus of UV and visible channels
- Back ground noise reduction
- 5.7" folding and touchable color LCD
- Sound or LED UV events alarm
- Fast optical zoom of the visible channel
- Videos & images capturing, recording and playback
- Built-in GPS
- UV events counter
- UV-260 report software for documentation
-
-
Visible - Optical Properties Image Type Color video UV/Visible
Overlay AccuracyBetter than 1 milliradian Minimum visible light sensitivity 0.1 lux Zoom factor 26x optical and 12x digital Display Typ 5.7" VGA color LCD, folding and touchable Video Standard PAL/NTSC switchable Modes Combined (UV & visible), UV only, Visible only Corona Shades White, Red, Blue Processing & Communications Video standard H.264 Alarms LED Menu Button operation or touchable operation Audio Microphone input for audio notes GPS Yes Data Storage Storage Media SD card Image Format JPG Video Storage AVI compressed format Storage Capacity 8000 images，or >4 hours videos Data download card reader Power system Power Consumption 10 W Battery Type Rechargeable li-ion battery (2 pcs.) Battery Run Time 2 hours Charge Online charging or charger External supply 9-12 V, 10 VA Power adapter 110-240 VAC, 50-60 Hz/12 VDC 3.8 A Others Operating temperature -10°C- 50°C Storage temnperature -25°C- 60°C Humidity 95% Non condensing Size 238 mm x 165 mm X 91 mm Weight 2,5 kg Power interface Yes SD card slot Yes Video output BNC Audio input / output Microphone / Headphones Standard accessories:
- AC power adapter
- 2pcs Li-ion battery
- charger，SD card
- SD card reader
- video cable
- car power adapter
- software CD
- warranty card
- strap
- transport case
- manual
UV - Optical Properties Image Type Monochrome video Minimum UV Sensitivity 3 x 10-18 watt / cm2 Minimum Discharge Detection 1.5pC @ 8 meters Spectral range UV 240 - 280 nm Field of View H x V 5.5°x 4.0° Focus Full manual and auto for UV and visible channels Focus distance 2 m...∞ Detector Life Span No degradation Frequency 50Hz/60 Hz
