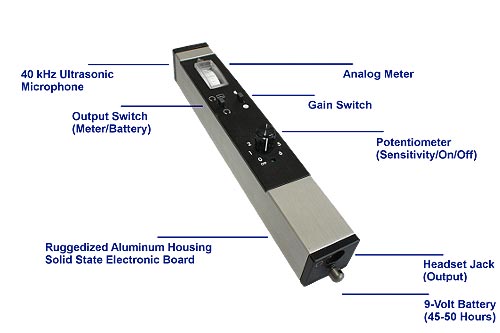

UL101 Troubleshooter
UL101 Troubleshooter 型號:UL101 Troubleshooter對所有擾流空氣、氣體或真空洩漏具有高靈敏度
容易調節的靈敏度和增益
可單手輕便操作
能夠將超聲波轉換為容易識別的聲音
無需充電的標準 9 V電池
-
- 固定頻率
- 對所有擾流空氣、氣體或真空洩漏具有高靈敏度
- 容易調節的靈敏度和增益
- 可單手輕便操作
- 能夠將超聲波轉換為容易識別的聲音
- 無需充電的標準 9 V電池
應用
- 洩漏檢測(壓力和真空)
- 非加壓系統(遏制測試)
- 電氣檢查
- 閥門和蒸汽疏水閥
- 機械檢查(電機軸承、齒輪箱等)
-
Receiver / Transmitter Dimensions
8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)
4.125″ x 1.26″ x 1.26″ (105 x 32 x 32 mm)Receiver / Transmitter Weight
11.6 oz (330 g)

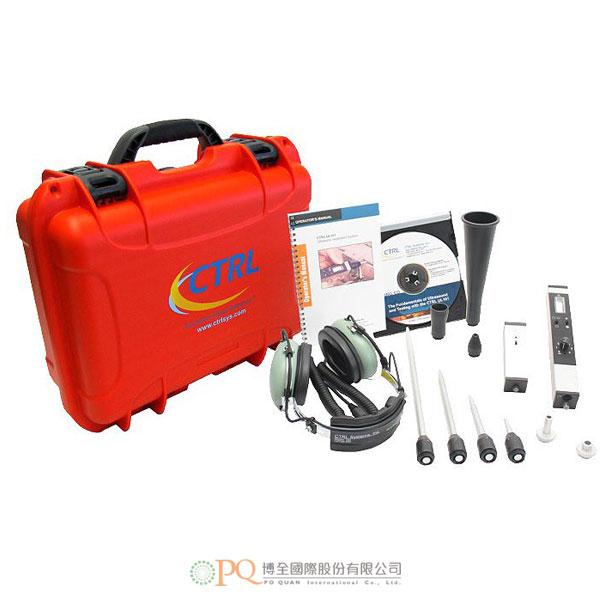

6.2 oz (175 g)Kit Shipping Dimensions
17″ x 8″ x 14″ (43 x 20 x 35 cm)
Kit Shipping Weight
10 lbs (4.5 kg)
Housing
Extruded Aluminum, wall thickness .09″ (2.3 mm)
Battery
9-Volt Alkaline (> 45 continuous hours use)
Distance of Reception
Up to 150 feet (45 m)
Sensitivity Threshold
Minimum Intensity: 10-12 W/m2 (0 dB SPL)
Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40kHzFrequency Bandwidth
1.8 – 2.2 kHz @ level 0.7 (or -3 dB SPL)
Operating Temperature Range
-4° to +130° F (-20° to +54° C)
Headset
Industrial Grade/600-Ohm Impedance
21-24 dB External Noise Attenuation -
- Fixed Frequency
- High Sensitivity to all turbulent flow air, gas, or vacuum leaks
- Easily adjustable sensitivity and gain
- Lightweight, one-handed operation
- Converts ultrasound to easily recognizable audible sounds
- Standard 9-Volt Battery means no waiting to recharge
Applications
- Leak Detection (Pressure & Vacuum)
- Non-Pressurized Systems (containment testing)
- Electrical Inspection
- Valves & Steam Traps
- Mechanical Inspection (motor bearings, gearboxes, etc.)
-
Receiver / Transmitter Dimensions
8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)
4.125″ x 1.26″ x 1.26″ (105 x 32 x 32 mm)Receiver / Transmitter Weight
11.6 oz (330 g)
6.2 oz (175 g)Kit Shipping Dimensions
17″ x 8″ x 14″ (43 x 20 x 35 cm)
Kit Shipping Weight
10 lbs (4.5 kg)
Housing
Extruded Aluminum, wall thickness .09″ (2.3 mm)
Battery
9-Volt Alkaline (> 45 continuous hours use)
Distance of Reception
Up to 150 feet (45 m)
Sensitivity Threshold
Minimum Intensity: 10-12 W/m2 (0 dB SPL)
Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40kHzFrequency Bandwidth
1.8 – 2.2 kHz @ level 0.7 (or -3 dB SPL)
Operating Temperature Range
-4° to +130° F (-20° to +54° C)
Headset
Industrial Grade/600-Ohm Impedance
21-24 dB External Noise Attenuation
