電力設備測試 > 超音波檢測儀

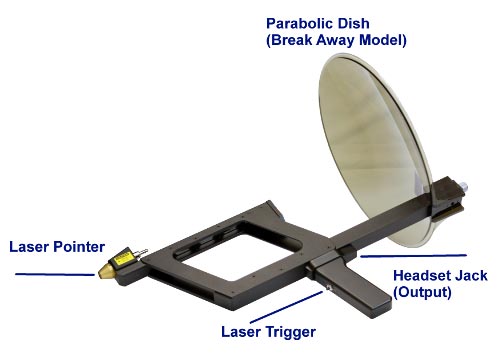

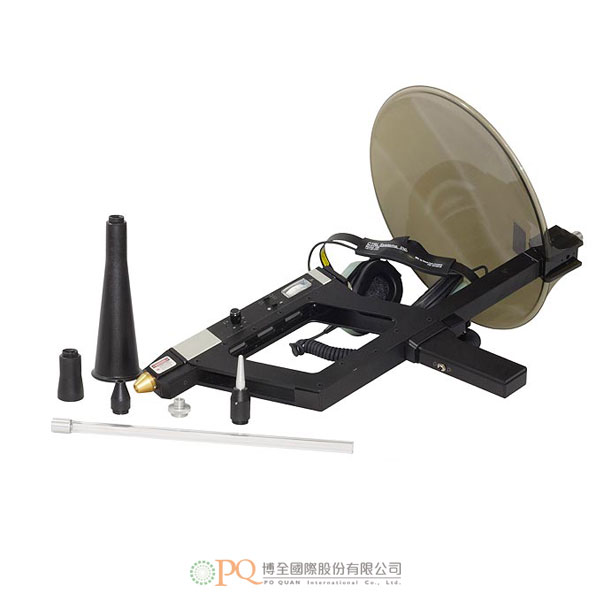

UL101 Electrical Inspection Kit

型號:UL101 Electrical Inspection Kit
固定頻率
比其他拋物線盤多出兩倍的靈敏度
容易調節的靈敏度和增益
能夠將超音波轉換為容易識別的聲音
用於UL101接收器的標準 9 V電池
兩個用於PowerBeam 300的AAA 電池(為雷射筆供電)
能夠在戶外時精確定位的「準心」
能夠在室內進行精確定位的雷射
在不打開窗戶的情況下檢查密封面板
在使用紅外線之前先識別電弧和追蹤電位作為安全預防措施
    • 固定頻率
    • 比其他拋物線盤多出兩倍的靈敏度
    • 容易調節的靈敏度和增益
    • 能夠將超音波轉換為容易識別的聲音
    • 用於UL101接收器的標準 9 V電池
    • 兩個用於PowerBeam 300的AAA 電池(為雷射筆供電)
    • 能夠在戶外時精確定位的「準心」
    • 能夠在室內進行精確定位的雷射
    • 在不打開窗戶的情況下檢查密封面板
    • 在使用紅外線之前先識別電弧和追蹤電位作為安全預防措施

    應用

    • 電氣檢查(輸電和變電站)
    • 電氣檢查(電氣面板、MMC等)
  • PowerBeam 300 Dimensions

    21″ x 17″ x 1.26″ (533 x 432 x 32 mm)
    Dish Diameter : 13″ (330 mm)

    PowerBeam 300 Weight

    Two (2) Standard AAA Alkaline Batteries (for laser)

    PowerBeam 300 Power Supply

    > 20 hours

    Battery Life

    1 Year Parts & Labor

    PowerBeam 300 Warranty

    8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)

    Receiver Dimensions

    4.125″ x 1.26″ x 1.26″ (105 x 32 x 32 mm)
    11.6 oz (330 g)

    Receiver Weight

    Extruded Aluminum, wall thickness .09″ (2.3 mm)

    Housing

    9-Volt Alkaline (> 45 continuous hours use)

    Receiver Power Supply

    21″ x 18″ x 7″ (53 x 18 x 46 cm)

    Kit Shipping Dimensions

    14 lbs (6 kg)

    Kit Shipping Weight

    Up to 300 feet (90 m)

    Distance of Reception

    Minimum Intensity: 10-12 W/m2 (0 dB SPL)

    Sensitivity Threshold

     Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40 kHz

    Working Resonance Frequency

    1.8 – 2.2 kHz @ level 0.7 (or -3 dB SPL)

    Operating Temperature Range

     -4° to +130° F (-20° to +54° C)

    Headset

    Industrial Grade/600-Ohm Impedance
    21-24 dB External Noise Attenuation
    Over or Behind-the-Head (for use with hardhat)

    • Fixed Frequency
    • Double the sensitivity of other parabolic dishes
    • Easily adjustable sensitivity and gain
    • Converts ultrasound to easily recognizable audible sounds
    • Standard 9-Volt Battery for UL101 Receiver
    • Two AAA Batteries for PowerBeam 300 (powers laser pointer)
    • “Rifle Site” to pinpoint when outdoors
    • Laser to pinpoint when indoors
    • Inspect sealed panels without opening or using an expensive window
    • Identify arcing and tracking potential as a safety precaution before using infrared

    Applications

    • Electrical Inspection (Power Transmission and Substations)
    • Electrical Inspection (Electric Panels, MMCs, etc.)
  • PowerBeam 300 Dimensions

    21″ x 17″ x 1.26″ (533 x 432 x 32 mm)
    Dish Diameter : 13″ (330 mm)

    PowerBeam 300 Weight

    Two (2) Standard AAA Alkaline Batteries (for laser)

    PowerBeam 300 Power Supply

    > 20 hours

    Battery Life

    1 Year Parts & Labor

    PowerBeam 300 Warranty

    8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)

    Receiver Dimensions

    4.125″ x 1.26″ x 1.26″ (105 x 32 x 32 mm)
    11.6 oz (330 g)

    Receiver Weight

    Extruded Aluminum, wall thickness .09″ (2.3 mm)

    Housing

    9-Volt Alkaline (> 45 continuous hours use)

    Receiver Power Supply

    21″ x 18″ x 7″ (53 x 18 x 46 cm)

    Kit Shipping Dimensions

    14 lbs (6 kg)

    Kit Shipping Weight

    Up to 300 feet (90 m)

    Distance of Reception

    Minimum Intensity: 10-12 W/m2 (0 dB SPL)

    Sensitivity Threshold

     Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40 kHz

    Working Resonance Frequency

    1.8 – 2.2 kHz @ level 0.7 (or -3 dB SPL)

    Operating Temperature Range

     -4° to +130° F (-20° to +54° C)

    Headset

    Industrial Grade/600-Ohm Impedance
    21-24 dB External Noise Attenuation
    Over or Behind-the-Head (for use with hardhat)
