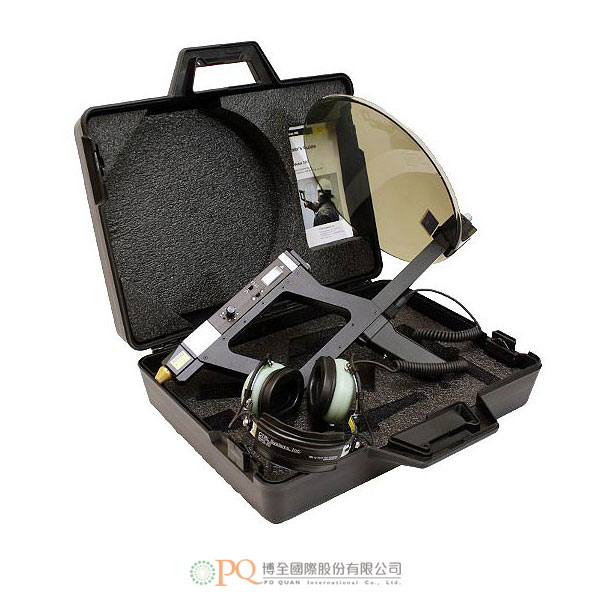

UL101 Corona Detector
UL101 Corona Detector 型號：UL101 Corona Detector比其他拋物線盤多出兩倍的靈敏度
容易調節的靈敏度和增益
能夠將超音波轉換為容易識別的聲音
用於UL101接收器的標準9 V電池
兩個用於PowerBeam 300的AAA電池（為雷射筆供電）
能在戶外時精確定位的「準心」
能在室內使用雷射進行精確定位
-
- 固定頻率
- 比其他拋物線盤多出兩倍的靈敏度
- 容易調節的靈敏度和增益
- 能夠將超音波轉換為容易識別的聲音
- 用於UL101接收器的標準9 V電池
- 兩個用於PowerBeam 300的AAA電池（為雷射筆供電）
- 能在戶外時精確定位的「準心」
- 能在室內使用雷射進行精確定位
應用

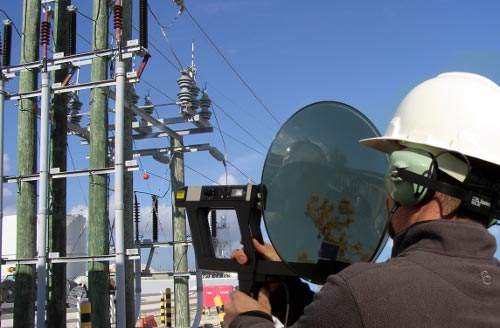

- 電氣檢查（輸電和變電站）
- 尖端放電
- 電弧放電
- 追蹤
-
PowerBeam 300 Dimensions
21″ x 17″ x 1.26″ (533 x 432 x 32 mm)
Dish Diameter : 13″ (330 mm)PowerBeam 300 Weight
Two (2) Standard AAA Alkaline Batteries (for laser)
PowerBeam 300 Power Supply
> 20 hours
Battery Life
1 Year Parts & Labor
PowerBeam 300 Warranty
8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)
Receiver Dimensions
4.125″ x 1.26″ x 1.26″ (105 x 32 x 32 mm)
11.6 oz (330 g)Receiver Weight
Extruded Aluminum, wall thickness .09″ (2.3 mm)
Housing
9-Volt Alkaline (> 45 continuous hours use)
Receiver Power Supply
21″ x 18″ x 7″ (53 x 18 x 46 cm)
Kit Shipping Dimensions
14 lbs (6 kg)
Kit Shipping Weight
Up to 300 feet (90 m)
Distance of Reception
Minimum Intensity: 10-12 W/m2 (0 dB SPL)
Sensitivity Threshold
Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40 kHz
Working Resonance Frequency
1.8 – 2.2 kHz @ level 0.7 (or -3 dB SPL)
Operating Temperature Range
-4° to +130° F (-20° to +54° C)
Headset
Industrial Grade/600-Ohm Impedance
21-24 dB External Noise Attenuation
Over or Behind-the-Head (for use with hardhat) -
- Fixed Frequency
- Double the sensitivity of other parabolic dishes
- Easily adjustable sensitivity and gain
- Converts ultrasound to easily recognizable audible sounds
- Standard 9-Volt Battery for UL101 Receiver
- Two AAA Batteries for PowerBeam 300 (powers laser pointer)
- “Rifle Site” to pinpoint when outdoors
- Laser to pinpoint when indoors
Applications
- Electrical Inspection (Power Transmission and Substations)
- Corona Discharge
- Arcing
- Tracking
-
PowerBeam 300 Dimensions
21″ x 17″ x 1.26″ (533 x 432 x 32 mm)
Dish Diameter : 13″ (330 mm)PowerBeam 300 Weight
Two (2) Standard AAA Alkaline Batteries (for laser)
PowerBeam 300 Power Supply
> 20 hours
Battery Life
1 Year Parts & Labor
PowerBeam 300 Warranty
8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)
Receiver Dimensions
4.125″ x 1.26″ x 1.26″ (105 x 32 x 32 mm)
11.6 oz (330 g)Receiver Weight
Extruded Aluminum, wall thickness .09″ (2.3 mm)
Housing
9-Volt Alkaline (> 45 continuous hours use)
Receiver Power Supply
21″ x 18″ x 7″ (53 x 18 x 46 cm)
Kit Shipping Dimensions
14 lbs (6 kg)
Kit Shipping Weight
Up to 300 feet (90 m)
Distance of Reception
Minimum Intensity: 10-12 W/m2 (0 dB SPL)
Sensitivity Threshold
Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40 kHz
Working Resonance Frequency
1.8 – 2.2 kHz @ level 0.7 (or -3 dB SPL)
Operating Temperature Range
-4° to +130° F (-20° to +54° C)
Headset
Industrial Grade/600-Ohm Impedance
21-24 dB External Noise Attenuation
Over or Behind-the-Head (for use with hardhat)
