三相電錶測試台
Three position meter test station 型號:TB30
Three position, Three phase fully automated 0.02 accuracy class test station for electricity meter testing up to 120A.
-
- New generation of the fully automated Smart Meter Test Bench
- Accuracy class 0.02% or 0.05% with internal reference meter
- Extremely high accuracy class with external reference meter
- Automatic Test Procedures
- Simultaneously testing up to 4 “opened link” electricity meters or 1 “closed link” meter
- Programmed form and special shapes of currents and voltages
- Three-phase current and voltage source in range 0.001A…120A and 0.5…560V
- Signal generation without auxiliary amplifiers
- Compact design size and light weight
- AC single phase power supply operation only
- Calibration Certificate
-

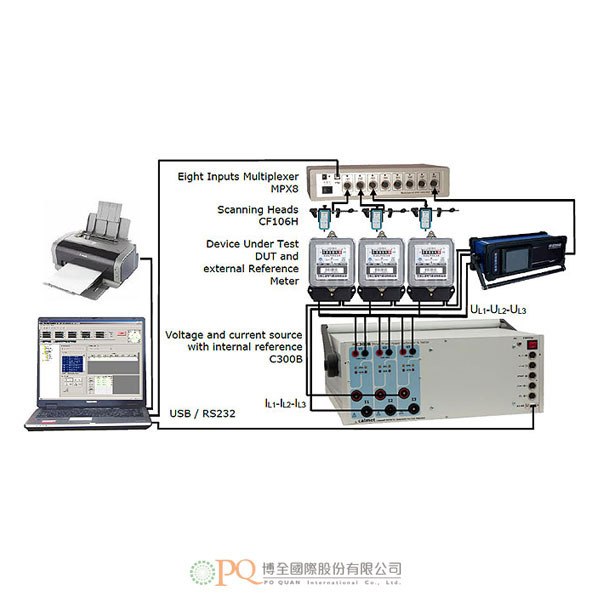

All completed Calmet TB30 Test Bench’s set consists of:
- C300B calibrator class 0.02 or 0.05,
- MPX8 Eight Inputs Multiplexer,
- Mpx8 PC software,
- Calpro 300 Basic + TS software – for automatic test of electric equipment,
- ER30 three position rack for hanging of meter under test
- CF106H photo head with holder for inductive meter and meter with LED,
- set of safety voltage cables (6units),
- set of safety current cables up to 20A (12units),
- set of accessories for safety cables (12units banana plug +12units Cu),
- AKD300 current cables up to 120A (12units) with set (48units) of replaceable terminals
- AD300 sockets adapter,
- power cord,
- USB / RS232 adapter,
- fuse T4A, 250V, 5x20 (2units),
- C091A T3475-001 plug Amphenol for Calibrator inputs,
- operation manual of calibrator and software (3units),
- warranty card,
- calibration certificate.
