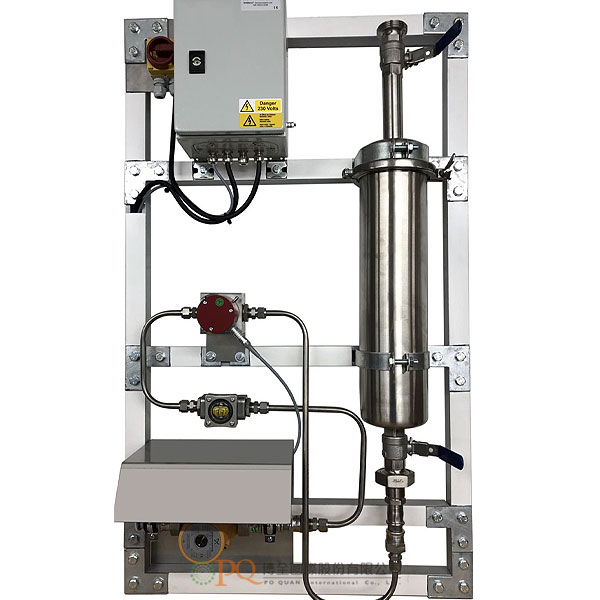

線上變壓器絶緣油淨化暨狀態監測系統
cmc SmartSentry Online Transformer Oil Cleaning Solution and Condition Monitorin
結合Sentinel (ICU)線上乾燥/淨化解決方案與cmc OilQSens® OQ 3000全年全天候監測油質的線上絶緣油狀態監測系統，可確保絶緣油品質及高壓變壓器的運轉，能識別臨界操作狀態、過載，進而預防資產設備損壞。
-
- 結合Sentinel (ICU)線上乾燥/淨化解決方案與cmc OilQSens® OQ 3000全年全天候監測油質的線上絶緣油狀態監測系統，可確保絶緣油品質及高壓變壓器的運轉，能識別臨界操作狀態、過載，進而預防資產設備損壞。
- 可針對客戶的需求進行調整，提供各種數位介面(RS232、LAN、CAN、Profibus …)，可安裝在客戶現有的CMS環境或採用cmc的CMS伺服器，系統可以輕易加裝到既有的高壓變壓器。
- 優點包括：預防昂貴的停機及節省額外的維護成本、採用cmc雲端狀態監測解決方案進行全面的感測器分析 - 為工業4.0作好準備…等。
- 預防昂貴的停機及節省額外的維護成本。
- 採用cmc公司雲端狀態監測解決方案進行全面的感測器分析 - 為工業4.0作好準備！
- 智慧型且經過驗證的工具，可降低風險及提高資產的安全性：
- 採用專利自適應溫度演算法則的溫度補償測量系統。
- 比實際定期的離線油樣分析更安全：線上油品監測可依據需求提供離線實驗室報告。
- 對終端客戶的風險更小。
- 延長換油的間隔時間，第一次的換油指示是依據需求及狀態：
- 降低成本。
- 延長壽命。
- 保護環境。
- 保護資源。
- 最早識別臨界操作狀態（過載、污染......）：
- 更長的運轉時間。
- 及早採取合宜的補救措施，以防止損壞發生。
- 對絕緣油品質進行持續的評估。
- SmartSentry容易安裝在各種不同的高壓變壓器上，並從啟動的第一天開始運作：
- 容易安裝及更換。
- 可回收：更換濾匣，可於維護時更換。
- 不影響氣體或DGA。
- 不限制適用的變壓器大小（可安裝在1MVA - 850MVA的變壓器）。
-
- Sentinel（ICU）已有20年以上開發用於處理變壓器油的吸附劑的經驗，並已開發出不僅能乾燥變壓器油，也能去除老化變壓器油中所存在的酸性、溶解污泥及其它極性化合物的吸附劑。其經驗引領著Sentinel（ICU）成為世界第一且唯一採用其通過驗證且獨家的吸附劑技術，而設計及推出變壓器線上絶緣系統狀態調節裝置。至今，在許多國家，已有超過130套Sentinel (ICU)系統在使用中。我們在歷經18個月以上對其中一些系統進行分析後，得以運用及代表我們的客戶設計及運作一套全面的濕氣管理計劃。
- 從一開始，這些客戶的願望，就是建立一個能滿足以下需求的系統：a）不受老化油中發現的極性污染物影響；b）符合成本效益；c）可靠及d）容易安裝操作。
-
- THE BENEFITS:
- Prevent expensive downtimes and additional maintenance costs.
- Comprehensive sensor analysis with cmc Instruments’ cloud based condition monitoring solution, ready for industry 4.0.
- Smart and proven tool for lower risk and more safety of the asset:
- Temperature-compensated measurement system with patented adaptive temperature algorithm
- More safety compared to the actual periodical offline oil analysis Online oil monitoring enables offline lab reports on demand.
- Less risk for the end customer.
- Extended oil change interval, first indication for an oil exchange on demand, condition based:
- reduce costs,
- increase life time,
- preserve the environment,
- protect resources.
- Earliest identification of critical operation conditions (overload, contamination, …)
- Longer operation time,
- prevent damage by early implementation of appropriate corrective measures,
- continuous evaluation of the insulation oil quality
- SmartSentry is easy to install at all kind of different HV transformer and operates from day 1.
- Ease of installation and replacement
- Recyclable – replacement cartridges are provided on a service exchange basis
- Cannot affect gases or DGA
- No limitation with transformer size (fitted to transformers from 1MVA – 850MVA)
- THE BENEFITS:
-
- THE SMARTSENTRY® SYSTEM Overview：
- The Sentinel (ICU) has been borne out of more than 20 years of development of adsorbents for the processing of transformer oils. This enabled the development of an adsorbent that not only dries the transformer oil, but also removes acidity, dissolved sludge and the other polar compounds that are present in aged transformer oil.
- This experience led to the design and introduction of the Sentinel (ICU) as the worlds first, and only, online, transformer insulation system conditioning unit, utilising this well proven and proprietary adsorbent technology. With now more than 130 Sentinel (ICU) systems in use in a number of countries and with more than a 18 months of analysis on some of these system to draw upon we are able to design and operate a comprehensive moisture management programme on behalf of our clients. From the outset, the desire was to produce a system that was; a) unaffected by the polar contaminants found in aged oils, b) cost effective, c) reliable and d) easy to install and operate.
- THE SMARTSENTRY® SYSTEM Overview：
