通用型紅外線熱像儀核心

SATIR Universal Thermal Imager Core 型號:SATIR UPC Core

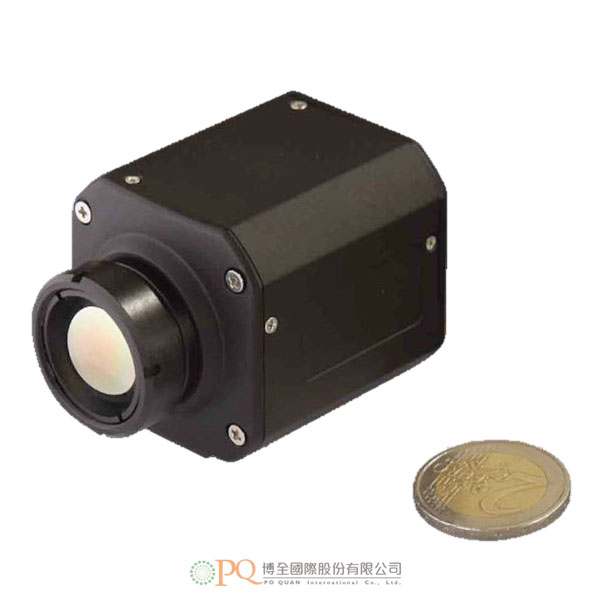

為一款暢銷的極適合OEM、整合系統製程控制業應用的通用型紅外線熱像儀核心,由於極小的尺寸(只稍微比2歐元硬幣大一點)及僅重145g,可輕易安裝在任何製程加工機器,以進行流程監控。
    • 為一款暢銷的極適合OEM、整合系統製程控制業應用的通用型紅外線熱像儀核心,由於極小的尺寸(只稍微比2歐元硬幣大一點)及僅重145g,可輕易安裝在任何製程加工機器,以進行流程監控。
    • 提供多種紅外線偵測器規格與多種選購方案、影像處理及標準視訊輸出,可輕易整合在現有的監視保全攝影機或CCTV系統(無論其為吸頂式或固定式攝影機)、機器人、無人機和車輛中,能在各種天氣條件下進行實時全天候的監控。
    • 熱靈敏度50mK@30℃,F1(紅外線偵測器384x288或640x480像素),能進行精準的溫度測量。
    • 可捕捉微小的溫度變化,清楚地顯示在UPC記錄的影像中。
    • 為一款可高度整合的模組,只需8-12V DC電源,假如附近沒有可用的電源,可以使用電池電源操作。
    • 具有<3W的穩定低功耗設計,能持續長時間運行。
    • 提供廣泛的各種選購鏡頭,可滿足使用者對產業及應用的規格要求,這些鏡頭包括遠攝或廣角鏡頭,可增加用戶的視野(FOV)。選擇使用不同的鏡頭,可增加攝影機的距離或視野寬度。
    • 主要特點:
      • 80x80、160x120、384x288、640x480像素解析度紅外線偵測器。
      • 精準的溫度測量。
      • 測量工具。
      • 輕量小巧的設計。
      • 可依需求提供選購的鏡頭。
      • IP40防護等級。
    • 視野/最小焦距:
      • 80x80:51.6° x 38.7°/0.3m。
      • 160x120:22.4° x 16.8°/0.3m。
      • 384x288:16° x 12°/0.3m。
      • 640x480:48°x36°/0.3m。
    • 熱靈敏度(N.E.T.D):
      • 80x80:100mK@30°C,#F1.0。
      • 160x120:60mK@30°C,#F1.0。
      • 384x288及640x480:50mK@30°C,F1.0。
    • 偵測器類型:非致冷式焦平面陣列微輻射熱測定器。
    • 光譜範圍:8~14µm。
    • 對焦:固定鏡頭。
    • 瞬間視野(IFOV):
      • 80x80:9.5mrad。
      • 160x120:2.4mrad。
      • 384x288:0.89mrad。
      • 640x480:1.3mrad。
    • 溫度測量範圍:-20°C~+150°C,可選購達600°C。
    • 精度:±2%或±2 % rdg.。
    • 測量工具:中心點溫、自動冷/熱點溫、等溫線。
    • 溫度警報:有。
    • 設定控制:語系、調色盤、單位。
    • 測量修正:環境溫度、放射率修正、距離、濕度。
    • 環境:
      • 操作:-15°C~50°C。
      • 存放:-40°C~70°C。
    • 機殼防護等級:IP40。
    • 機身重量:145g(標準型)。
    • 機身體積:43.5x43.5x52.5mm。
    • 介面:
      • 電源輸入:DC 8-12V輸出到攝影機。
      • 視訊輸出:在NTSC@60Hz/PAL@50Hz格式輸出複合視訊。
      • RS232:控制及設定。
    • 選購:
      • 選購鏡頭[2] 80x80:
        • 3.5mm:51.6°x38.7°/0.3m,客製。
      • 選購鏡頭[2] 160x120:
        • 6mm:38.2°x 28.6°。
        • 10.3mm:22.4°x16.8°。
        • 35mm:6.4°x4.8°。
      • 選購鏡頭[2] 384x288:
        • 6.8mm:47°x35°。
        • 10mm:30°x22°。
        • 19mm:16°x12°。
        • 35mm:9°x7°。
      • 選購鏡頭[2] 640x480:
        • 9mm:73°x53.5°。
        • 13mm:48°x36°。
        • 25mm:24°x18°。
    • 詳細規格、配件、軟體及選購,歡迎洽詢。
    • The SATIR UPC Core is the bestselling IR temperature measurement camera for the Process & Control Industry for several reasons. The first being its size, it is very small, with only being slightly bigger than a 2 euro coin and it weighs 145g. This makes the UPC Core a very adaptable product allowing it to fit easily into any processing machine for industry monitoring.
    • SATIR Universal Purpose Core (UPC) is an uncooled longwave thermal imager core which has been designed to be a highly modular product for the OEMs & integrator market.
    • Due to its compact structure, it can be integrated into existing surveillance systems easily whether it’s a dome or fixed camera. Real-time 24-hour monitoring can then be carried out in all weather.
    • With the multiple optional solutions, image processing and the standard video output, UPC can be easily integrated in the existing surveillance & security cameras or CCTV systems, robots, drones, UAVs and vehicles.
    • The UPC Core can have a variety of IR Detectors available, that allows the user to tailor the camera’s specifications to their application or industry.
    • It has accurate temperature measurement as the UPC Core has a thermal sensitivity of 50mK@30°c, F1. (based on 384x288,640x480 IR detector).
    • It can capture slight temperature changes which are clearly displayed in the images the UPC captures.
    • The UPC is a highly integratable module, it only requires 8-12V DC power supply which means it can be run off a battery if there is no power supply available nearby.
    • The UPC has a stable, low consumption of power less than 3W which means the module will operate for a long duration.
    • There are a wide range of optional lenses available that make the UPC core a tailor-made product based on the user’s industry and applications. These lenses include telephoto or wide-angle lenses that will increase the users field of view (FOV).
    • Different lenses can be selected to increase the camera distance or width of view. When buying the UPC Core, you will receive a power cable & adaptor, calibration certificate, and a standard cable.
    • Features:
      • 80x80, 160x120, 384x288, 640x480 IR Detector
      • Accurate Temperature Measurement
      • Measurement Tools
      • Compact, Lightweight Design
      • Optional Lenses available on request
      • IP40
    • FOV/Minimum Focus Distance: 51.6°x38.7°/O.3m、22.4°x16.8°/0.3m、16°x12°/0.3m、48°x36°/0.3m
    • Thermal Sensitivity (N.E.T.D): 100mK@30°C.#F1.0、60mK@30°C,#F1.0、50mK@30°C, F1.0、50mK@30°C, F1.0.
    • Detector Type: Focal Plane Array (FPA), uncooled microbolometer
    • Spectral Range: 8-14um
    • Focus Mechanism: Fixed Lens
    • I.F.O.V: 9.5mrad、2.4mrad、0.89mrad、1.3mrad
    • Temperature Measurement Range: -20°C+150°C (-4°F TO 482°F, UP TO 600°C/1112°F (Optional)
    • Accuracy: ±2% Or ±2°% Of Reading
    • Measurement Tools: Centre Spot, Auto Hot/Cold spot, Isotherm
    • Temperature Alarms: Yes
    • Set-up Controls: Language/Palettes/Units
    • Measurement Corrections: Ambient Temperature/Emissivity Correction/Distance/Humidity
    • Environmental:
      • Operating: -15°C to 50°C (5°F to 122°F)
      • Storage: -40°C to 70°C (-104°F to +158°F)
      • Humidity: 95% relative humidity, non-condensing
    • Encapsulation: IP40
    • Physical Characteristics (Camera Body):
      • Weight: 145g (Standard Unit)
      • Dimensions: 43.5mmx43.5mmx52.5mm
    • Interfaces:
      • Power Input: DC 8-12V Output to camera
      • Video Output: Output the composite video in NTSC@60Hz/PAL@50Hz format
      • RS232: Controlling and setting
    • Optional Parts:
      • Optional Lens [2] 80x80:
        • 3.5mm: 51.6°x38.7°/0.3m Customised
      • Optional Lens [2] 160x120:
        • 6mm:38.2°x 28.6°
        • 10.3mm: 22.4°x16.8°
        • 35mm: 6.4°x4.8°
      • Optional Lens[2] 384x288:
        • 6.8mm:47°x35°
        • 10mm: 30°x22°
        • 19mm: 16°x12°
        • 35mm: 9°x7°
      • Optional Lens [2] 640x480:
        • 9mm: 73°x53.5°
        • 13mm: 48°x36°
        • 25mm: 24°x18°
    • Please feel free to contact for detailed specifications, accessories, software and options.
