高性能紅外線熱像儀核心

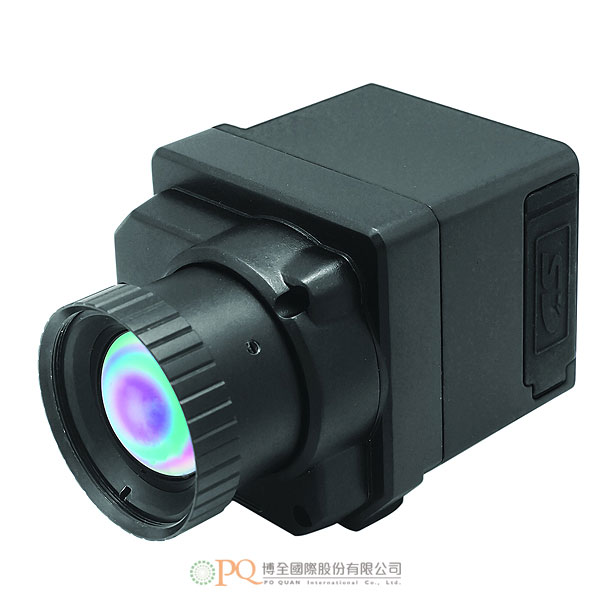

SATIR High Performance Thermal Imager Core 型號：SATIR JKX1024
具有1024x768像素解析度紅外線偵測器，可產生786,432個像素，為SATIR最高性能的紅外線熱像儀核心。
-
- 具有1024x768像素解析度紅外線偵測器，可產生786,432個像素，為SATIR最高性能的紅外線熱像儀核心。
- 熱靈敏度0.05°C@30°C，可輕易捕捉任何微小的溫度變化及進行精準的溫度測量。
- 溫度測量範圍-20°～+150°C，測量精度±2°C或±2% rdg。溫度讀值是以先進的轉換演算法則，轉換為熱影像。
- 採用能降低整體重量的最新材料技術例如碳纖維外殼及鎂合金元件，僅重300g（含鏡頭），可安裝在無人機上或輕易整合至其它外殼內，用於保全、森林防火、電力系統監控及其它許多應用領域。
- 可在SD記憶卡上儲存錄製的包含溫度數據的串流影片，使用者可以播放串流影片及直接分析，以產生對應的紅外線分析報告。
- 標準配備鏡頭28°x19°、SD記憶卡、讀卡機、操作手冊、保固書及校正證明。
- 主要特點：
- 1024x768像素解析度非致冷式紅外線偵測器。
- 高熱靈敏度0.05°C@30°C。
- 可儲存包含溫度數據的紅外線串流影片。
- 在攝影機上播放影片。
- 標準PAL/NTSC視訊格式。
- 輕量小巧。
- 高性價比。
- 可選購GPS定位功能。
-
- 偵測器類型：非致冷式焦平面陣列微輻射熱測定器。
- 偵測器解析度：1024x768像素。
- 熱靈敏度：0.05°C @ 30°C。
- 影像更新率：50Hz / 60 Hz。
- 對焦：固定對焦（距離10m外，免對焦）。
- 數位變焦：2倍、4倍、8倍、16倍。
- 光譜範圍：7~14um。
- 視野：30mm，28°x 19°。
- 空間解析度（瞬間視野）：0.47mrad。
- 溫度範圍：-20°〜+ 150°C。
- 精度：±2°C或2% rdg.。
- 最高溫度自動追踪：自動捕捉最高溫度及實時顯示特定數據。
- GPS位置：GPS資料與紅外線熱影像資料，可在基站的軟體中顯示。紅外線熱影像資料，可由對應的GPS資料調出。
- 複合視訊：NTSC/PAL複合視訊。
- 調色盤：白熱、黑熱、鐵、彩虹。
- 儲存格式：（標準）IRV視訊、IMA圖像（可選購：AVI視訊、JPEG圖像）。
- 機殼防護等級：IP54。
- 詳細規格、配件、軟體及選購，歡迎洽詢。
-
- The SATIR JKX1024 is a High Performance Thermal Core that delivers excellent image quality due to the 786,432 pixels that is generated by the 1024x768 IR detector it comes equipped with ensuring excellent image performance.
- The JKX1024 offers accurate temperature measurement as it has a thermal sensitivity of 0.05°C@30°C it can capture any slight temperature changes easily and clearly.
- It can read temperatures from -20°~ +150°C with industry standard of measurement accuracy of ±2% or ±2°% of Reading. Temperature readings are then converted into thermal images by applying an advanced transformation algorithm.
- The JKX1024 has been designed to meet the requirements of different industries.
- It has a small, compact design that has been developed from the latest materials technology such as carbon fiber shell and magnesium alloy component which dramatically reduces the overall weight of the products. The JKX1024 weighs only 300g (including the lens).
- This makes the JKX1024 very modular allowing it to be fitted to drones or easily integrates into other housings for applications such security, forest fire prevention, power system monitoring and many more application fields.
- The JKX1024 Infrared core can record and store the video stream with temperature data on the SD memory card. Users can playback the video stream and directly analysis and process the video to generate the corresponding infrared analysis reports.
- When buying the JKX1024, you will receive the standard lens (28°x19°), SD Card, card reader, operation manual, warranty and the calibration certificate.
- Features:
- Uncooled IR 1024x768 detector
- High Thermal Sensitivity of 0.05°C@30°C
- Save Infrared Video Stream with Temperature Data
- Video Playback on Camera
- Standard PAL/NTSC video format
- Lightweight & Compact Infared Core
- High performance - Cost ratio
- GPS Positoning Optional
-
- Detector Type: Focal Plane Array (FPA) Uncooled Microbolometer
- Detector Resolution: 1024x768
- Thermal Sensitivity: 0.05°C@30°C
- Image Frequency: 50Hz/60 Hz
- Focus: Fixed Focus (10m away free focus)
- Digital Zoom: 2x,4x,8x,16x
- Spectral Zoom: 7~14um
- Field of View: 30mm, 28°X 19°
- Spatial Resolution (IFOV): 0.47mrad
- Temperature Range: -20°~ +150°C
- Accuracy: ±2°C or 2% of reading
- Max Temperature Automatic Tracking: Automatically capturing max temperature & showing specific data in display in real-time
- GPS Position: GPS information & IR image data can be played in the software of base-station. IR image data could be retrieved by corresponding GPS information
- Composite Video: NTSC/PAL Composite Video
- Palette: White Hot/Black Hot/ Iron/ Rainbow
- Storage Format: Standard: IRV Video, IMA Image (Optional:AVI Video, JPEG Image)
- Encapsulation: IP54
- Please feel free to contact for detailed specifications, accessories, software and options.
