獸醫|醫療應用高精度紅外線熱像儀

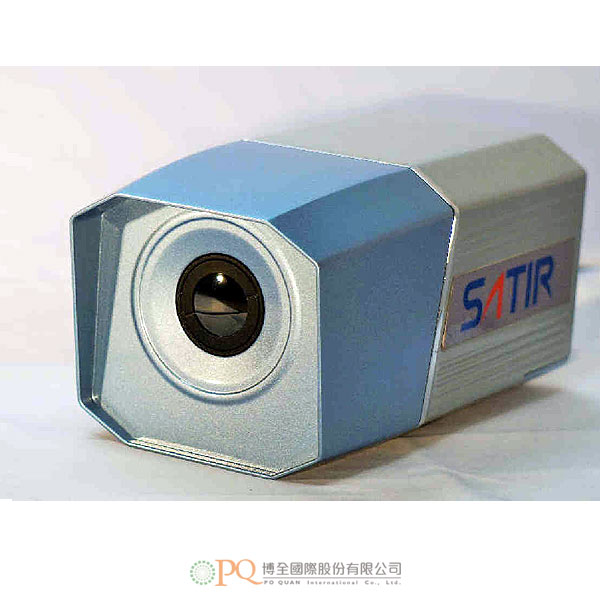

SATIR IR Camera suitable for Veterinary/Medical Applications 型號：SATIR CK350-M
為一款特別適用於獸醫/醫療應用領域的紅外線熱像儀。
-
- 為一款特別適用於獸醫/醫療應用領域的紅外線熱像儀。
- 具有384x288像素解析度紅外線偵測器，可產生110,592個像素，能提供清晰詳細的影像。
- 具有特殊設計的光學系統，尤適用於動物醫療診斷或人體發燒篩檢。
- 紅外線熱影像影片及影像溫度測量範圍0°C～+60°C，測量精度±0.5°C，極適合獸醫實務應用。
- 提供多種調色盤模式，可清楚顯示詳細的熱影像。
- 可搭配多款套裝軟體使用，提供一系列完整的測量工具，包括線溫、點溫、趨勢及框溫分析。軟體可設定警報，以警示高溫情況。
- 由於具有很高的熱靈敏度，可偵測微小的溫差，而且屬於非侵入性，對動物幾乎不造成壓力，可以讓動物快速舒服的進行篩檢，因此，普受獸醫歡迎，是一款理想的獸醫應用紅外線熱像儀，獸醫可避免在某些複雜的診斷過程中曝露於危險的化學製劑及程序中。
- 可輕易安裝在三腳架上，以適應多樣化的使用環境 – 從農場到診所。
- 標準配備AC轉接器、電源線、軟體、校正證明、USB導線、機殼帶。
- 主要特點：
- 384x288像素紅外線偵測器。
- 特殊設計的醫療診斷專用光學系統。
- 強大的分析工具。
- 醫療診斷分析專用操作軟體。
- 可安裝在三腳架上。
- 可搭配多款套裝軟體使用（參考規格說明）。
-
- 解析度：384x288像素。
- 熱靈敏度（N.E.T.D）：0.05°C ≤ 30°C。
- 偵測器類型：非致冷式焦平面陣列微輻射熱測定器。
- 光譜範圍：8～14µm。
- 視野（FOV）：24° X 18° / 20mm。
- 空間解析度：1.09 mrad。
- 調色盤：灰、鐵、彩虹及負片效果。
- USB傳輸：有。
- 電源：12VDC。
- 功耗：≤ 5W。
- 機殼防護等級：IP54。
- 耐振動：25G。
- 耐撞擊：2G。
- 軟體：
- 標準軟體：SatirReport USB。
- 測量範圍：0°C～+60°C。
- 測量精度：±0.5°C。
- 測量工具：點溫分析、冷/熱點溫、線溫分析、等溫線區域、框溫分析、多邊形區域、測量報告、趨勢分析、直方圖、調色盤設定。
- 測量參數設定：放射率、環境溫度、距離、相對濕度。
- 影像調整：自動/手動。
- 過高溫度警報：有。
- 系統特點：
- 溫度警報信號輸出及記錄：有。
- 測量報告自動產生：有。
- 在個人電腦上的儲存功能：
- 紅外線影像實時播放錄製：有。
- 紅外線影像離線分析：有。
- 影片錄製及影像記錄：有。
- 文字註釋：有。
- 建議的個人電腦規格：Windows 7或更新的作業系統、2GHz雙核心CPU或以上、2GB RAM或以上、支援100MB或以上的網路介面卡。
- 詳細規格、配件、軟體及選購，歡迎洽詢。
-
- The SATIR CK350-M is an infrared thermal camera that is suitable for veterinary medical applications.
- The SATIR CK350-M has a 384x288 IR detector that generates 110592 pixels, which will give the user a clear, detailed image.
- The CK350-M has a specially designed optical system for medical diagnosis in animals or for fever detection in humans.
- The thermal video and images have a temperature measurement range of 0°C ~ +60°C and measurement accuracy of ±0.5°C which makes it suitable for use in veterinary practice.
- There are various palette modes that can display the detailed thermal images.
- There are multiple software packages available with the CK359-M, that provide a full range of measurement tools, this includes line, spot, trend & area analysis.
- The software allows the users to set an alarm, to alert them of a high temperature.
- The SATIR CK350-M is an ideal thermal imaging solution for veterinary applications, as it’s high thermal sensitivity can detect slight temperature differences. It is becoming very popular with vets as it is non-invasive which causes little stress to the animals. It allows animals to be screened comfortably and quickly. It prevents veterinary staff being expose to dangerous chemicals and procedures that can be part of some complex diagnostic procedures.
- It can be easily mounted to a tripod if it needs to be used in different environments from farms to clinics.
- When buying the SATIR CK350-M you will receive a AC adaptor, power cord, manual, software, calibration certificate, case belt and a USB Cable
- Features:
- 384×288 IR Detector
- Specially designed optical system for medical diagnosis
- Powerful analysis tools
- Operation software optimised for medical diagnosis & analysis
- Suitable for tripod mounting
- Multiple Software Packages Available
-
- Resolution: 384x288
- Thermal Sensitivity (N.E.T.D): 0.05°C ≤ 30°C
- Detector Type: FPA Uncooled Microbolometer
- Spectral Range: 8-14µm
- Field of View (FOV): 24° X 18° / 20mm
- Spatial Resolution: 1.09 mrad
- Palette: Grey, Iron, Rainbow & inverts
- USB Transmission: Yes
- Power Requirements: 12VDC
- Power Consumption: ≤ 5W
- Encapsulation: IP54
- Shock Resistance: 25G
- Vibration Resistance: 2G
- Software:
- Standard Software: SatirReport USB
- Measuring Range: 0°C ~ +60°C
- Measuring Accuracy: ±0.5°C
- Measurement Tools: Spot Analysis, Hot/Cold Capture, line analysis, isotherm area, area analysis, polygon area, measuring report, trend analysis, histogram, palette settings
- Measuring Parameter settings: Emissivity, Ambient Temperature, Distance, relative humidity
- Image Adjustment: Auto/Manual
- Over – temperature Alarm: Yes
- System Features:
- Temperature Alarm signal output & record: Yes
- Measuring Report automatically generate: Yes
- Storage Function on PC:
- IR Image Real-time Playback/Recording: Yes
- IR image offline analysis: Yes
- Video & Image recording: Yes
- Text annotation: Yes
- Recommended PC Configuration: Windows 7 OS or later, 2GHz dual-core CPU or above, 2G RAM or above 100M or more NICS,
- Please feel free to contact for detailed specifications, accessories, software and options.
