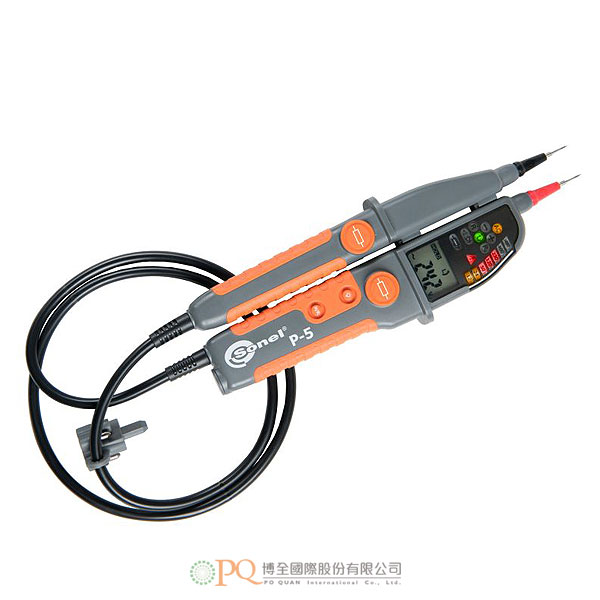

P-5

Main functions and attributes of the P-line instruments:

• automatic voltage test up to 1000 V AC/DC,
• optical indication by a LED bar and additional LCD display,
• sound indication when dangerous voltage levels of 50 V AC and 120 V DC are exceeded,
• RCD trip test with switchable load,
• automatic continuity test upon connection to the object,
• 2-pole test of phase rotation direction,
• single-pole indication of 100 V presence,
• resistance measurement up to 1999 Ω,
• HOLD function for freezing the measurement results,
• robust, two-component housing protecting from mechanical damages and impacts,
• integrated torch light and backlit display for tests in poorly lit areas,
• IP65 ingress protection guarantees protection against dust and water,
• safety provided by measuring class compliant with CAT IV 600 V and CAT III 1000 V.

AC and DC voltage measurements:

• indication on the analog bargraph: 12, 24, 50, 120, 230, 400, ≥690 V,
• displaying on the backlighted LCD up to 1000 V,
• determination of alternating voltage or direct voltage polarization.

Continuity test:

• indication for resistance R ≤ 400 kΩ
• optical and acoustic indication

Resistance measurements:

• measurement range up to 1999 Ω

Phase sequence test:

• phase sequence indication for voltage U> 100 V.

Single-pole phase test:

• optical and acoustic indication for voltage U> 100 V.

RCD trip test:

• RCD test for IΔn ≤30 mA.

Display: backlight LCD 3½ digits, counts 1999.
HOLD function: HOLD button to freeze the result on the diode line and LCD display.
Operating frequency range: 16..400 Hz.
Measurement category in acc. to EN 61010-1: CAT III 1000 V, IV 600 V.
Ingress protection in acc. to EN 60529: IP65.
Type of insulation acc. to EN 61010-1: double, class II.
Power supply: 2 x LR03 AAA 1,5 V (recommended alkaline cells).
Working / storage temperature: -15..+55°C / -20..+70°C.
Dimensions: 275 x 82 x 36 mm.
Weight without batteries: 267 g.
Measuring tips: Ø2 mm/ Ø 4 mm/dł. 4mm (GS38).
Backlight measuring place: integrated torch.
Standard compliance: EN 61326-1, EN 61326-2-2, EN 61010-1, EN 61243-3.
