MUX RECIRCULATION微流體循環閥
MUX RECIRCULATION MICROFLUIDIC RECIRCULATION VALVE 型號：MUX RECIRCULATION 6/26個接口/2個位置的微流體循環閥，旨在更容易和更可靠的進行長時間的實驗
- 溶液再循環
進行長期單向流動的再循環 - 精確的體積灌注
自動將樣品灌注您的流體管路 - 工作流程微流控自動化
通過序列編程節省時間
-

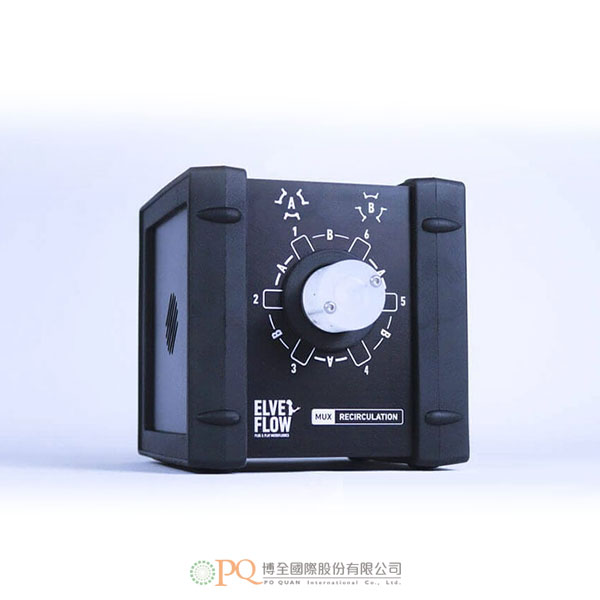

微流體循環閥是一個6個接口/2個位置的控制閥。
當它與OB1 MKIII+壓力驅動的流量控制器結合使用時，可以:- 在一個閉合的循環系統中對溶液進行再循環。
- 在液流中灌注小體積的樣品
- 長時間的自動執行循環實驗
- + 實驗的多功能性與它的高生物和化學兼容性有關（PCTFE - PTFE材料）。

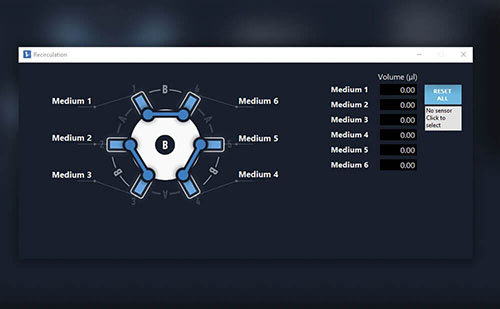

微流體循環閥有6個輸入和2種可互換的配置，如圖所示：每個輸入端都與一個相鄰的輸出端相連，根據配置的不同，可以在右邊或左邊。
更多的應用資訊，請參考連結：https://www.elveflow.com/microfluidic-products/microfluidics-flow-control-systems/mux-recirculation/#tab-applications
-
Category Parameter Value Performances Port to port switching time (ms) 180 ms Max recommended pressure 7 bar Internal diameter 0.5 mm Internal volume(1) 2.5µL Carryover volume(2) 0.5 µL Dead volume (3) None Wetted materials PCTFE, PTFE Number or ports 6 Number of positions 2 Operating temperature 5-40°C Operating Humidity 20-70% non condensing Footnote:
- Volume inside the system from entrance to exit
- Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
- Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out
-
The MUX Recirculation 6/2 valve is a microfluidic 6-ports / 2-positions valve. The MUX Recirculation 6/2 valve,
when combined with the OB1 MKIII+ pressure-driven flow controller, allows to:- Recirculate a fluid in a closed loop
- Inject small volume samples in a liquid stream
- Run & automate long-term experiments!
- + Experimental versatility with its high bio- & chemical compatibility (PCTFE – PTFE material)
The MUX Recirculation valve has 6 inputs and 2 interchangeable configurations shown on the
images below. Each input is connected to a neighbour output, either on the right or the left
depending on the configuration.Ｍore application information, please refer to the link: https://www.elveflow.com/microfluidic-products/microfluidics-flow-control-systems/mux-recirculation/#tab-applications
-
Category Parameter Value Performances Port to port switching time (ms) 180 ms Max recommended pressure 7 bar Internal diameter 0.5 mm Internal volume(1) 2.5µL Carryover volume(2) 0.5 µL Dead volume (3) None Wetted materials PCTFE, PTFE Number or ports 6 Number of positions 2 Operating temperature 5-40°C Operating Humidity 20-70% non condensing Footnote:
- Volume inside the system from entrance to exit
- Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
- Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out
