| NEW 12/1 valve | ||
| Category | Parameter | Value |
| Performances | Port to port switching time (ms) | 156 ms |
| Max recommended pressure | 7 bar | |
| Internal diameter | 0.5 mm | |
| Internal volume(1) | 3.5 µL | |
| Carryover volume(2) | 1.7 µL | |
| Dead volume (3) | None | |
| Wetted materials | PCTFE, PTFE | |
| Number or ports | 13 | |
| Number of positions | 12 | |
| Operating temperature | 5-40°C | |
| Operating Humidity | 20-70% noncondensing |
基礎研究設備 > 微流體流量控制器

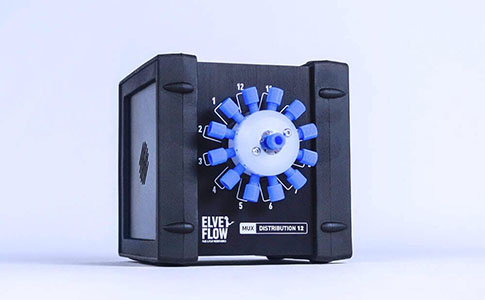

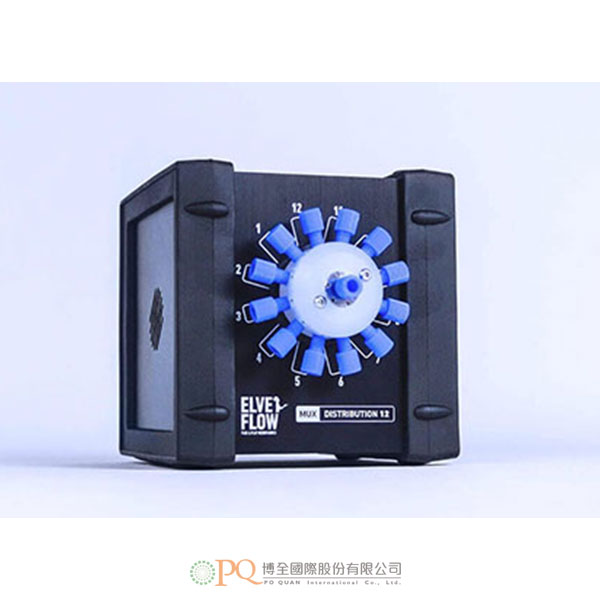

MUX DISTRIBUTION 微流體分配閥
MICROFLUIDIC DISTRIBUTION VALVE 型號：MUX DISTRIBUTION 12新型12/1旋轉雙向微流控閥，旨在便於執行快速介質或流體切換的旋轉閥
- 序列式微流控注液
快速交換您的生物介質或化學溶液 - 工作流程微流控自動化
通過序列編程節省時間 - 旋轉式選擇閥
在多達12種溶液之間切換 - 將溶液灌注到微流控晶片中
將1個樣品注入12個輸出口或將12個樣品注入1個輸出口
-
用新型12/1旋轉雙向微流控閥進行微流控順序注射。與OB1 MK3+壓力控制器相結合，它將使您在微流控實驗中實現自動注射，對灌注實驗進行編程，依次供應不同的試劑以及更多的應用。
優點
微流體分配閥MUX Distributor 12是一個雙向的旋轉切換閥，
該閥被用作選擇器來順序的把一種溶液樣品注入到12個不同的通路中
或者把12個不同的溶液樣品注入到同一個通道內。- 切換時間快速
- 工作流程微流控自動化
- 平穩的切換：不中斷流動
- 易於設置和操作（隨插隨用的軟體+標準流體連接）
雙向13個接口/12個位置，從12個不同的樣品中順序注入1個輸出/輸入口
- 靈活性：13個閥門接口
- 易於設置：標準的¼-28流體接頭
- 高化學穩定性
- 最小內部容量：3.5微升
- 無死體積（dead volume）
- 切換時間（平均）：156 ms
- 材質 : PCTFE, PTFE

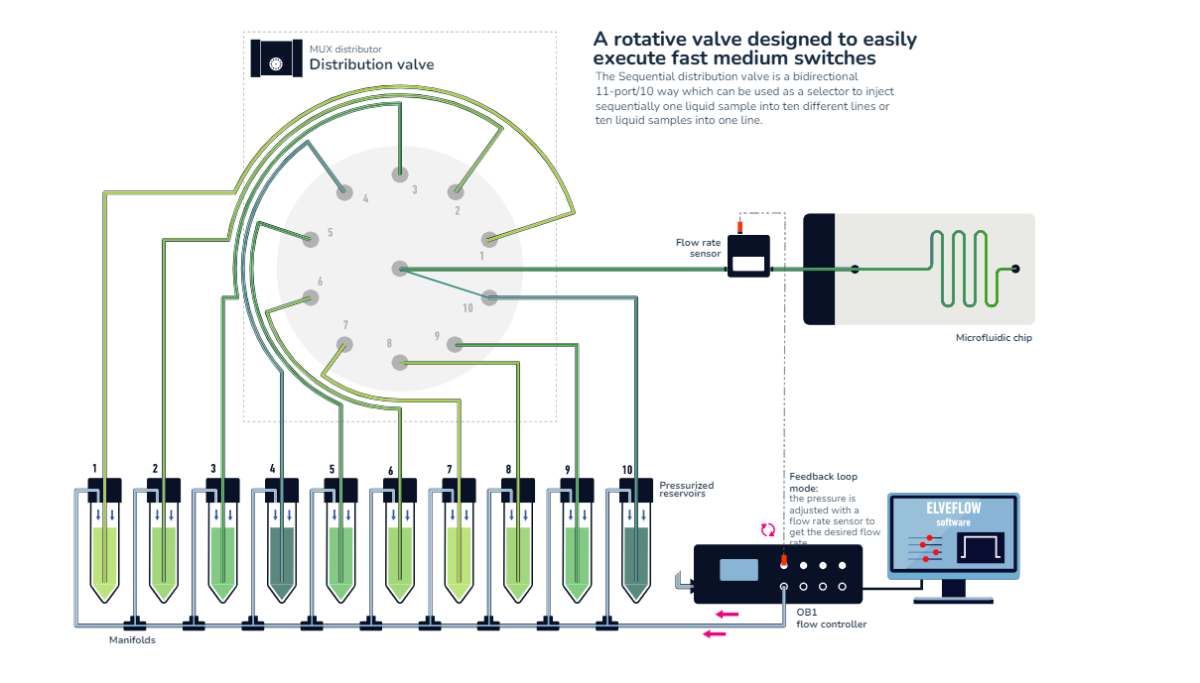

微流體分配閥MUX Distributor 12應用連接示範圖
更多的應用資訊，請參考連結：https://www.elveflow.com/microfluidic-products/microfluidics-flow
-control-systems/mux-distrib/#tab-applications -
- Volume inside the system from entrance to exit
- Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
- Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out
-
Perform microfluidic sequential injection with the New 12/1 Rotary Selector Bidirectional Valve. Combined with the OB1 MK3+ pressure controller, it will allow you to automate injection in microfluidic experiments, program perfusion experiments, sequentially supply different reagents and many more applications.
Benefits
Several solutions from one outlet or one feed directed into different outlets.
Use the MUX Distrib to sequentially inject up 12 different solutions into
one microfluidic line for sample collections or parallel experiments.- Low internal volume
- Fast switching time
- Workflow microfluidic automation
- Smooth switches: no disruption of the flow
- Easy setup and operation (plug and play software + standard fluidic connection)
Bidirectional 13 ports/ 12 positions sequential injection from
12 different samples into 1 output/input- Valve flexibility: 13 ports
- Easy setup: standard ¼-28 fluidic fittings

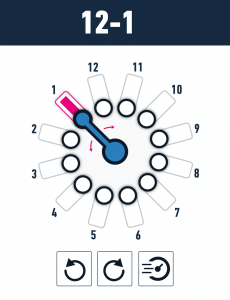

- Possibility to chose the sense of rotation
- High chemical compatibility
- Lowest internal volume: 3.5 µL
- No dead volume
- Switching time (average): 156 ms
- Wetted materials: PCTFE, PTFE
EXAMPLE: FAST MEDIUM SWITCHES
Ｍore application information, please refer to the link: https://www.elveflow.com/microfluidic-products/microfluidics-flow-control-systems/mux-distrib/#tab-applications
-
NEW 12/1 valve Category Parameter Value Performances Port to port switching time (ms) 156 ms Max recommended pressure 7 bar Internal diameter 0.5 mm Internal volume(1) 3.5 µL Carryover volume(2) 1.7 µL Dead volume (3) None Wetted materials PCTFE, PTFE Number or ports 13 Number of positions 12 Operating temperature 5-40°C Operating Humidity 20-70% noncondensing - Volume inside the system from entrance to exit
- Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
- Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out
