經濟型數位式測力計

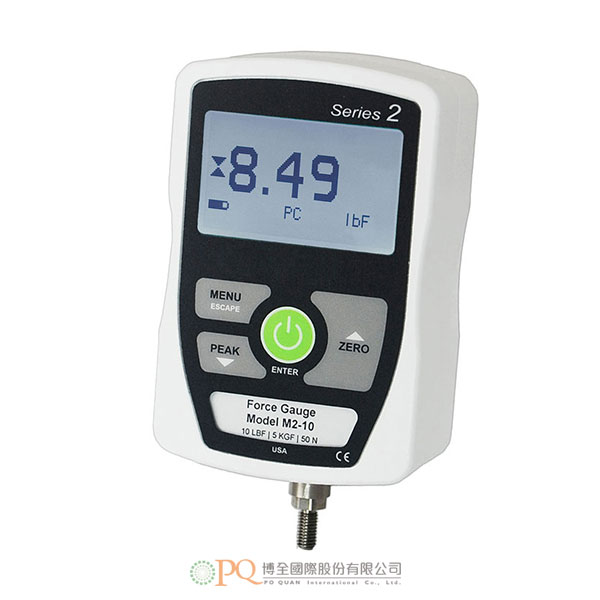

Series-2 Economical Digital Force Gauge 型號：M2-2|M2-5|M2-10|M2-20|M2-50|M2-100|M2-200|M2-500- CHECK LINE Series 2數位式測力計的設計，適用於最高達到500 lbf(2500 N)的基礎張力及壓縮力測試應用。
- 測力計的±0.5%精度及500 Hz取樣率，能可靠地得到張力與壓縮力峰值讀值。
- 背光圖形LCD，顯示電流、張力峰值或壓縮力峰值讀值。
- 測力計具有過載保護到最大荷重的150%。
- 符合人體工學、可顛倒反向的鋁外殼，可手持使用或以夾具固定，夠強固，適用於生產與實驗室環境。
-
- CHECK LINE Series 2數位式測力計的設計，適用於最高達到500 lbf(2500 N)的基本張力及壓縮力測試應用。
- 峰值張力與壓縮力讀值，憑藉著測力計的±0.5%精度與500Hz取樣率，能可靠地取得。
- 背光圖形LCD顯示幕，可顯示電流、峰值張力或峰值壓縮力讀值。
- 測力計具有過載保護到最大荷重的150%。
- 符合人體工學及可顛倒轉向的鋁殼設計，可供手持使用或以夾具固定，足夠強固，適用於生產與實驗室環境。
- 特點：
- 計算峰值張力與壓縮力數值。
- 配備合格證明，可選購附帶數據的NIST校正證明。
- 500 Hz取樣率。
- 電源：使用可充電電池或AC電源轉接器。
- 提供3個可選擇的測量單位。
- 可設定的預設測量單位與模式。
- 大型背光圖形顯示幕，可自動調整亮度。
- 可顛倒轉向的鋁外殼 - 可變換荷重元的方向。
-
機型
最大荷重力
解析度
機型
最大荷重力
解析度
M2-2
2 lbF
1 kgF
10 N0.002 lbF
0.001 kgF
0.01 NM2-50
50 lbF
25 kgF
250 N0.05 lbF
0.02 kgF
0.2 NM2-5
5 lbF
2.5 kgF
25 N0.005 lbF
0.002 kgF
0.02 NM2-100
100 lbF
50 kgF
500 N0.1 lbF
0.05 kgF
0.5 NM2-10
10 lbF
5 kgF
50 N0.01 lbF
0.005 kgF
0.05 NM2-200
200 lbF
100 kgF
1000 N0.2 lbF
0.1 kgF
1 NM2-20
20 lbF
10 kgF
100 N0.02 lbF
0.01 kgF
0.2 NM2-500
500 lbF
250 kgF
2500 N0.5 lbF
0.2 kgF
2 N精度
±0.5% f.s.
取樣率
500 Hz
電源
使用AC或可充電電池，有多段低電池電量指示。
電池續航力
打開背光：最長24小時的連續使用。
關閉背光：最長92小時的連續使用。測量單位
lbF、kgF、N
過載保護
150% f.s. (在110%及以上時，螢幕顯示"OVER")
標準配件
內建可充電電池、AC轉接充電器、快速開始使用指南、說明光碟、合格證明
- 詳細規格、配件、軟體及選購，歡迎洽詢。
-
- Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2500 N).
- Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate.
- A backlit graphic LCD displays the current, peak tension, or peak compression reading.
The gauges are overload protected to 150% of capacity. - An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments.
- Features:
- Calculates peak tension and compression values
- Supplied with certificate of conformance. NIST calibration cert with data optional ($50 - pn: CERT)
- 500 Hz sampling rate
- Powered by rechargeable battery or AC adapter
- 3 selectable units of measurement
- Configurable default measurement unit and mode
- Large, backlit graphic display with auto-dimming
- Reversible housing for alternate load cell orientation
-
Model
Capacity
Resolution
Model
Capacity
Resolution
M2-2
2 lbF
1 kgF
10 N0.002 lbF
0.001 kgF
0.01 NM2-50
50 lbF
25 kgF
250 N0.05 lbF
0.02 kgF
0.2 NM2-5
5 lbF
2.5 kgF
25 N0.005 lbF
0.002 kgF
0.02 NM2-100
100 lbF
50 kgF
500 N0.1 lbF
0.05 kgF
0.5 NM2-10
10 lbF
5 kgF
50 N0.01 lbF
0.005 kgF
0.05 NM2-200
200 lbF
100 kgF
1000 N0.2 lbF
0.1 kgF
1 NM2-20
20 lbF
10 kgF
100 N0.02 lbF
0.01 kgF
0.2 NM2-500
500 lbF
250 kgF
2500 N0.5 lbF
0.2 kgF
2 NAccuracy
±0.5% of full scale
Sampling Rate
500 Hz
Power
AC or rechargeable battery, with multi-step low battery indicator
Battery Life
Backlight on: up to 24 hours of continuous use
Backlight off: up to 92 hours of continuous useMeasurement Units
lbF, kgF, N
Safe Overload
150% of full scale (display shows "OVER" at 110% and above)
Included Accessories
Built-in rechargeable battery, AC adapter charger, quick-start guide, resource CD, certificate of conformance
- Please feel free to contact for detailed specifications, accessories, software and options.
