GUD-1

Mystery solved with ultrasounds!

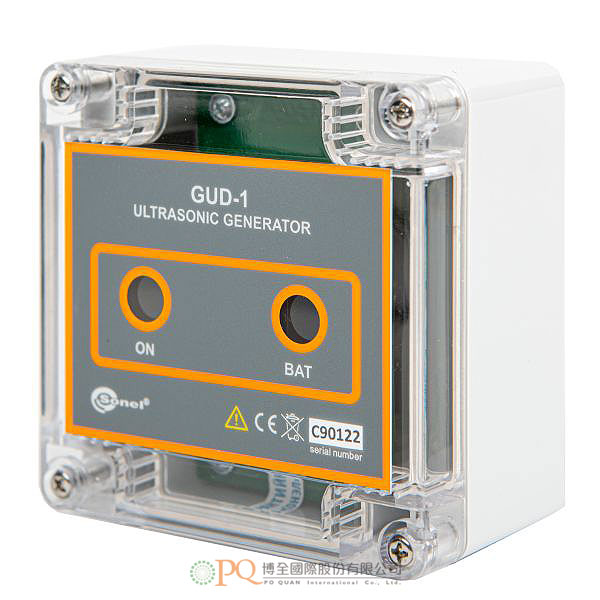

GUD-1 generator is dedicated to cooperate with TUD-1 detector as an alternative source of ultrasound for emission testing purposes. Generated ultrasound waves have a frequency adjusted to the reception level of the frequency detector.

The device can generate ultrasounds in places, where gas or air leak itself does not have enough pressure to generate a detectable signal. GUD-1 allows to:

• assess unpressurized tanks,
• detect cracks and holes.

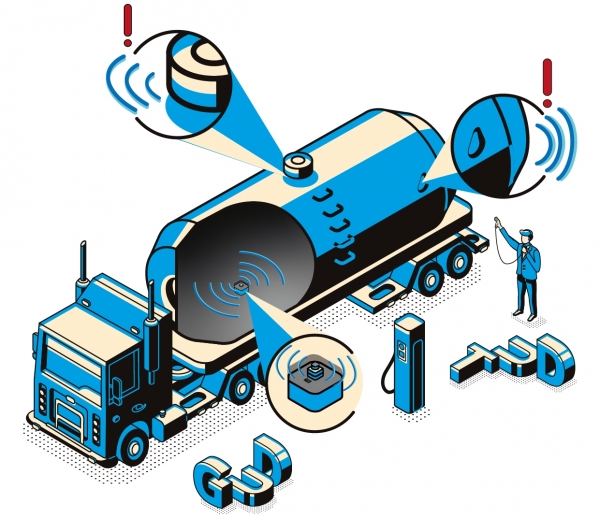

In cases where tested systems are not filled with a factor, and at the same time there is no leakage detected, the ultrasonic generator GUD-1 is required. It works on a simple bases. It produces sounds that occur during the leakage, making the test safer and lossless. The turned on generator is placed inside the system and then closed. The generated ultrasounds spread throughout the entire installation, leaking in places of damage. Then, using the TUD-1 ultrasonic detector, the operator seeks for sources of signal, which means spots of alleged damage.
The TG-1 contains both devices, which makes it a comprehensive set for leak and electric discharge detection.

Technical specification of GUD-1 generator

• frequency of the generated ultrasound: (40±1) kHz
• sound power:  0,0016 W
• power consumption: ≤0,02 W
• power supply: 9 V battery (6LR61 / MN1604)
• weight with battery installed: ≤0,28 kg
• dimensions: 100 x 100 x 80 mm
• relative humidity: not exceeding: 80% at +20ºС
• operating temperature range: -20ºС…+45ºС
