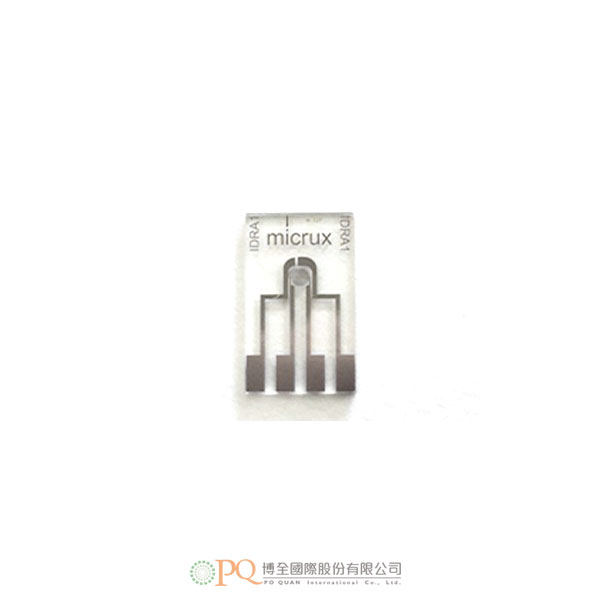

Thin-film Platinum InterDigitated Ring Array microelectrode (10/10 µm)
Thin-film Platinum InterDigitated Ring Array microelectrode (10/10 µm) 型號：ED-IDRA1-Pt
12 pairs interdigitated platinum electrodes (10/10 µm, electrode/gap) with radial design focused on flow analysis systems. Compatible with Drop, AIO and Multi8x AIO cell.
-
12 pairs interdigitated platinum electrodes (10/10 µm, electrode/gap) with radial design focused on flow analysis systems. Compatible with Drop, AIO and Multi8x AIO cell.
-
Dimensions: 10 x 6 x 0.75 mm
Substrate: Glass
Insulating layer: SU8/PI resin
Electrochemical cell: 2 mm Ø
Electrodes material: Ti / Pt
Electrodes thickness: 50/150 nm
Microelectrode width: 10 µm
Microelectrode gap: 10 µm
Number of fingers: 12 pairs
Applications: Electroanalysis, flow systems, nanotechnology, chemical sensors, biosensors
Contents: 50 units/box
