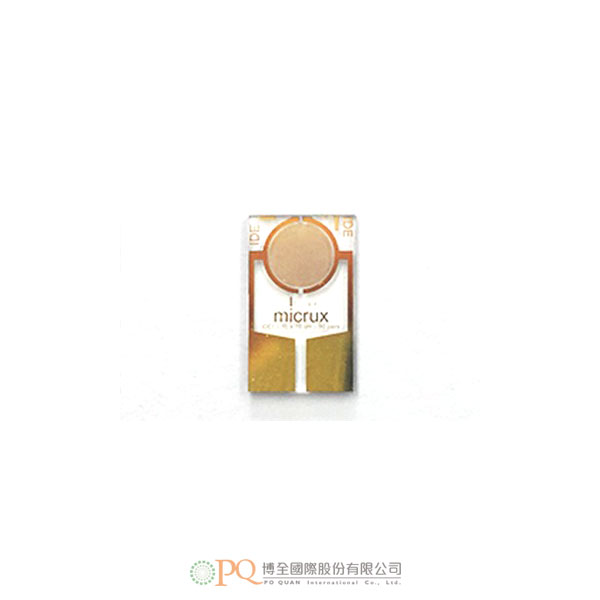

Thin-film Gold InterDigitated Electrode (5/5 µm)

180 pairs of interdigitated gold electrodes (5/5 µm, electrode/gap). Useful for optical and electrochemical (impedance) studies, spectroelectrochemistry, etc. Compatible with Drop, AIO and Multi8x AIO cell.

Dimensions: 10 x 6 x 0.75 mm
Substrate: Glass
Insulating layer: SU8/PI resin
Electrochemical cell: 3.5 mm Ø
Electrodes material: Ti / Au
Electrodes thickness: 50/150 nm
Microelectrode width: 5 µm
Microelectrode gap: 5 µm
Number of fingers: 180 pairs
Applications: Impedance, capacitance and conductivity measurements, fuel cells
Contents: 50 units/box
