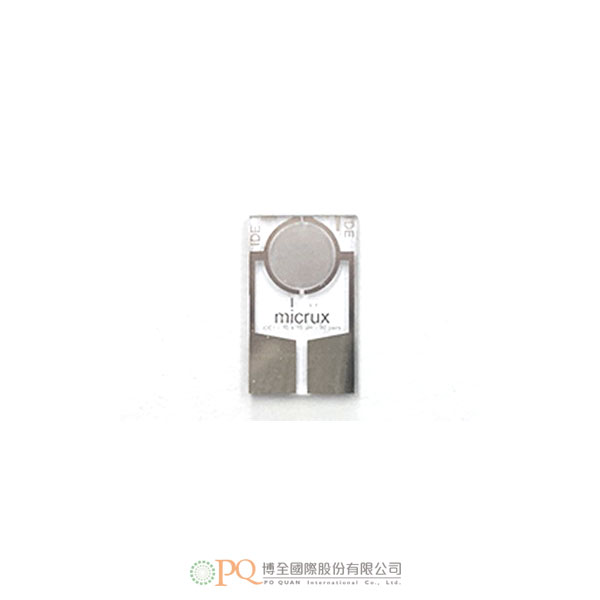

Thin-film Platinum InterDigitated Electrode (10/10 µm)

90 pairs of interdigitated platinum electrodes (10/10 µm, electrode/gap). Useful for optical and electrochemical (impedance) studies, scanning electrochemistry microscopy, etc. Compatible with Drop, AIO and Multi8x AIO cell.

Dimensions: 10 x 6 x 0.75 mm
Substrate: Glass
Insulating layer: SU8/PI resin
Electrochemical cell: 3.5 mm Ø
Electrodes material: Ti / Pt
Electrodes thickness: 50/150 nm
Microelectrode width: 10 µm
Microelectrode gap: 10 µm
Number of fingers: 90 pairs
Applications: Impedance, capacitance and conductivity measurements, fuel cells
Contents: 50 units/box
