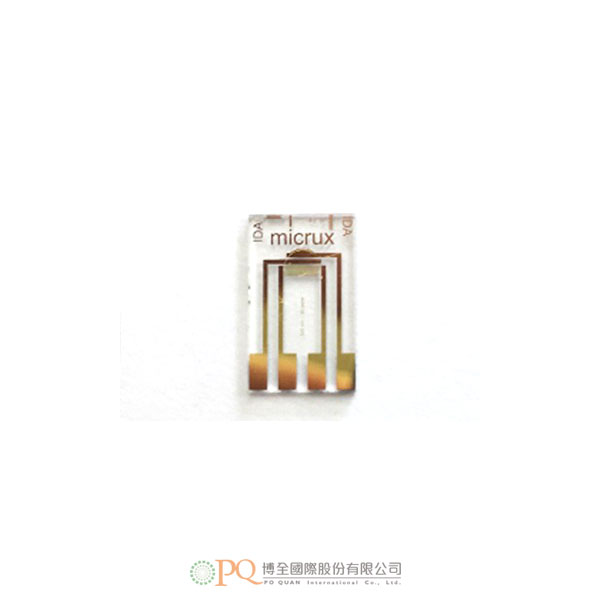

Thin-film Gold InterDigitated Array Microelectrode (5/5 µm)
Thin-film Gold InterDigitated Array Microelectrode (5/5 µm) 型號：ED-IDA6-Au
30 pairs interdigitated gold electrodes (5/5 µm, electrode/gap) integrating reference and auxiliary electrodes. Useful for thiols, uric acid, ascorbic acid, cancer biomarkers, insecticides, etc... detection. Compatible with Drop, AIO and Multi8x AIO cell.
-
30 pairs interdigitated gold electrodes (5/5 µm, electrode/gap) integrating reference and auxiliary electrodes. Useful for thiols, uric acid, ascorbic acid, cancer biomarkers, insecticides, etc... detection. Compatible with Drop, AIO and Multi8x AIO cell.
-
Dimensions: 10 x 6 x 0.75 mm
Substrate: Glass
Insulating layer: SU8/PI resin
Electrochemical cell: 2 mm Ø
Electrodes material: Ti / Au
Electrodes thickness: 50/150 nm
Microelectrode width: 5 µm
Microelectrode gap: 5 µm
Number of fingers: 30 pairs
Applications: Electroanalysis, flow systems, nanotechnology, chemical sensors, biosensors
Contents: 50 units/box
