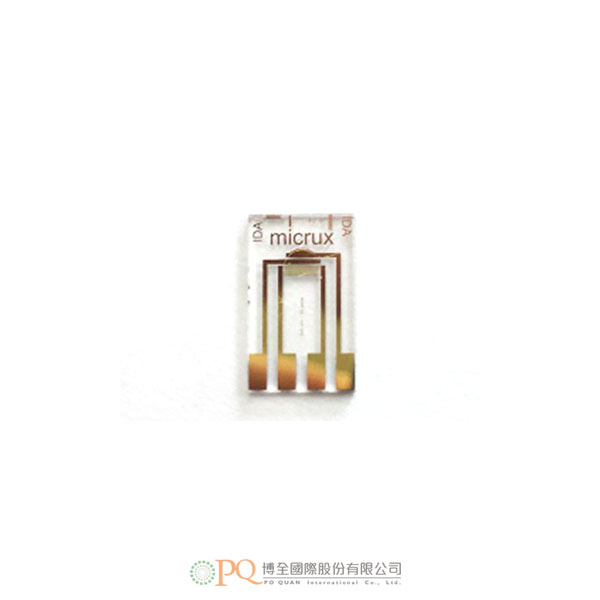

Thin-film Gold InterDigitated Array Microelectrode (10/10 µm)

15 pairs interdigitated gold electrodes (10/10 µm, electrode/gap) integrating reference and auxiliary electrodes. Useful for thiols, uric acid, ascorbic acid, cancer biomarkers, insecticides, etc... detection. Compatible with Drop, AIO and Multi8x AIO cell.

Dimensions: 10 x 6 x 0.75 mm Substrate: Glass Insulating layer: SU8/PI resin Electrochemical cell: 2 mm Ø Electrodes material: Ti / Au Electrodes thickness: 50/150 nm Microelectrode width: 10 µm Microelectrode gap: 10 µm Number of fingers: 15 pairs Applications: Electroanalysis, flow systems, nanotechnology, chemical sensors, biosensors Contents: 50 units/box
