渦輪泵碳塗佈機

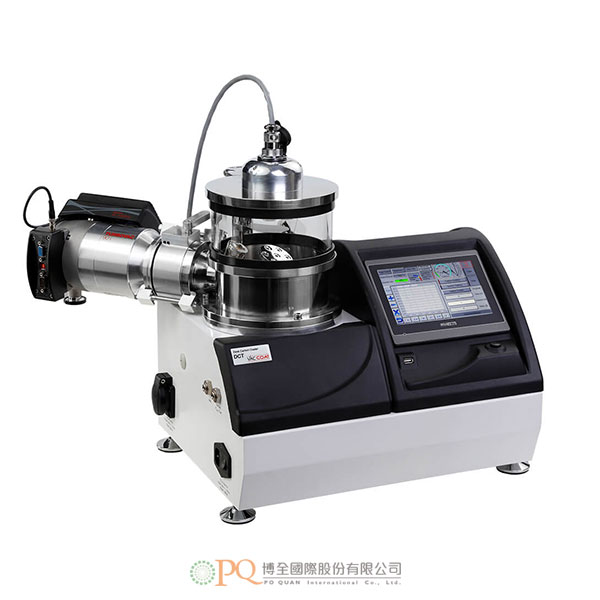

TURBO-PUMPED CARBON COATER 型號：DCT-
DTE 是一種台式熱蒸鍍系統，用於在基底上沉積薄層材料，以進行研究和電子顯微鏡調查。DTE 被配置為適用於樣品蒸鍍實驗的材料蒸鍍器。這種低成本、小腔室和高真空系統非常適合惰性金屬和氧化金屬的短時間沉積。
觸控式螢幕操控
台式碳塗佈機配備了 7”彩色觸控螢幕，具有全自動控制和數據輸入功能，即使沒有經驗的用戶也能操作。真空、電流和沈積訊息可通過觸控螢幕上以數值資料或曲線的形式顯示。最後 300 次濺鍍資訊都可儲存在歷史紀錄頁上。
真空碳塗佈機樣品支架
渦輪泵碳塗佈機可根據使用者要求配備不同的樣品台配置。樣品台可旋轉，高度可調且易於更換。旋轉式行星樣品台是多孔試樣均勻塗層的不錯選擇。
渦輪泵碳塗佈機的特點
- 用於即時厚度測量的石英晶體監測系統（精度為 1nm）。
- 脈衝或閃蒸碳纖維塗佈模式。
- 視覺式的觸控螢幕可良好控制和監控塗佈過程，並能快速輸入數據。
- 友善的用戶軟體介面，並可通過網路更新。
- 可記錄和繪製塗佈參數圖。
- 易於更換的試樣台（旋轉台形式為標準配置）。
- 符合 CE 標準。
- Vac coat 產品在全球範圍內都有公共和產品責任保險，以防 Vac coat 系統造成任何財產損失或人身傷害。
-
- High vacuum turbo pump 90 l/s (Leybold)
- Two stage rotary vane vacuum pump as a backing pumps
- Full range vacuum gauge (Leybold)
- 170 mm OD x 140 mm vacuum chamber
- 0-25 A switching pulsed DC power supply
- Ultimate Vacuum: Less than 7 x10-7 torr
- Dimensions: 450 x 500 x 370 mm(H * W & D)
- Utilities: 220V-240V, 50/60HZ, 10A
- Intuitive touch screen with colored display unit
- Sample holder with planetary rotation
- Plasma Cleaning
- Electronic shutter
- Automatically controlled coating independent of pressure
- Precision metering valve for fine control of vacuum pressure
- Real time plots of coating parameters
- Simple transfer of coating data plots via USB port to PC
- Shipping Weight: 46 Kg
Desk carbon coater – DCT has the following options and accessories:- Head and power supply for carbon rod
- Quartz crystal sensor
- Planetary sample rotation
- Spare vacuum glass chamber
- Carbon fiber
- Sealing gaskets
-
DCT is a Turbo-Pumped Carbon Coater that is ideal for FE-SEM, EDS/WDS, TEM, EBSD, and thin film applications. This high vacuum carbon coater offers high quality uniform carbon films with fine grain sizes which are suitable for specimens that require high resolution and high quality characterization.
Touch Screen Control
The Desk Carbon Coater is equipped with a 7” colored touch screen with full automatic control and data input that can be operated by even inexperienced users. The vacuum, current and deposition information can be monitored as digital data or curves on the touch screen. The last 300 coatings information can be detected in the history page.Sample Holder of Vacuum Carbon Coater
The turbo-pumped carbon coater can be equipped with different sample stage configurations depending on the user requirements. The sample stages are rotatable with adjustable height and easy to change. The rotary planetary sample stage is a good choice for uniform coating of porous specimens.Features of Turbo-Pumped Carbon Coater
- Quartz crystal thickness monitor with precision of 1nm and resolution of 1nm.
- Pulsed or flash carbon fiber coating modes
- Intuitive touch screen to control and monitor the coating process with a capability of rapid data input
- User friendly software that can be updated via network
- Able to record and plot coating parameters graphs
- Easy-to-change specimen stages (rotation stage as standard)
- Two-year warranty
- CE conformity
- Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.
-
- High vacuum turbo pump 90 l/s (Leybold)
- Two stage rotary vane vacuum pump as a backing pumps
- Full range vacuum gauge (Leybold)
- 170 mm OD x 140 mm vacuum chamber
- 0-25 A switching pulsed DC power supply
- Ultimate Vacuum: Less than 7 x10-7 torr
- Dimensions: 450 x 500 x 370 mm(H * W & D)
- Utilities: 220V-240V, 50/60HZ, 10A
- Intuitive touch screen with colored display unit
- Sample holder with planetary rotation
- Plasma Cleaning
- Electronic shutter
- Automatically controlled coating independent of pressure
- Precision metering valve for fine control of vacuum pressure
- Real time plots of coating parameters
- Simple transfer of coating data plots via USB port to PC
- Shipping Weight: 46 Kg
Desk carbon coater – DCT has the following options and accessories:- Head and power supply for carbon rod
- Quartz crystal sensor
- Planetary sample rotation
- Spare vacuum glass chamber
- Carbon fiber
- Sealing gaskets
