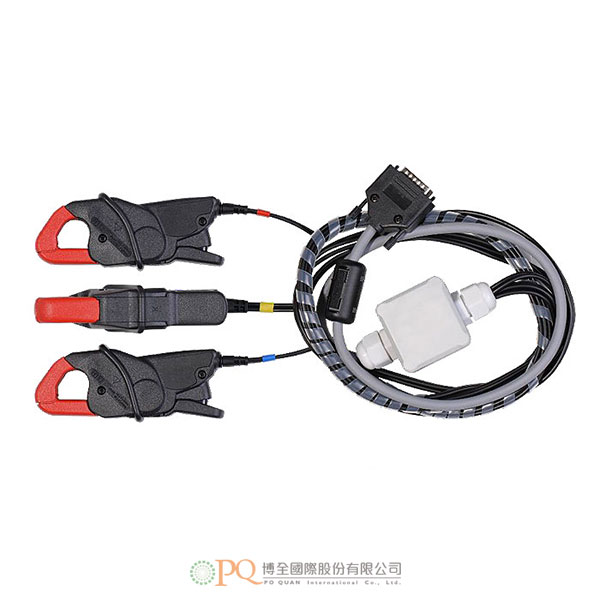

CT10AC -電子輔助夾
Electronic compensated clamps 12A 型號：CT10AC
Miniature, electronic compensated clamp for measuring current up to 12A
-
- Wide range of current measurement: 5mA to 12A
- 20 mm maximum conductor size
- Easy to assembly in hard access places
- Works with TE30 and TS33 analysers and testers
-
Parameter
Value
Range of current
5mA – 12A AC
Output voltage
100mV / 1A
Minimum load impedance
≥1MΩ
Accuracy
0.5% m.v. in range 0.1 to 12A 0.5% r.v. in range 5mA to 0.1A
Frequency range
40Hz to 10kHz
Maximum voltage of cable / bar to earth
600V AC RMS
Length of connecting cable
1,85m
Temperature range operation / storage
-10ºC to +55ºC/-40ºC to 70ºC
Dimensions of single clamp
135 x 57 x34.5 mm
Weight of single clamp
approx. 0.2kg
Safety
600V RMS, Cat. III,
Pollution degree 2Safety standards
EN 61010-1, -2, -031
