CMP-200

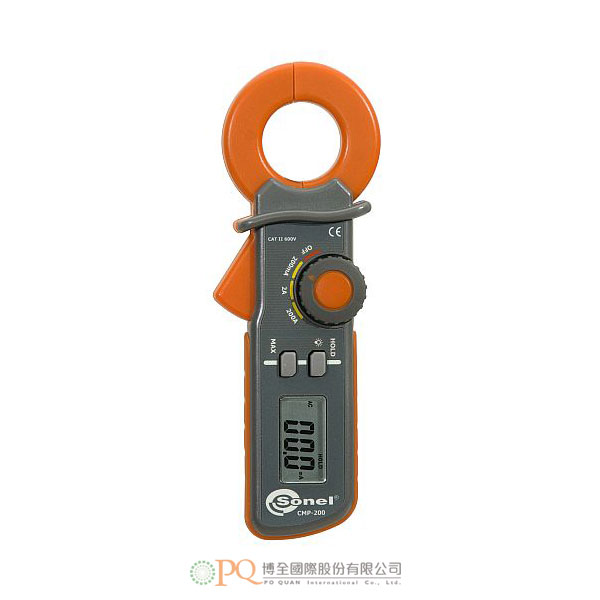

Digital Clamp-on AC leakage current meter 型號：CMP-200
The CMP-200 digital clamp meter has been designed for clamp measurements of AC leakage current. AC current measurement up to 200 A.
- high resolution (0,1 mA),
- three measuring ranges: 200 mA, 2 A, 200 A.
-
The most important features of CMP-200 are:
- display LCD 3½ digits (max 1999),
- white LED backlight,
- internal diameter clamp approx. 30 mm (1,2"),
- DATA HOLD function, for holding measured values.
- MAX function,
- AUTO-OFF function,
- double molded casing.
-
AC current measurement
Range Resolution Accuracy 199,9 mA 0,1 mA ±(5% m.v + 8 dgt) 1,999 A 0,001 A ±(5% m.v. + 10 dgt) 199,9 A 0,1 A ±(2,5% m.v. + 10 dgt) „m.v.”- measured value
Electric security:
- type of insulation: double, according to EN 61010 - 1 And IEC 61557
- measurement category: CAT II 600 V acc. to EN 61010 - 1:2004
- protection class acc. to EN 60529: IP40
Other technical data:
- power supply: 1,5 V AAA battery (2 pcs.)
- over range indication: 0L displayed
- sampling rate: 2 times per second
- display: 1999 counts LCD, 3½ digits
- dimensions: 182 x 61 x 34 mm
- weight (including batteries): 225 g
- auto power OFF: 15 min.
- accordance with following standards: EN 61010 - 1:2004, EN 61010 - 2 - 032
- quality standard: ISO 9001
Rated operational conditions:
- operating temperature and humidity: 0...+30°C (max 90%), 30...40°C (max 75%), 40...50°C (max 45%)
- storage temperature: -25...+60°C max <90%
- operating altitude: max 3000 m
