CMP-1006

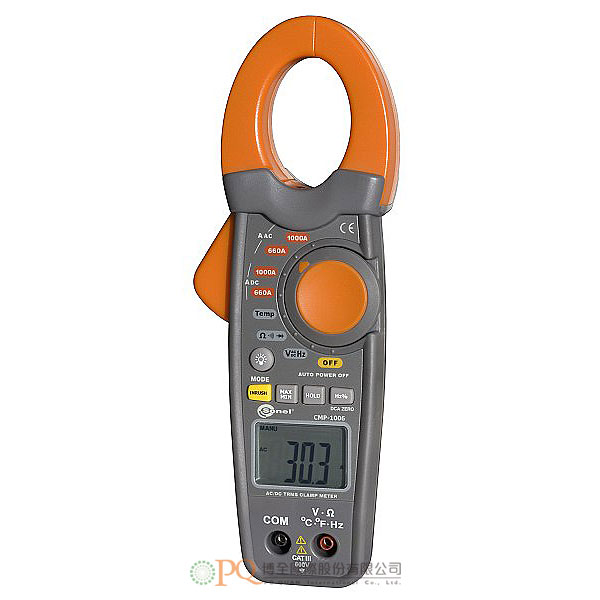

Digital Clamp-on multimeter 型號：CMP-1006Measurement functions:
- (TRUE RMS) up to 1000 A.
- Measurement of INRUSH current in start-up phase of electrical device (high frequency of sampling)
- AC/DC voltage measurement (TRUE RMS) up to 600 V.
- Resistance measurement and continuity test:
- continuity test with acoustic signalling (beeper) for resistance below 40.
- Temperature measurement (Fahrenheit and Celsius units).
- Frequency measurement.
- Duty cycle measurement.
- Diode test.
-
Special features:
- safe, insulated measuring clamps,
- autoranging/manual range selection,
- DATA HOLD function, for holding measured values,
- backlit LCD,
- DC ZERO mode of measurement for DC current, possibility to zero the display and reading relative actual value less stored zero value,
- MAX/MIN function,
- over range indication,
- AUTO-OFF function.
-
Electric security:
- measurement category: CAT III 600 V acc. to EN 61010 - 1:2004
- protection class acc. to EN 60529: IP40
Other technical data:
- power supply: 9 V battery type 6LR61
- display: 6600 counts, backlit LCD
- continuity test: threshold 40 Ω; test current < 0,5 mA
- diode test: test current of 0,3 mA, typical open circuit voltage < 3 V DC, typical
- low battery indication: BAT displayed
- over range indication: 0L displayed
- sampling rate: 2 times per second
- INRUSH: integration time 100 ms
- temperature sensor: type K thermocouple
- input impedance: 10 MΩ (V DC and V AC)
- AC bandwidth: 50...400 Hz (A AC and V AC)
- auto power OFF: approx. 25 min.
- dimensions: 229 x 80 x 49 mm
- weight: 303 g
- accordance with following standards: EN 61010 - 1:2004, EN 61010 - 2 - 032
- quality standard: ISO 9001
Rated operational conditions:
- internal clamp diameters: d1 = 36 mm/d2 = 52 mm
- operating temperature: +5...+40°C
- storage temperature: -20...+60°C
- operating humidity: max 80% up to 31°C decreasing linearly to 50% at 40°C
- storage humidity: <80%
- operating altitude: max 2000 m
AC/DC current measurement (TRUE RMS)
Range Resolution Accuracy (DC) Accuracy (AC) 0...659,9 A 0,1 A ±(2,5% m.v. +5 dgt) ±(2,5% m.v + 8 dgt) for f = 50...60 Hz 660...1000 A 1 A ±(2,8% m.v. +8 dgt) ±(2,8% m.v. + 8 dgt) for f = 50...60 Hz DC voltage measurement
Range Resolution Accuracy 0...6,599 V 0,001 V ±(1,5% m.v. + 3 dgt) 6,60...65,99 V 0,01 V ±(1,5% m.v. + 3 dgt) 66,0...600,0 V 0,1 V ±(1,5% m.v. + 3 dgt) AC voltage measurement (TRUE RMS)
Range Resolution Accuracy 0...6,599 V 0,001 V ±(1,8% m.v. + 5 dgt) for f = 50...60 Hz 6,60...65,99 V 0,01 V ±(1,8% m.v. + 5 dgt) for f = 50...60 Hz 66,0...600,0 V 0,1 V ±(1,8% m.v. + 5 dgt) for f = 50...60 Hz Resistance measurement
Range Resolution Accuracy 0,0...659,9 Ω 0,1 Ω ±(1,0% m.v. + 4 dgt) 0,660...6,599 kΩ 0,001 kΩ ±(1,5% m.v. + 2 dgt) 6,60...65,99 kΩ 0,01 kΩ ±(1,5% m.v. + 2 dgt) 66,0...659,9 kΩ 0,1 kΩ ±(1,5% m.v. + 2 dgt) 0,660...6,599 MΩ 0,001 MΩ ±(2,5% m.v. + 3 dgt) 6,60...66,00 MΩ 0,01 MΩ ±(3,5% m.v. + 5 dgt) Frequency measurement
Range Resolution Accuracy 30,0...999,9 Hz 0,1 Hz ±(1.2% m.v. + 2 dgt) sensitivity:30...5 kHz:10 Vrms min. 5 kHz...15 kHz:40 Vrms min. for 20%...80% duty cycle 1,000...9,999 kHz 0,001 kHz ±(1.2% m.v. + 2 dgt) sensitivity:30...5 kHz:10 Vrms min. 5 kHz...15 kHz:40 Vrms min. for 20%...80% duty cycle 10,00...15,00 kHz 0,01 kHz ±(1.2% m.v. + 2 dgt) sensitivity:30...5 kHz:10 Vrms min. 5 kHz...15 kHz:40 Vrms min. for 20%...80% duty cycle Temperature measurement
Range Resolution Accuracy -20...760°C 0,1°C ±(3,0% m.v. + 5°C) -4...1400°F 0,1°F ±(3,0% m.v. + 9°F) Duty cycle measurement
Range Resolution Accuracy 10,0...94,9% 0,1% ±(1,2% m.v. + 2 dgt) - pulse width: 100μs...100 ms,
- frequency range: 30 Hz...5 kHz,
- sensitivity: 30 Hz...5 kHz: 10 Vrms, 5 kHz...15 kHz: 40 Vrms.
„m.v.”- measured value
