CMM-40

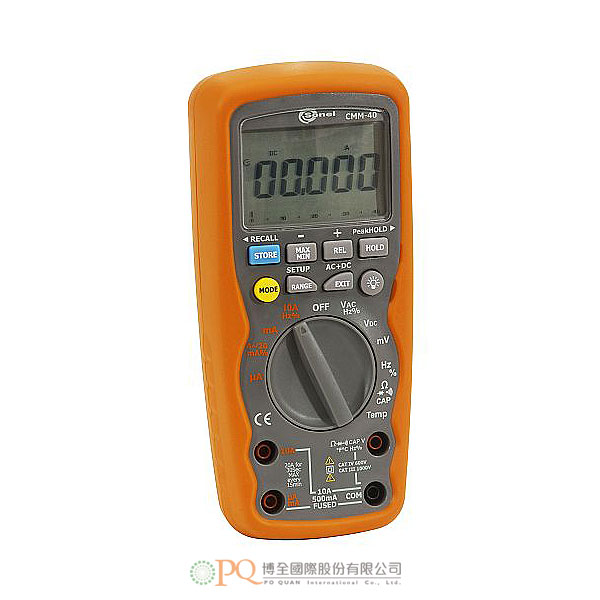

Industrial multimeter 型號：CMM-40

Industrial multimeter CMM-40 was designed for the purpose of measurements of AC/DC voltage, AC/DC current, resistance, capacitance, frequency (electrical and electronic), duty cycle, temperature and also for testing diodes and continuity.

加入洽詢

產品特點產品規格

The most important features of CMM-40 are:
- autoranging/manual range selection,
- „DATA HOLD” function, for holding measured values,
- „REL” function, which allows you to make measurements relative to a stored reference value,
- „MAX/MIN” function,
- „PEAK HOLD” function,
- memory for 2000 measurement resultS,
- continuity test with acoustic signalling (beeper),
- „AUTO-OFF” function,
- display 4¾ digits (40000 max),
- double molded, waterproof casing.

Frequency measurement (electronic)

Range	Resolution	Accuracy
40,000 Hz	0,001 Hz	±(0,1% m.v. + 1 digit)
400,00 Hz	0,01 Hz
4,0000 kHz	0,0001 kHz
40,000 kHz	0,001 kHz
400,00 kHz	0,01 kHz
4,0000 MHz	0,0001 MHz
40,000 MHz	0,001 MHz
100,00 MHz	0,01 MHz	not speccified

Sensitivity: 0.8 V rms min. @ 20% to 80% duty cycle and <100 kHz; 5 V rms min @ 20% to 80% duty cycle and > 100 kHz

Frequency measurement (electrical)

Range	Resolution	Accuracy
40,00 Hz...10,000 kHz	0,01 Hz...0,001 kHz	± 0,5% m.v.

sensitivity: 1 V rms

Duty cycle measurement

Range	Resolution	Accuracy
0,10...99,00%	0,01%	±(1,2% m.v. + 2 digits)

pulse width: 100μs - 100 ms,
frequency width: 5 Hz...150 kHz.

Temperature measurement

Range	Resolution	Accuracy
-50,0°C...+1200,0°C	0,1°C	±(1% m.v. + 2,5°C)
-58,0°F...+2192,0°F	0,1°F	±(1% m.v. + 4,5°F)

DC voltage measurement

Range	Resolution	Accuracy
400,0 mV	0,01 mV	±(0,06% m.v. + 4 digits)
4,0000 V	0,0001 V
40,000 V	0,001 V
400,00 V	0,01 V
1000,0 V	0,1 V	±(0,1% w.m. + 5 cyfr)

AC voltage measurement (True RMS)

Range	Resolution	Accuracy
400,00 mV	0,01 mV	±(1% m.v. + 40 digits)
4,0000 V	0,0001 V	±(1% m.v. + 30 digits)
40,000 V	0,001 V
400,00 V	0,01 V
1000,0 V	0,1 V

frequency range: 50...1000 Hz.

AC/DC current measurement (True RMS)

Range	Resolution	Accuracy
400,00 μA	0,01 μA	dla DC ±(1,0% m.v. + 3 digits) dla AC ±(1,5% m.v. + 30 digits)
4 000,0 μA	0,1 μA
40,000 mA	0,001 mA
400,00 mA	0,01 mA
10,000 A	0,001 A

20 A: 30 sec max with reduced accuracy.

Resistance measurement

Range	Resolution	Accuracy
400,00 Ω	0,01 Ω	±(0,3% m.v. + 9 digits)
4,0000 kΩ	0,0001 kΩ	±(0,3% m.v. + 4 digits)
40,000 kΩ	0,001 kΩ
400,00 kΩ	0,01 kΩ
4,0000 MΩ	0,0001 MΩ
40,000 MΩ	0,001 MΩ	±(2,0% m.v. + 10 digits)

Capacitance measurement

Range	Resolution	Accuracy
40,000 nF	0,001 nF	±(3,5% m.v. + 40 digits)
400,00 nF	0,01 nF	±(3,5% m.v. + 40 digits)
4,0000 μF	0,0001 μF	±(3,5% m.v. + 10 digits)
40,000 μF	0,001 μF
400,00 μF	0,01 μF
4000,0 μF	0,1 μF	±(5% m.v. + 10 digits)
40,000 mF	0,001 mF	±(5% m.v. + 10 digits)

Other technical data:

power supply: 9 V battery type 6LR61
diode test: I=0,9 mA, U0 = 2,8 V DC
continuity test: I<0,35 mA, sound signal for R<35 Ω
over range indication: 0L displayed
crest factor: ≤ 3 at full scale up to 500 V; decreasing linearly to ≤ 1,5 at 1000 V
PEAK: captures peaks >1 ms
sampling rate: 2 times per second
input impedance: 10 MΩ (V DC), 9 MΩ (V AC)
display: 40000 counts backlit LCD with bargraph, 4¾ digits
store capacitance: 2000
dimensions: 187 x 81 x 55 mm
weight: 342 g
fuses: mA, µA range: 0,5 A/1000 V ceramic fast blow; A range: 10 A/1000 V ceramic fast blow
auto power OFF: 15 min.
accordance with following standards: EN 61010 - 1:2004, EN 61010 - 2 - 032

Electric security:

type of insulation: double, according to EN 61010 - 1 and IEC 61557
measurement category: CAT III 1000 V acc. to EN 61010 - 1:2004
protection class acc. to EN 60529: IP67

Rated operational conditions:

operating temperature: 0...+40°C
storage temperature: -20...+60°C
operating humidity: max 80% up to 87°F (31°C); decreasing linearly to 50% at 104°F (40°C)
operating altitude: max 2000 m

„m.v.”- measured value
