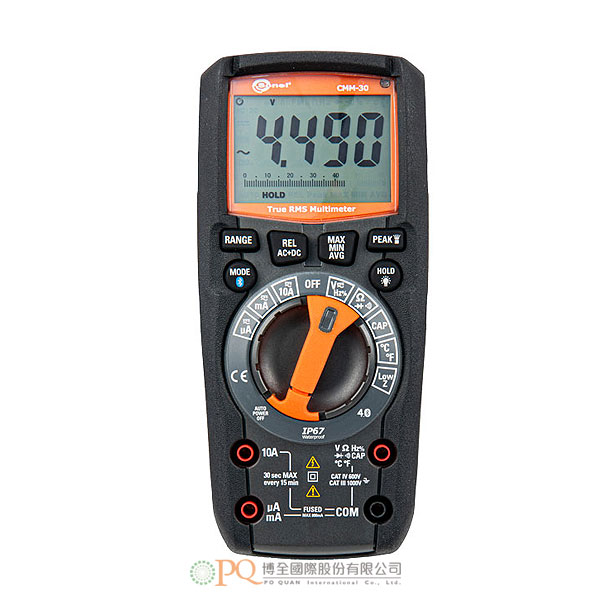

CMM-30
Industrial Multimeter 型號:CMM-3011 basic measurement functions together with additional functions provide wide range of application. Smart phone app enables remote reading and saving measurements even from places with difficult acccess thanks to wireless communication. Backlight automatically adjusts the brightness level of the screen and the control panel to the prevailing conditions, while the built-in flashlight allows to work in the dark. The innovative design combines drop protection, IP67 casing and ease of use, even with dielectric gloves.
This device is created for electricians who value quality and innovation.
-
- 11 measurement functions, including AC/DC voltage measurement, AC/DC current measurement, resistance, capacity, temperature, duty cycle, frequency,
- manual and automatic range selection,
- the AC+DC function allows to simultaneously display the sum of the DC and AC component during voltage measurement,
- HOLD function to capture stable readings of noisy signals ,
- function MAX/MIN/AVG recording maximum/minimum/average values,
- REL function for relative measurements,
- PEAK function displaying the peak value of the measured signal,
- true RMS for AC voltage and current,
- built-in Bluetooth module for wireless communication,
- Beeper for circuit continuity,
- built-in flashlight for lighting the measuring places,
- automatic backlight of the display and control panel,extremely robust housing with IP67 protection against water and dust,
- rotary switch designed for easy handling even when working in thick gloves in dangerous and difficult conditions,
- increased drop protection thanks to the elastomer coating,
- Auto-OFF function for automatic switching off of the unused,
- 6000 counts display,
- optional strap with a hook allows easy operation with both hands.
-
Technical parameters:
AC current measurement (True RMS)
Range Resolution Accuracy 600,0 μA
0,1 μA ±(1,0% m.v. + 3 digits) 6000 μA 1 μA 60,00 mA 0,01 mA 600,0 mA 0,1 mA 10,00 A 0,01 A ±(2,0% m.v.+ 8 digits) -
All AC current ranges are specified from 5%... 100% of range
-
AC voltage frequency: 45…400 Hz
DC Current measurement
Range Resolution Accuracy 600,0 μA
0,1 μA ±(1,0%m.v. + 3 digits) 6000 μA 1 μA 60,00 mA 0,01 mA 600,0 mA 0,1 mA 10,00 A 0,01 A ±(1,5% m.v. + 3 digits) AC Voltage measurement (True RMS)
Range Resolution Accuracy 6,000 V 0,001 V ±(1,0% m.v.+ 5 digits) 60,00 V 0,01 V 600,0 V 0,1 V 1000 V 1 V ±(1,2% m.v. + 5 digits) -
All AC voltage ranges are specified from 5% to 100% of range
-
Input impedance: 10 MΩ
-
AC voltage ffrequency: 45…1000 Hz
DC Voltage measurement
Range Resolution Accuracy 600,0 mV 0,1 mV ±(0,5% m.v. + 8 digits) 6,000 V 0,001 V ±(0,8% m.v. + 5 digits) 60,00 V 0,01 V 600,0 V 0,1 V 1000 V 1 V ±(1,0% m.v. + 3 digits) - Input impedance: 10 MΩ
AC + DC Voltage measurement
Range Resolution Accuracy 6,000 V 0,001 V ±(1,5% m.v. + 20 digits)
60,00 V 0,01 V 600,0 V 0,1 V 1000 V 1 V ±(1,5% m.v. + 5 digits) -
Input impedance: 10 MΩ
-
AC voltage bandwidth: 45…400 Hz
Low impedance measurement
Range Resolution Accuracy 6,000 V 0,001 V ±(3,0% m.v. + 30 digits)
60,00 V 0,01 V 600,0 V 0,1 V 1000 V 1 V ±(3,0% m.v. + 5 digits) -
All AC voltage ranges are specified from 5% to 100% of range
-
Input impedance: 3 kΩ
-
AC voltage frequency: 45…400 Hz
Resistance measurement
Range Resolution Accuracy 600,0 Ω 0,1 Ω ±(1,5% m.v. + 5 digits) 6,000 kΩ 0,001 kΩ 60,00 kΩ 0,01 kΩ 600,0 kΩ 0,1 kΩ 6,000 MΩ 0,001 MΩ 60,00 MΩ 0,01 MΩ ±(2,0% m.v. + 10 digits) Capacitance measurement
Range Resolution Accuracy 60,00 nF 0,01 nF
±(5,0% m.v. + 35 digits)600,0 nF 0,1 nF
±(3,0% m.v. + 5 digits)6,000 µF 0,001 µF 60,00 µF 0,01 μF 600,0 µF 0,1 μF 6000 µF 1 μF ±(5,0% m.v. + 5 digits) Frequency measurement
Range Resolution Accuracy 9,999 Hz 0,001 Hz
±(1,0 % m.v.+ 5 digits)99,99 Hz 0,01 Hz 999,9 Hz 0,1 Hz 9,999 kHz 0,001 kHz - Sensitivity: >8 V RMS
Duty cycle measurement
Range Resolution Accuracy 20,0... 80,0% 0,1% ±(1,2 % m.v.+ 2 digits) -
Pulse width: 100 µs…100 ms.
-
Frequency: 5Hz… 10kHz.
-
Sensitivity: >8 V RMS
Temperature measurement
Range Resolution Accuracy -20...+760oC 0,1 lub 1oC ±(1,0% m.v.+ 5oC) -4...+1400oF 0,1 lub 1oF ±(1,0% m.v.+ 9oF) - Probe accuracy not included
“m.v.” means measured value of standard.
Safety Specifications:
-
type of insulation: double, according to EN 61010 - 1 and IEC 61557
-
measurement category: CAT III 600 V acc. to EN 61010-1:2004
-
protection class acc. to EN 60529: IP67
Bluetooth:
-
Version: v4.0 + EDR
-
Frequency range: 2400 MHz ... 24833,5 MHz (ISM band)
-
Protective band: 2 MHz <f <3.5 MHz
-
Modulation method: GFSK, 1 Mbps, 0.5 gauss
-
Signal bandwidth: -82 ... -20 dBm
-
Minimum transmission power: -18 ... + 4 dBm
Other:
-
power supply: 4 x battery AAA 1,5 V
-
diode test: I=1,0 mA, U0 < 3 V DC
-
continuity test: sound signal for R<30 Ω
-
over range indication: symbol 0L
-
sampling rate: 3 times per second
-
input impedance: 10 MΩ (V AC/DC)
-
display: backlit LCD, counts 6000 with icons
-
dimensions: 170 x 75 x 48 mm
-
weight (with batteries): 418 g
-
fuses: range mA, µA: 0,8 A/1000 V fast, range A: 10 A/1000 V fast
-
auto power OFF: 15 minutes
-
accordance with following standards: EN 61010-1, EN 61010-031, EN 61010-2-033, EN 61326-1, EN 61326-2-2,
-
quality standard: ISO 9001
Environmental Specifications:
-
temperaturę range: +0..+40oC,
-
humidity: < 75%
-
storage temperature: -20...+60°C at humidity <80%
-
