附有LED燈的儀器表

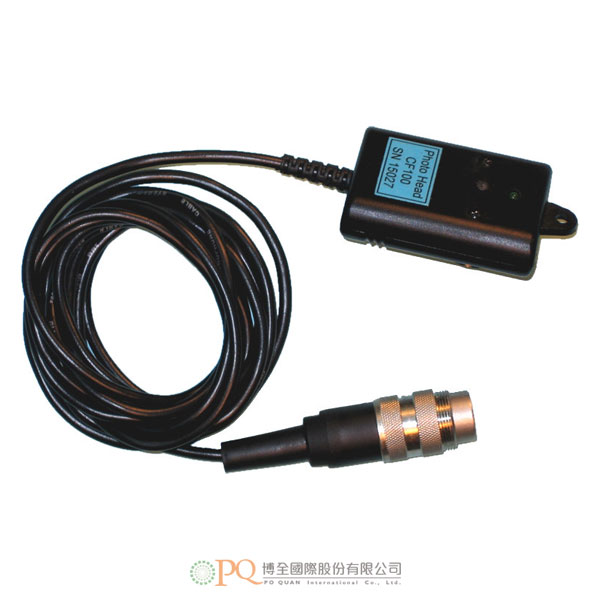

Head for meters with LED flashing 型號：CF100Miniature photo head with vacuum cup clamping for counting LED flashing of tested meter. It contains also button for inductive meters testing by method "start/stop".
-
Photoelectric scanning head CF100 together with electricity meter tester Calport100 is designed for detecting LED flashing in electricity meters. It can detect typical colors of LED: red, orange, yellow, green and infrared.
- LED green, ... , red and infrared
- Mounting to meter by vacuum cup
- Small dimensions and weight
- Requires no adjustment
- Additional Manual Start / Stop push button
-
Power Supply Vcc
10...30V
Supply current
typ. 20mA@12V and max 35mA
Output
voltage ULO=0...0,5V ; UHI=5...(Vcc-4)V
ROUT=1,5kSensitivity distance
0...40mm
Connector type
plug C091A T3475-001 Amphenol
