接觸/非接觸式數位轉速計
CDT-2000HD Combination Contact and Non-Contact Digital Tachometer 型號:CDT 2000HD- CHECK-LINE CDT-2000HD手持式數位轉速計結合了接觸式及非接觸式機型的最佳特點,可以精準的測量RPM、表面速度及長度。

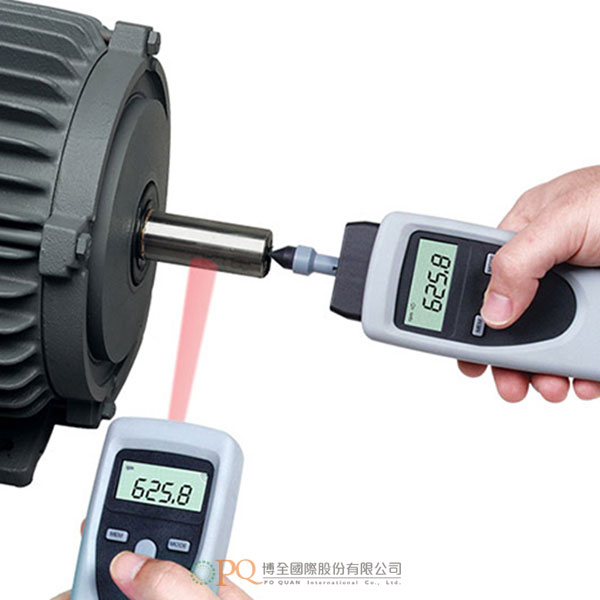

- 使用非接觸模式時,是藉著一個可見光束測量轉速(RPM),CDT-2000HD可以與固定在旋轉元件上的小片反光膠帶距離24吋。
- 使用接觸模式時,是使用隨儀器配備的一個接觸轉接器,直接接觸旋轉裝置,而感測速度。
- CDT-2000HD的強固結構、便攜性及出色的特點,使它成為廣泛的各種機械與材料處理應用中的維護員、機械操作員或其它人員的理想工具選擇!
-
- CHECK-LINE CDT-2000HD手持式數位轉速計結合了接觸式及非接觸式機型的最佳特點,可以精準的測量RPM、表面速度及長度。
- 使用非接觸模式時,是藉著一個可見光束測量轉速(RPM),CDT-2000HD可以與固定在旋轉元件上的小片反光膠帶距離24吋。
- 使用接觸模式時,是使用隨儀器配備的一個接觸轉接器,直接接觸旋轉裝置,而感測速度。
- CDT-2000HD的強固結構、便攜性及出色的特點,使它成為廣泛的各種機械與材料處理應用中的維護員、機械操作員或其它人員的理想工具選擇!
- 特點:
- 測量速度範圍1.00 RPM~99,999 RPM。
- 精度0.02%,解析度0.01 RPM。
- 標準配備可追溯校正證明。
- 內建記憶體,可儲存最大值、最小值、平均值及最近一次的讀值,並可讀出及顯示在螢幕上。
- 模製橡膠殼,可對機身與環境提供額外的保護。
- 標準提供更大的6吋圓周表面速度測試輪。
- 可設定搭配2個選購尺寸的表面速度測試輪使用(12吋或10cm圓周)。
- 應用:
- 接觸式轉速測量:用於測量旋轉馬達、軸、滑輪、齒輪等的速度。
- 非接觸式轉速測量:由於接近空間的限制及安全疑慮等因素,無法進行接觸式測量時使用。
- 線性速度及長度測量:用於測量移動表面的線性速度或長度,例如傳送帶、印刷材料、捲筒布或紙…等。
-
測量範圍
每分鐘轉速(RPM)
非接觸式:1.00~99,999 rpm
接觸式:1.00 - 19,999 rpm表面速度
0.30 - 6,500呎/分鐘
0.10 - 1,999公尺/分鐘
4.0 - 78,000吋/分鐘長度
0.01 - 99,999呎
0.02 - 99,999公尺
1.0 - 99,999吋一般規格
解析度
0.01:0~100
0.1:100~1,000
1:1000~99,999精度
± 0.02% rdg.或1位數
顯示幕
5位數LCD,高10mm
小數點
自動
記憶體
儲存最大值、最小值及最近一次的讀值(在電池使用壽命期間保留在記憶體內)
測量系統
非接觸式:可見的LED光束;
接觸式:接觸式轉接器
工程單位
每分鐘轉速:RPM
表面速度:呎/分鐘、吋/分鐘、公尺/分鐘
長度:呎、吋、公尺感測距離
~24吋(60 cm)
畫面更新顯示時間
0.5秒或1個測量
自動關機
在30秒不使用後 (最小值、最大值及最後一次讀值保留在記憶體內)
電池壽命
40小時的連續使用
電池
2 AA (1.5 V)或可充電電池
- 詳細規格、配件、軟體及選購,歡迎洽詢。
-
- The CHECK-LINE CDT-2000HD Combination Portable Tachometer combines the best features of both contact and non-contact models to accurately measure RPM, surface speed and length.
- When using the non-contact mode, rotational speed (RPM) is measured using a visible beam of light. The CDT-2000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element.
- In the contact operating mode, the speed is sensed by directly contacting rotating device using one of the contact adapters supplied with the instrument.
- The CDT-2000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.
- Features
- Measures speeds from as low as 1.00 rpm up to 99,999 rpm
- Accuracy of 0.02% with a resolution of 0.01 RPM
- Includes Traceable calibration Certificate
- Built-in memory stores maximum, minimum, average and last reading for recall to the display
- NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection
- NEW - Now includes larger 6 inch circumference Surface Speed Wheel standard
- NEW - Can be set for use with 2 optional-sized surface speed wheels (12 inch or 10 cm circumference)
- Applications:
- Contact RPM: used to measure the speed of rotating motors, shafts, pulleys, gears, etc.
- Non-Contact RPM: used when contact measurement is not possible due to access space restrictions, safety concerns, etc.
- Linear Speed and length: used to measure the linear speed or length of moving surfaces, such as conveyor belts, printed materials, webs of fabric or paper, etc.
-
Measuring Ranges
RPM
Non-Contact: 1.00 - 99,999 rpm
Contact: 1.00 - 19,999 rpmSurface Speed
0.30 - 6,500 feet/min
0.10 - 1,999 meters/min
4.0 - 78,000 inches/minLength
0.01 - 99,999 feet
0.02 - 99,999 meters
1.0 - 99,999 inchesGeneral Specifications
Resolution
.01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999Accuracy
± 0.02% of reading or 1 digit
Display
5 - Digit LCD, 10mm high
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Non-Contact: Visible LED light beam
Contact: Contact adapterEngineering Units
RPM: RPM
Surface Speed: Ft/min, inch/min & meters/min
Length: Feet, inches, metersSensing Distance
Up to 24 inches (60 cm)
Display Update Time
0.5 seconds or one measuring
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
40 hours continuous use
Battery
2 AA (1.5 V) or rechargeable
- Please feel free to contact for detailed specifications, accessories, software and options.
