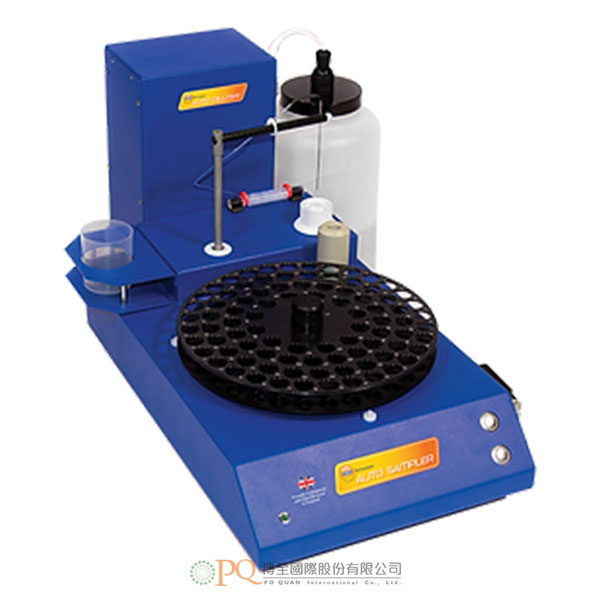

自動流體處理系統(AFHS)
BWB AFHS 型號：AFHS-
BWB 客戶們依賴著我們的儀器，而這些儀器可能全天運行，處理數十甚至數百個樣品。到目前為止，全程的操作一直是手動過程，需要操作員在現場引入每個樣品。許多組織機構都在努力提高其實驗室流程的效率和自動化程度，為此，BWB 提供了解決方案。新型自動流體處理系統 (AFHS) 首次實現了火焰光度測定過程的快速、可靠和有效的自動化。
特點:
新的「AutoRead」技術是自動化的基礎，自動化系統的目標是在不需要人工干預的情況下準確、可靠和自主地執行任務。透過對多通道偵測器的輸入端進行巧妙的軟體/硬體處理，使得讀數的穩定性是透過儀器本身分析確定，而不再是使用者的主觀決定。
產品特點:
- 圍繞 BWB 專有的“AutoRead”技術構建。
- 可用“IRS”（內部參考標準）。
- 與所有 2014 年及以後的 BWB 火焰光度計型號相容。
- 使用者可選5個托盤的校準點。
- 用戶可選擇稀釋比例。
- 專用自動稀釋器。
- 使用 BWB 整合印表機可按照需求列印關鍵分析數據。
- 自動進樣器和自動稀釋器共用一個電源。
- 可容納多達 89 個樣本。
- 可互換的樣品托盤。
- 額外的樣品托盤可用於 1ml 和 3ml 樣品杯。
- 大量樣品杯利於當天檢驗流程，以防止延誤。
-
Sample rate
4ml/min
Tubing materials
Translucent PTFE and Tygon®
Required desk space for Instrument
50cm (H) x 65cm (W) x 63cm (D)*
*XP Flame photometer with BWB
Recommended set up positioning.
For Safety reasons the Flame photometer
requires 1m of unobstructed space above to allow dissipation of
heat from the chimney.Instrument size
XP Flame Photometer
51cm (H) x 38cm (W) x 41cm (D)
(20in x 14in x 16in)Auto Diluter
30cm (H) x 30cm (W) x 43cm (D)*
(12in x 12in x 17in)Auto Sampler
30cm (H) x 18cm (W) x 11cm (D)**
(12in x 7in x 4in)Shipping
62cm (H) x 55cm (W) x 47cm (D) x 2 boxes
(24in x 22in x 19in)*Inclusive of Cannula operating arm.
** Excluding Dilution Reservoir.Weight
XP Flame Photometer – 15.3kg (33.7lbs)
Auto Diluter – 3.75kg
Auto Sampler – 6.9kgShipping
XP Flame Photometer – 25kg
AFHS unit – 17kgAmount of fluid used per sample
based on dilution ratios,DR1 – 5.0ml
DR10 – 0.5ml
DR100 – 0.05mlSpecificity
Na/K/Li = <0.5% to each other when equal
in concentration at <100ppmOptimal range
Single point calibration
Na 0.1 – 60ppm
K 0.05 – 100ppm
Li 0.05 – 50ppm
Ca 1.0 – 100ppm
Ba 1.6 – 100ppm
Multi Point Calibration
Na 0.1 – 1000ppm
K 0.05 – 1000ppm
Li 0.05 – 1000ppm
Ca 1.0 – 1000ppm
Ba 5.0 – 3000ppm
Reproducibility
<1% Coefficient of variability for 10 consecutive samples within
optimal range. (After instrument stabilisation).Limit of detection (LOD) and
limit of quantification (LOQ) displayedLOD LOQ
Na – 0.1ppm Na – 0.3ppm
K – 0.05ppm K – 0.15ppm
Li – 0.05ppm Li – 0.15ppm
Ca – 1ppm Ca – 3ppm
Ba – 1.6ppm Ba – 15ppm
Time to stability
Less than 15 seconds after sample is introduced into the flame
Single sample time
With Auto Diluter: 130 Seconds including
Sample Preparation, Acquisition and flushWithout Auto Diluter: 80 Seconds including Acquisition and flush.
Amount of samples measured per hour
With Auto Diluter: 25
Without Auto Diluter: 40Dilution reservoir size
2.5L with inbuilt low level control standard.
5.0L available.Amount of samples per dilution reservoir
2.5L – 120* 5L – 240**dependent on idle times between trays
and sample set-ups.Amount of samples per tray
89 with additional interchangeable trays
to speed up sampling time.Interfaces
USB
0-2.5 volt output
(based on sample concentration linked to element of users choice)Optional 4-20mA output in place of the above
Optional integrated printer
.csv and .pdf generated reports and files via FP-PC software
Recommended minimum warm up
time based on ambient temperature21°C – 40 minutes
Power requirements
100V – 250V AC at 50 or 60Hz
Fuel requirement
Propane, Butane or Natural Gas*
regulated to 19Bar. Flow rate of 0.4l/min*with modifications. BWB Technologies
recommends either Propane or Butane for
optimum results.Readout
LCD, four line, alpha numeric, back lit.
-
