可程式三相交流電源供應系統

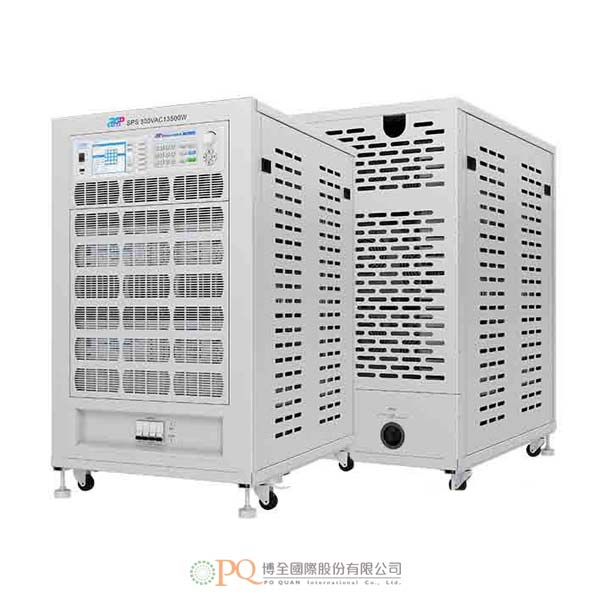

APM Programmable Three Phase AC Source System 型號：SPS300VAC 5400W|SPS300VAC 8100W|SPS300VAC 10800W|SPS300VAC 13500W

APM SPS300VAC三相交流電源系統系列，是單相/三相輸出的高功率密度可程式AC電源供應系統，提供三相輸出時每相輸出1800VA、2700VA、3600VA、4500VA的幾款機型。

加入洽詢

產品特點產品規格 Features Specifications

- APM SPS300VAC三相交流電源系統系列，是單相/三相輸出的高功率密度可程式AC電源供應系統，提供三相輸出時每相輸出1800VA、2700VA、3600VA、4500VA的幾款機型。
- 採用高速數位訊號處理器(DSP)及複雜的可程式邏輯元件(CPLD)控制、高頻脈衝寬度調變技術(PWM)、主動式功率因數修正(PFC)設計，不僅能提供穩定的DC/AC輸出功率，還能提供三相/單相輸出。
- 特點包括：高功率密度、高可靠性、高精度，同時，還配備大型觸控彩色顯示幕與按鍵的手動操作介面。
- 能為電氣設備模擬輸出正常或異常的電源輸入，以滿足電氣設備的測試需求。
- 應用：
  - 本系列適用於多種產業，例如電力、照明及航空業，也可應用到企業的生產測試。
- 特點：
  - 5.6吋大型觸控彩色顯示幕，功能完備、操作簡單。
  - 支援前面板USB資料匯入/匯出及擷取螢幕快照。
  - 提供AC + DC混合或獨立輸出模式，可進行直流抵補電壓模擬。
  - 能設定電壓及電流輸出限制，支援恆定電流輸出模式。
  - 能設定電壓及頻率的輸出斜率。
  - 能設定開/關相角。
  - 具有反向電流保護功能，可避免電流倒流。
  - 內建功率計，可測量每相5個電氣參數，包括電壓、電流、功率等。
  - 支援mA電流測量功能。
- 基本功能：
  - 相角/斜率可作調整：
    - 相角可作調整，適用於進行開/關機時浪湧電流的驗證測試。
    - 斜率可作調整，適用於啟動大容量電感性或電容性負載，以避免瞬間啟動設備時因大電流觸發保護，而造成斷路。
  - 輸出仿真序列及干擾模擬：
    - 提供強大的功能，可模擬電源干擾。
    - 套用LIST模式，讀出內部的序列檔，改變輸出。
    - 套用STEP模式，改變輸出數值。
    - 套用PULSE模式，編程特殊的脈衝電壓波形。
    - 上述功能方便使用者套用在測試條件中，例如週期斷電、暫態突波及輸入電壓過低等測試。
  - 高輸出電流波峰因數：
    - 突波電流可達額定電流的5-6倍，尤適於浪湧電流測試。
- 高階功能：
  - IEC標準測試：內建IEC測試標準，可直接讀出套用。
  - 三相操作及並聯模式：支援三相操作、3台儀器並聯。

機型			SPS300VAC 5400W、SPS300VAC 8100W、SPS300VAC 10800W、SPS300VAC 13500W
輸入
電壓			190~265VAC
頻率			47~63Hz
相位			3相，4線+接地線/Y型連接
最大電流			42A、60A、75A、90A(*依機型而定)
功率因數@220Vac全載輸入			≥0.99主動式PFC或≥0.98主動式PFC(*依機型而定)
效率			>87%(峰值)；>86%＠220VAC，50Hz輸入 / 230VAC，50Hz全載輸出或 >86%(峰值)；>85%＠220VAC，50Hz輸入 / 230VAC，50Hz全載輸出(*依機型而定)
三相輸出模式
AC功率(每相)			1800VA、2700VA、3600VA、4500VA(*依機型而定)
AC功率(三相)			5400VA、8100VA、10800VA、13500VA(*依機型而定)
最大電流 (有效值)	0~150V(L)		16A、27.6A、32A、46A(*依機型而定)
	0~300V(H)		8A、13.8A、16A、23A(*依機型而定)
最大電流 (峰值)	0~150V(L)		80A、165.6A、160A、184A(*依機型而定)
	0~300V(H)		40A、82.8A、80A、92A(*依機型而定)
並聯輸出模式
最大電流 (有效值)	0~150V(L)		48A、82.8A、96A、138A(*依機型而定)
	0~300V(H)		24A、41.4A、48A、69A(*依機型而定)
最大電流 (峰值)	0~150V(L)		240A、496.8A、480A、552A(*依機型而定)
	0~300V(H)		120A、248.4A、240A、276A(*依機型而定)
相位	單相
輸出
總諧波失真(THD)		在15.0～70.0Hz及輸出電壓在低範圍80～140V或高範圍160～280V以內時：＜0.5%(電阻性負載)；在70.1～500Hz及輸出電壓在低範圍80～140V或高範圍160～280V以內時：＜1.0%(電阻性負載)；在501～1000Hz及輸出電壓在低範圍100～140Vac或高範圍160～280Vac以內時：＜1.0%(電阻性負載)。
波峰因數(CF)		≤5、≤6、≤5、≤4(*依機型而定)

詳細規格、配件、軟體及選購，歡迎進一步洽詢。

- APM Three phase AC source system is a single 3-phase output programmable AC power supply which provides with high power density. With high speed DSP+CPLD control, high frequency PWM technology, active PFC design, It is able to provide not only stable DC/AC output power, but also 3-phase / 1-phase output.
- It is featured with high power density, high reliability and high precision, meanwhile it possesses operation interface of touch screen and keys manually.
- It is able to analog output normal or abnormal power input for electrical device to meet test requirements, which is applicable to electric, lighting, aviation sectors, etc. It could be applied to enterprise’s production test as well.
- Application:
  - This series is applicable to multiple sectors such as electric, lighting and aviation sectors and it could be applied to enterprise's production test as well.
- Features:
  - 5.6'' large touch color screen, possess complete functions and easy to operate.
  - Support for USB data import/export and screen snap from front panel.
  - AC+DC mixed or independent output mode for voltage DC offset simulation.
  - Capable of setting voltage and current output restriction, support for constant current output mode.
  - Capable of setting output slope of voltage and frequency.
  - Capable of setting ON/OFF phase angle.
  - With reverse current protection to avoid current flowing backward.
  - Built-in power meter, which is capable of measuring 5 electrical parameters per phase, including voltage, current, power, etc.
  - Support mA current measurement function.
- Basic Functions:
  - Adjustable Phase Angle/Slope:
    - Adjustable phase angle, applicable to verification test of ON/OFF inrush current testing.
    - Adjustable slope, applicable to start inductive or capacitive load with large capacity to avoid circuit break caused by protection that triggered by high current when instantaneously start the device.
  - Output Simulation Sequence and Disturbance Simulation:
    - Provide powerful function to simulate power line disturbance.
    - Apply LIST mode to change output by recalling inner sequence file;
    - Apply STEP mode to change output value;
    - Apply PULSE mode to program special impulse voltage waveform.
    - Functions above are convenient for user to apply in test condition such as cycle dropout, transient spike and brown out, etc.
  - High Output Current Crest Factor:
    - The surge current could reach 5-6 times of the rated current, especially suitable for inrush current testing.
- Advanced Functions:
  - IEC Standard Test: Built-in IEC Standard Test and could be recalled directly.
  - 3-Phase Operation and Parallel Mode: Support 3-phase operation, 3 units in parallel.

MODEL	SPS300VAC 5400W、SPS300VAC 8100W、SPS300VAC 10800W、SPS300VAC 13500W
INPUT
Voltage	190~265VAC
Frequency	47~63Hz
Phase	3 Phase,4Wire+Groud/Y Connect
Max.Current	42A, 60A, 75A, 90A(depends on models)
Power Factor @220Vac Input , Full Load	≥0.99 Active PFC or ≥0.98 Active PFC(depends on models)
Effieciency	>87% (Peak) >86% at 220VAC,50Hz input/230VAC,50Hz output,Full Load or >86% (Peak) >85% at 220VAC,50Hz input/230VAC,50Hz output,Full Load(depends on models)
3-Phase Output Mode
AC Power(Per Phase)		1800VA, 2700VA, 3600VA, 4500VA(depends on models)
AC Power(Total)		5400VA, 8100VA, 10800VA, 13500VA(depends on models)
Max.Current (r.m.s)	0~150V(L)	16A, 27.6A, 32A, 46A(depends on models)
	0~300V(H)	8A, 13.8A, 16A, 23A(depends on models)
Max.Current (Peak)	0~150V(L)	80A, 165.6A, 160A, 184A(depends on models)
	0~300V(H)	40A, 82.8A, 80A, 92A(depends on models)
Parallel Output Mode
Max.Current (r.m.s)	0~150V(L)	48A, 82.8A, 96A, 138A(depends on models)
	0~300V(H)	24A, 41.4A, 48A, 69A(depends on models)
Max.Current (Peak)	0~150V(L)	240A, 496.8A, 480A, 552A(depends on models)
	0~300V(H)	120A, 248.4A, 240A, 276A(depends on models)
Phase		1 phase
OUTNPUT
Total Harmonic Distortion (THD)		<0.5% (Resistive Load) at 15.0 - 70.0Hz and output voltage within the 80 - 140Vac at Low Range or the 160 - 280Vac at High Range <1% (Resistive Load) at 70.1 - 500Hz and output voltage within the 80 - 140Vac at Low Range or the 160 - 280Vac at High Range <1% (Resistive Load) at 501 - 1000Hz and output voltage within the 100 - 140Vac at Low Range or the 160 - 280Vac at High Range
Crest Factor(CF)		≤5、≤6、≤5、≤4(depends on models)

Please feel free to contact for detailed specifications, accessories, software and options.
