單通道高精度可程式交流電源供應器

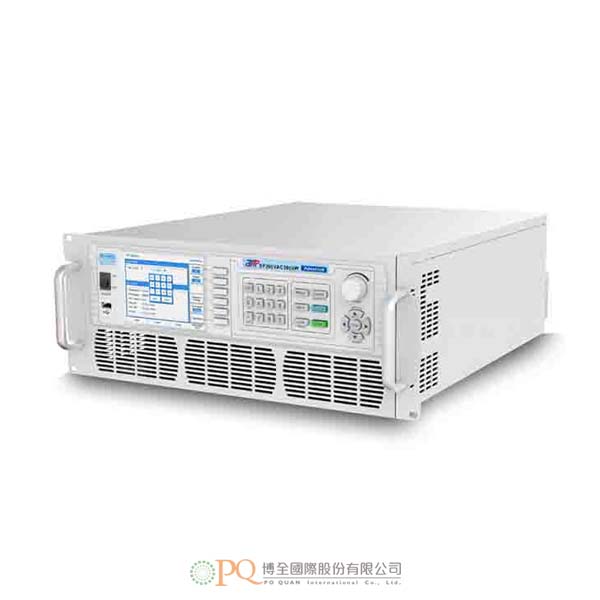

APM Programmable AC Power Supply 型號：SP300VAC 5000W Advanced|SP300VAC 5000W Professional

APM SP300VAC 5000W是開關模式、單通道輸出、高精度的可程式交流電源供應器，採用高速數位訊號處理器(DSP)及複雜的可程式邏輯元件(CPLD)控制、高頻脈衝寬度調變技術(PWM)及主動式功率因數修正(PFC)設計，可實現AC/DC的穩定輸出，提供Advanced及Professional兩款機型選擇。

加入洽詢

產品特點產品規格 Features Specifications

- APM SP300VAC 5000W是開關模式、單通道輸出、高精度的可程式交流電源供應器，採用高速數位訊號處理器(DSP)及複雜的可程式邏輯元件(CPLD)控制、高頻脈衝寬度調變技術(PWM)及主動式功率因數修正(PFC)設計，可實現AC/DC的穩定輸出，提供Advanced及Professional兩款機型選擇。
- SP300VAC 5000W的特色是具備高功率密度、高可靠性、高精度，同時，還配備彩色觸控顯示幕與按鍵的手動操作介面。
- 能為電氣設備模擬輸出正常或異常的電源輸入，以滿足電氣設備的測試需求。
- 應用：
  - 此系列適用於多種產業，例如電力、照明及航空業，也可應用到企業的生產測試。
- 特點：
  - 5.6吋大型彩色觸控顯示幕，功能完備、操作簡單。
  - 支援前面板USB資料匯入/匯出及擷取螢幕快照。
  - 提供AC + DC混合或獨立輸出模式，可進行直流抵補電壓模擬。
  - 能設定電壓及電流輸出限制，支援恆定電流輸出模式。
  - 能設定電壓及頻率的輸出斜率。
  - 能設定開/關相角。
  - 支援LIST/PLUSE/STEP模式、簡單的時間設定與循環設定，適用於電源干擾模擬測試。
  - 內建功率掃描功能。
  - 內建暫態模式。
  - 內建調光器功能。
  - 具有反向電流保護功能，可避免電流倒流。
  - 內建功率計，能測量15個電氣參數，包括電壓、電流、頻率等。
  - 支援mA電流測量功能。
  - 內建IEC61000-3-3、IEC61000-3-2、IEC61000-4-11、IEC61000-4-14、IEC61000-4-28、IEC61000-4-13標準測試需要的波形。
  - 支援最多串聯2台、並聯4台及組合3台為三相電源輸出(選購)。
- 基本功能：
  - 相角/斜率可作調整：
    - 相角/斜率可作調整，適用於進行開/關機時浪湧電流的驗證測試。
    - 此項功能適用於啟動大容量電感性或電容性負載，以避免瞬間啟動設備時的大電流。
  - 高輸出電流波峰因數：
    - 突波電流可達額定電流的5-6倍，尤適於浪湧電流測試。
  - 暫態模式：
    - 可模擬啟動或關閉電網中的瞬時高功率容量負載時，對待測設備的影響。
  - 調光調速功能：
    - 支援調光器功能，適用於電動馬達、燈具及其它產品進行調速或調光的驗證測試。
  - 輸出仿真序列及干擾模擬：
    - 能模擬電源干擾測試。
- 高階功能：
  - 輸出阻抗(專業機型適用)：支援模擬輸出阻抗。
  - 內建IEC標準測試(專業機型適用)：內建IEC測試標準，可直接讀出。
  - 放大器功能：可程式交流電源可尾隨著信號波形即時輸出。
  - 諧波/間諧波產生模擬及諧波測量(專業機型適用)：最高可達40次諧波成份，適用於干擾模擬測試。
  - 外部控制功能：可程式交流電源可以提供在PASS、FAIL及RUN測試狀態模擬下的類比輸入，使用者可從外部控制開/關、強制關機、重置及上傳7組已儲存的參數。
  - 三相操作及並聯模式：支援最多2台串聯、4台並聯及組合3台為三相電源輸出。

機型	SP300VAC 5000W Advanced、SP300VAC 5000W Professional
輸入
電壓	190～265VAC
頻率	47～63Hz
相位	單相，2線＋接地線
最大電流	30A
功率因數@220Vac 全載輸入	≥0.99主動式PFC
效率	>87% (峰值) >86%＠220VAC，50Hz輸入/220VAC，50Hz全載輸出
輸出
AC功率(每相)		5000VA
最大電流 (有效值)	0~150V(L)	46A
最大電流 (有效值)	0~300V(H)	23A
最大電流 (峰值)	0~150V(L)	184A
最大電流 (峰值)	0~300V(H)	92A
相位		單相
波峰因數(CF)		≤4
負載調節		±0.1% F.S. (電阻性負載)@15-70Hz ±0.5% F.S. (電阻性負載)@70.1-1200Hz 注意：1001~1200Hz只限專業機型
線性調節		±0.1V
電壓(AC)	範圍	0～300VAC，150V/300V/自動模式
	解析度	0.1V
	精度	0.2%設定值＋0.2% F.S.
電壓(DC)	範圍	0～424VDC
	解析度	0.1V
	精度	0.2%設定值＋0.2% F.S.
	最大功率	5000W
	最大電流 (L/H範圍)	L：32.6A H：16.3A
	上升時間/下降時間	＜180us
測量
電壓	範圍	AC： 0～300VAC，DC：0～424VDC
	解析度	0.1V
	精度	0.2%設定值＋0.2% F.S.
頻率	範圍	15～1000Hz，15～1200Hz
	解析度	0.1Hz＠15.0～99.9Hz，1Hz＠100～1000Hz； 0.1Hz＠15.0～99.9Hz，1Hz＠100～1000Hz，5Hz＠1001～1200Hz
	精度	0.1%設定值
電流(有效值)	範圍	H：0.2A～46A M：0.2A～20A L：0.1A～5A mA：0.02A～1.5A
	解析度	0.01A
	精度	H/M：0.4%＋0.6% F.S. L/mA：0.4%＋1.0% F.S.

詳細規格、配件、軟體及選購，歡迎進一步洽詢。

- SP300VAC5000W is a switching mode single-channel output high-precision programmable AC power source, which adopts high speed DSP+CPLD control, high frequency PWM power technology and active PFC design to realize AC/DC stable output. SP300VAC5000W is featured with high power density, high reliability and high precision, meanwhile it possesses operation interface of touch screen and keys manually. It is able to analog output normal or abnormal input for electrical device to meet test requirements.
- Application Area:
  - This series is applicable to multiple sectors such as electric, lighting and aviation sectors and it could be applied to enterprise's production test as well.
- Product Features:
  - 5.6” large touch color screen, possess complete functions and easy to operate.
  - Support for USB data import/export and screen snap from front panel.
  - AC+DC mixed or independent output mode for voltage DC offset simulation.
  - Capable of setting voltage and current output restriction, support for constant current output mode.
  - Capable of setting output slope of voltage and frequency.
  - Capable of setting ON/OFF phase angle.
  - Support for LIST/PLUSE/STEP mode, simple time setting and circulation setting, which is suitable for power line disturbance simulation test.
  - Built-in power sweeping function.
  - Built-in Transient mode.
  - Built-in Dimmer function.
  - With reverse current protection to avoid current flowing backward.
  - Built-in power meter, which is capable of measuring 15 electrical parameters, including voltage, current, frequency, etc.
  - Support mA current measurement function.
  - Built-in IEC61000-3-3/ IEC61000-3-2/ IEC61000-4-11/ IEC61000-4-14/ IEC61000-4-28/ IEC61000-4-13 standard test required waveform.
  - Support up to 2 units in series, 4 units in parallel and 3 units combined to 3-phase power output (optional).
- Basic Functions：
  - Adjustable Phase Angle/Slope
    - Adjustable Phase Angle/Slope is applicable to verification test of ON/OFF inrush current testing. This function is applicable to start inductive or capacitive load with large capacity to avoid high current when instantaneously start the device.
  - High Output Current Crest Factor
    - The surge current could reach 5-6 times of the rated current, especially suitable for inrush current testing.
  - Transient mode
    - Transient mode simulates the impact on test object when turn on or turn off transient high power capacity load in power grid.
  - Dimmer Function:
    - Support Dimmer function, which is applicable to conduct speed regulating or dimming verification test for electric motor, lamp and other products.
  - Output Simulation Sequence and Disturbance Simulation
  - Capable of simulating power line disturbance simulation test.
- Advanced Functions：
  - Output Impedance(Applicable to Professional Version): Support Simulating Output Impedance.
  - Built-in IEC Standard Test(Applicable to Professional Version): Built-in IEC standard test could be recalled directly.
  - Amplifier Function: The programmable AC power source could realize real time output by tail after signal waveform.
  - Harmonics/ Inter-harmonics Generate Simulation and Harmonics Measurement(Applicable to Professional Version): Up to 40 orders of harmonics components, applicable to interference simulation test.
  - External Control Function: Programmable AC power sources could provide analog input under test simulation of PASS, FALL and RUN status and user can control ON/OFF externally, force to shutdown, reset and upload 7 sets of stored parameters.
  - 3-Phase Operation and Parallel Mode: Support up to 2 units in series, 4 units in parallel and 3 units combined to 3-phase power output.

MODEL	SP300VAC 5000W Advanced, SP300VAC 5000W Professional
INPUT
Voltage	190~265VAC
Frequency	47~63Hz
Phase	1 Phase, 2Wire+Groud
Max.Current	30A
Power Factor@220Vac Input, Full Load	≥0.99 Active PFC
Effieciency	>87% (Peak) >86% at 220VAC,50Hz input/220VAC,50Hz output,Full Load
Output
AC Power(Per Phase)		5000VA
Max.Current (rms)	0~150V(L)	46A
Max.Current (rms)	0~300V(H)	23A
Max.Current (Peak)	0~150V(L)	184A
Max.Current (Peak)	0~300V(H)	92A
Phase		1 phase
Crest Factor(CF)		≤4
Load Regulation		±0.1%F.S.(Resistive Load) at 15-70Hz ±0.5%F.S.(Resistive Load) at 70.1-1200Hz Note:1001~1200Hz only available to Professional Version Models
Line Regulation		±0.1V
Voltage(AC)	Range	0~300VAC, 150V/300V/Auto Mode
	Resolution	0.1V
	Accuracy	0.2% of setting +0.2%F.S.
Voltage(DC)	Range	0~424VDC
	Resolution	0.1V
	Accuracy	0.2% of setting +0.2%F.S.
	Max. Power	5000W
	Max. Current (L/H Range)	L: 32.6A H: 16.3A
	Rise Time/ Drop Time	<180us
Measurement
Voltage	Range	AC: 0~300VAC, DC: 0~424VDC
	Resolution	0.1V
	Accuracy	0.2% of setting +0.2%F.S.
Frequency	Range	15~1000Hz, 15~1200Hz
	Resolution	0.1Hz at 15.0~99.9Hz, 1Hz at 100~1000Hz; 0.1Hz at 15.0~99.9Hz, 1Hz at 100~1000Hz, 5Hz at 1001~1200Hz
	Accuracy	0.1% of setting
Current(rms)	Range	H: 0.2A~46A M: 0.2A~20A L: 0.1A~5A mA: 0.02A~1.5A
	Resolution	0.01A
	Accuracy	H/M: 0.4%+0.6%F.S. L/mA: 0.4%+1.0%F.S.

Please feel free to contact for detailed specifications, accessories, software and options.
