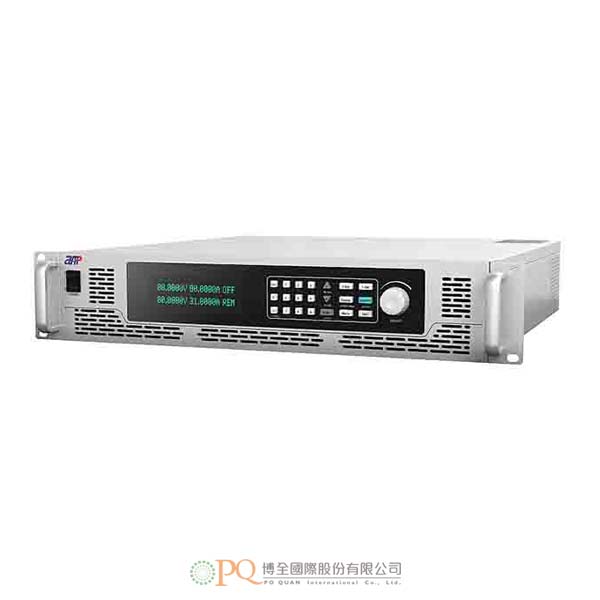

單通道高精度可程式直流電源供應器(2U型)

APM 800VDC series (2U Type) Programmable DC Power Supply 型號：SP800VDC 1000W|SP800VDC 2000W|SP800VDC 3000W|SP800VDC 4000W

操作效率達92%，在電路設計中，開關管採用零(0)電壓導體，當電路運行時，降低了設備本身承受的損傷，從而提高整體的效率，同時降低直流電源的溫升速率。相較於市面上其他類似的產品，APM可程式直流電源具有明顯的優勢。

加入洽詢

產品特點產品規格 Features Specifications

APM 800VDC (2U)系列是開關模式、單通道輸出、高精度的可程式直流電源供應器，提供多款機型選擇。
能提供穩定的直流輸出，內建電壓及電流測量功能，可滿足各種直流電源的應用要求。
應用：
- 汽車業：適用於汽車電子產品測試，能模擬不同條件下汽車的電壓波形。
- LED業：適用於LED驅動器及LED產品測試與電源燒機測試。
- 自動測試領域：可整合在自動測試系統內，以測試電力參數及為待測設備提供電源。
- 醫療領域：用於醫療設備測試或整合在醫療設備內。
- 通訊業：用於通訊電源及通訊電子裝置測試。
- 家電產品：用於家電產品測試。
- 科研領域：用於科研單位、學院、大學及認證機構的實驗室測試及作為電源。
- 航空航太領域：用於航空電子產品測試及作為電源。
特點：
- 精準的電壓與電流測量性能。
- 編碼式旋鈕及多功能鍵盤。
- 標準配備RS232/LAN/RS485/USB介面，可選購GPIB介面。
- 具遠端感測功能，可補償負載導線的電壓降。
- 獨立的數位電壓錶(DVM)測量功能(選購)。
- 編輯List波形的功能。
- 採用可程式儀器標準指令(SCPI)。
- CE認證。
產品優勢：
- 高效率：
  - 操作效率達92%，在電路設計中，開關管採用零(0)電壓導體，當電路運行時，降低了設備本身承受的損傷，從而提高整體的效率，同時降低直流電源的溫升速率。相較於市面上其他類似的產品，APM可程式直流電源具有明顯的優勢。
- 超快的響應速度：
  - APM可程式800VDC電源特有的快速壓降功能，遠遠超越市面上其它類似的產品：

無載壓升時間	≤60ms	全載壓升時間	≤60ms
無載壓降時間	≤800ms	全載壓降時間	≤60ms

數位電壓錶測量功能(選購)：
- APM可程式直流電源內建數位電壓錶獨立測量功能，可測量輸出終端輸出電壓的數值，藉由切換前面板按鈕，可將數值顯示在VFD螢幕上。此直流電源也可在實驗室測試中作為外部設備，用於測量電壓數值。
主/從控制：
- 在主從控制模式中，最多可串聯連接2台及並聯連接10台。
- 主從控制模式可以實現“一呼百應”的效果。一經設立了主從模式，“SLAVE”即鎖在主介面，並僅僅由“MASTER”控制。當“SLAVE”傳送保護模式信號時，所有的直流電源將關閉及退出主從模式。
簡單的並聯輸出：
- 當需要高輸出功率時，800VDC系列可支援最多並聯連接10台。
串聯模式功能：
- 800VDC系列可支援透過RS485匯流排通訊介面串聯連接最多31台。
- 此模式可從一部個人電腦同步控制所有通過RS485匯流排連接的DC電源，方便使用者輕鬆監控操作。

機型	SPS800VDC1000W、SP800VDC2000W、SP800VDC3000W、SP800VDC4000W
輸入電壓範圍	90～265VAC、190～265VAC、190～265VAC、190～265VAC
輸入頻率範圍	47～63Hz
功率因數	＞0.98
輸入功率	1300VA(MAX)、2400VA(MAX)、3400VA(MAX)、4500VA(MAX)
輸出電壓範圍	0～800V
輸出電流範圍	0～7.5A
電壓負載調節	200mV
電流負載調節	20mA
電壓設定精度	0.05%＋200mV
電流設定精度	0.1%＋7.5mA
電壓測量精度	0.05%＋200mV
電流測量精度	0.1%＋7.5mA
電壓漣波	800mVp-p/200mVrms
電流漣波	25mA(滿量程)，10mA(典型數值)
電壓溫度係數	100ppm/℃
電流溫度係數	150ppm/℃
DVM解析度(選購)	12mV
DVM精度(選購)	0.05%+200mV
遠端補償	5V MAX
負載暫態響應時間	≤ 3ms
指令響應時間	50ms
效率(全載)	85%、91%、91%、92%
保護功能	過壓、過流、過溫、過功率、短路保護
重量	14.7kg
通訊模式	標準：RS232、RS485、USB、LAN或搭配選購：RS232、RS485、USB、LAN、GPIB
操作環境	溫度0～40℃，10%～90% RH，無凝露

詳細規格、配件、軟體及選購，歡迎進一步洽詢。

800VDC series product is a switching mode single-channel output high-precision programmable DC power supply. It can meet various demands for the application of DC power supply with stable DC output and built-in voltage & current measurement capability.
Areas of Application:
- Automobile Sector: Used for automobile electronics product testing, and simulation of the voltage waveform of automobile under different conditions.
- LED Sector: Used for LED driver and LED product testing and burn-in test.
- Automatic Testing Sector: Can be integrated in automatic testing system to test electricity parameters, and to supply power to the products under testing.
- Medical Field: Used for medical device testing or it being integrated in medical equipment.
- Communication Sector: Used for the tests of communication power supply and electronic devices.
- Household Field: Used for household products test.
- Scientific Research Sector: Used in scientific research units, colleges & universities, and certification institutions for laboratory testing and power supply.
- Aerospace Sector: Used for aviation electronic products testing and power supply.
Product Features:
- With accurate voltage and current measurement capability.
- Coded knobs, multifunctional keyboard.
- Standrad RS232/LAN/RS485/USB interface,GPIB is optional.
- Remote sensing to compensate for voltage drop in load leads.
- DVM independent measurement functions.
- Function of editing List waveform.
- Use SCPI commands.
- CE certified.
Product Advantages:
- High efficiency
  - APM programmable 800VDC source has an operating efficiency of up to 92%. In the circuit design, switch tube is using zero (0) voltage conductor and when the circuit is running, the damage inflicted on the device itself is reduced, and subsequently increase the overall efficiency while lowering the rate of temperature rise of the DC source. Compare with other similar types of product in markets, APM Technologies' programmable DC source has an obvious advantage.
- Ultrafast Respond Time
  - The unique fast drop function makes the response of APM programmable 800VDC source much better than that of any other similar products available on the market.

No load voltage rise time	≤60ms	Full load voltage rise time	≤60ms
No load voltage drop time	≤800ms	Full load voltage drop time	≤60ms

DVM measurement function
- APM programmable DC source's built-in DVM independent measurement function can measure the value of output voltage at the output terminal, and display the value at VFD screen by switchover the front-panel buttons. The DC source can also be used as external equipment in laboratory testing to measure the voltage values.
Master/Slave Control
- In the master-slave control mode, up to 2 units in series and 10 units in parallel.
- Master-slave control mode can realize the effect as “a hundred responses to a (single) call”. Once the master-slave mode is settled, “SLAVE” will be locked in the main interface and exclusively controlled by “MASTER”. When there is a “SLAVE” signaling of protection mode, all the DC sources will turn off and exit master-slave mode.
Simple parallel output
- When high output power is required, 800VDC series can support up to 10 units in parallel.
Series Mode Functions
- This 800V series can support RS485 BUS communication interface, up to 31 units.
- It can simultaneously control all the DC sources connected via RS485 bus from one PC, which is easy for users to monitor operation.

Mode	SPS800VDC1000W, SP800VDC2000W, SP800VDC3000W, SP800VDC4000W
Input Voltage Range	90-265VAC, 190-265VAC, 190-265VAC, 190-265VAC
Input Frequency Range	47-63Hz
Power Factor	>0.98
Input Power	1300VA(MAX), 2400VA(MAX), 3400VA(MAX), 4500VA(MAX)
Output Voltage Range	0-800V
Output Current Range	0-7.5A
Voltage Load Regulation	200mV
Current Load Regulation	20mA
Voltage Setting Accuracy	0.05%+200mV
Current Setting Accuracy	0.1%+7.5mA
Voltage Measurement Accuracy	0.05%+200mV
Current Measurement Accuracy	0.1%+7.5mA
Voltage Ripple	800mVp-p/200mVrms
Current Ripple	25mA (Full Range), 10mA (TYP value)
Voltage Temperature Coefficient	100ppm/℃
Current Temperature Coefficient	150ppm/℃
DVM Resolution(optional)	12mV
DVM Accuracy(optional)	0.05%+200mV
Remote Compensation	5V MAX
Load Transient Response Time	≤ 3ms
Command Response Time	50ms
Efficiency(Full Load)	85%, 91%, 91%, 92%
Protection Function	OVP/OCP/OTP/OPP/SCP
Weight	14.7kg
Communication Modes	Standard：RS232/RS485/USB/LAN, Option：RS232/RS485/USB/LAN/GPIB
Operating Environment	Temperature 0~40℃,Relative Humidity 10%~90%(no condensation)

Please feel free to contact for detailed specifications, accessories, software and options.
