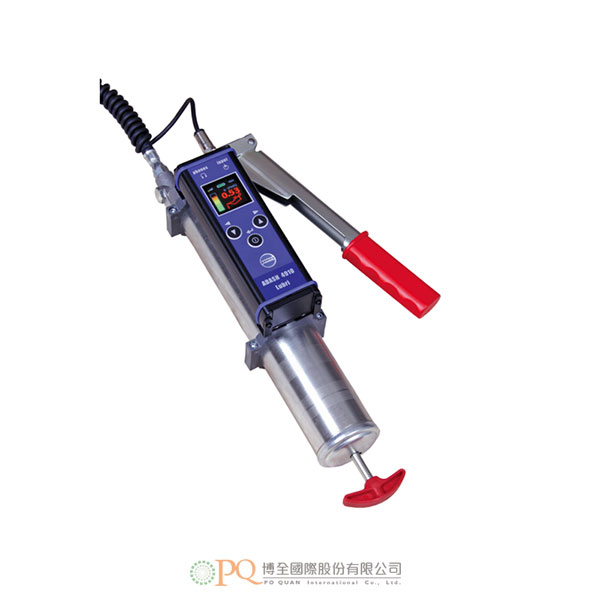

A4910 Lubri 狀態監測裝置
型號：A4910 Lubri
A4910 Lubri是一種用於監測和控制潤滑過程的維護工具。A4910 Lubri測量實際的軸承潤滑狀態，並在潤滑狀態達到最佳時通知操作者。
應用A4910 Lubri可以延長軸承的使用壽命並節省潤滑劑。可以連接耳機來聆聽軸承的狀況。
A4910 Lubri操作簡單，還能對軸承狀況進行基本測量和診斷。現在，A4910 Lubri可以存儲數據，也可以進行路線測量。
應用A4910 Lubri可以延長軸承的使用壽命並節省潤滑劑。可以連接耳機來聆聽軸承的狀況。
A4910 Lubri操作簡單，還能對軸承狀況進行基本測量和診斷。現在，A4910 Lubri可以存儲數據，也可以進行路線測量。
-
A4910 Lubri是一種用於監測和控制潤滑過程的維護工具。A4910 Lubri測量實際的軸承潤滑狀態，並在潤滑狀態達到最佳時通知操作者。應用A4910 Lubri可以延長軸承的使用壽命並節省潤滑劑。可以連接耳機來聆聽軸承的狀況。

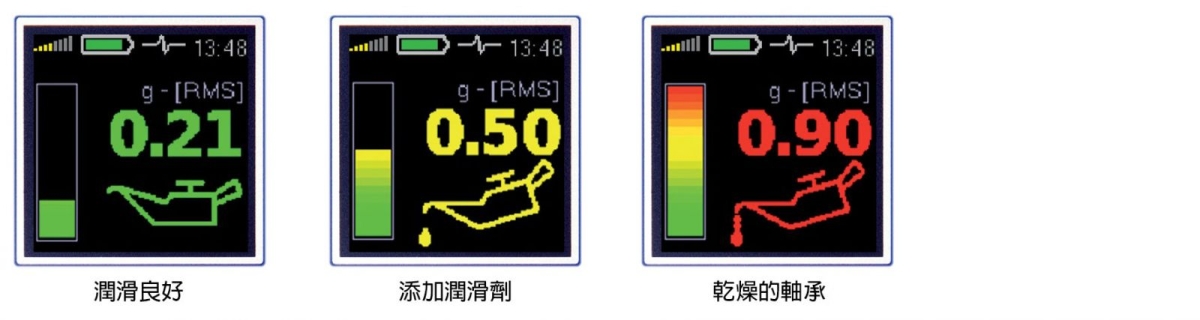

基本模式
以交通燈顏色顯示的數值
告訴你何時添加潤滑劑

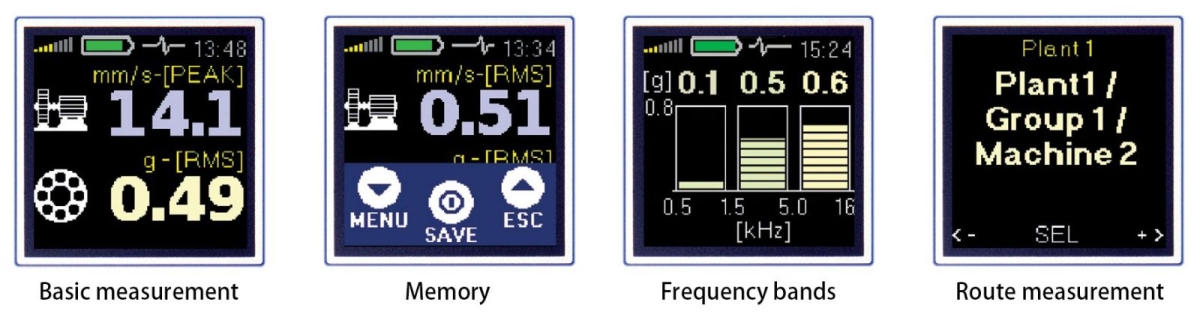

進階模式
進階模式使用戶能夠測量機器振動、軸承狀態並使用內部記憶功能。
-
Input: 1x ICP® powered accelerometer with 100 mV/g sensitivity Output: 1x AC signal 8 Ω / 0,5 W for external headphones (signal listening) Measurements: Acceleration RMS 500 - 16 000 Hz [g]
Acceleration Peak 500 - 16 000 Hz [g]
Velocity RMS 10 - 1 000 Hz [mm/s, ips]
Velocity Peak 10 - 1 000 Hz [mm/s, ips]
Acceleration frequency bands 500-1 500Hz, 1 500-5 000Hz, 5 000 - 16 000 Hz [g]Memory: 4 MB Data storing: Off-Route
Route with DDS software (free download)Interface: USB 3.0, 2.0 compatible Software: Free version of DDS software (limited database size) Display: Colour graphic OLED display 128x128 pixels, diagonal 1.5“ (38 mm) Power: 2 x 1,5V (AA alkaline batteries) or 2 x 1,2V (NiMH AA rechargeable batteries) Dimensions: 150 x 60 x 35 mm Weight: 330 g including batteries (without cable, sensor and magnet) -
The A4910 Lubri is a maintenance tool used for monitoring and control of the lubrication process. The A4910 Lubri measures the actual bearing lubrication status and informs the operator when the lubrication state is optimal. Application of the A4910 Lubri extends the bearing lifetime and saves lubricants. Headphones can be connected to listen to the bearing condition.The A4910 Lubri is simple to operate and also enables you to perform basic measurements and diagnoses of bearing condition. Now the A4910 Lubri can store the data and perform route measurements as well.
Please see more at www.adash.com and come back to us for further assistance with your purchase.
BASIC mode
Values in traffic light colours
tell you when to add th e grease
Advanced mode
The advanced mode enables the user to measure machine vibrations, bearing condition an d to use th e memory.
-
Input: 1x ICP® powered accelerometer with 100 mV/g sensitivity Output: 1x AC signal 8 Ω / 0,5 W for external headphones (signal listening) Measurements: Acceleration RMS 500 - 16 000 Hz [g]
Acceleration Peak 500 - 16 000 Hz [g]
Velocity RMS 10 - 1 000 Hz [mm/s, ips]
Velocity Peak 10 - 1 000 Hz [mm/s, ips]
Acceleration frequency bands 500-1 500Hz, 1 500-5 000Hz, 5 000 - 16 000 Hz [g]Memory: 4 MB Data storing: Off-Route
Route with DDS software (free download)Interface: USB 3.0, 2.0 compatible Software: Free version of DDS software (limited database size) Display: Colour graphic OLED display 128x128 pixels, diagonal 1.5“ (38 mm) Power: 2 x 1,5V (AA alkaline batteries) or 2 x 1,2V (NiMH AA rechargeable batteries) Dimensions: 150 x 60 x 35 mm Weight: 330 g including batteries (without cable, sensor and magnet)
