A4900 Vibrio M Ex振動分析儀 (防爆機型)
型號：A4900 Vibrio M Ex-

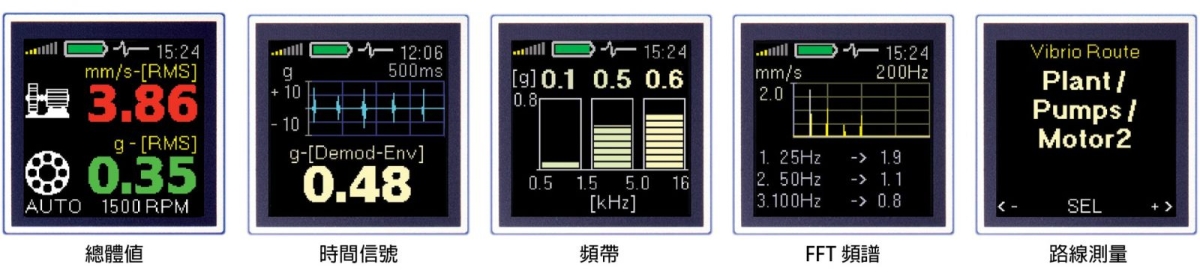

Vibrio M 現在也提供 Ex 版本。所有基本的振動診斷測量均可用：總體值、FFT 頻譜、時間信號、頻帶、路線測量或專家系統。您可以使用每個裝置附帶的耳機收聽信號。Vibrio M Ex 可與 DDS 軟體進行連結，您可以從 Adash 網站免費下載該軟體。
訪問Adash官網，查看更多可靠性設備。防爆認證：： II 2 G Ex ib IIC T4 Gb
II 預期使用於礦井/區以外之爆炸性危險區域 2 適用於 Zone 1 (氣體/ Gas) G 氣體 (Gas) Ex ib 防護原理：本質安全 EN 60079-11，Zone 1 IIC 類氣體，代表性氣體是氫氣和乙炔 T4 設備最高表面溫度不超過135°C Gb 設備保護級別，用在 Zone 1 和 Zone 2
適用於 Vibrio M Ex 的免費 DDS 軟體
測量結果
>> ISO 值 [mm/s, ips]
>> 承載值 [g]
>> 包括 ISO 10816-3
>> 自動測速

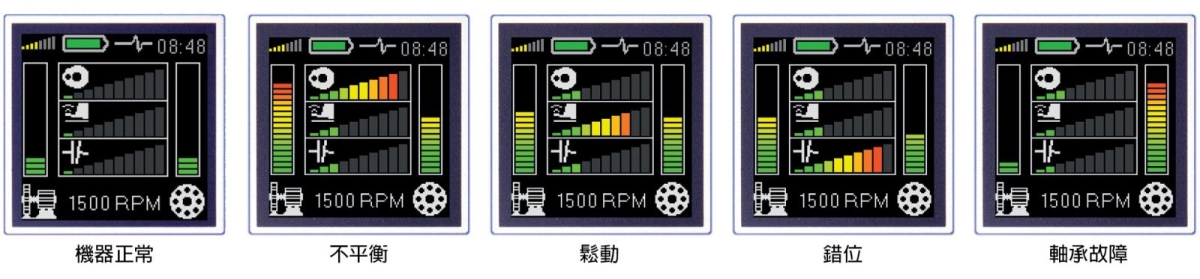

專家體系>> 實現現場機器故障自動檢測 -
Input: 1 x ICP® powered Ex accelerometer (AC90x or AC91x) Input range: 60 g PEAK with standard 100 mV/g sensor Measurements: Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
Velocity PEAK: 10 - 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 - 16 000 Hz [g]
Acceleration Peak: 500 - 16 000 Hz [g]
Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples*
Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 - 16 000 Hz [g], 2048 samples*
Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]*
Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines, range 400 Hz*
Displacement RMS: 2 - 100 Hz [µm, mil]
Displacement 0-Peak: 2 - 100 Hz [µm, mil]
Displacement Peak-Peak: 2 - 100 Hz [µm, milOther functions: Vibration stethoscope Memory: 4 MB for data
900 measurements of 800 line spectra or 2048 sample time signals may be storedData storing: Off-Route
Route with DDS software for Vibrio M Ex (free download)Interface: USB 2.0 compatible Software: DDS software for Vibrio M Ex (free download) Display: Colour graphic OLED display 128 x 128 pixels, diagonal 1.5" (38 mm) Output: 1 x AC signal 8 Ω / 0,5 W for external headphones (signal listening) Power: 2 x AA 1.5V batteries (Energizer L91 Ultimate Lithium - 7 hours operation） Temperature: Operating: -20°C to 50°C Dimensions: 150 x 60 x 35 mm Weight: 330 g including batteries (without cable, sensor and magnet)
540 g including batteries, cable, sensor and magnetAccessories: Ex vibration sensor (AC90x or AC91x), coiled cable to connect vibration sensor, magnetic base for vibration sensor, headphones with 3.5 mm jack, special USB cable, measuring tip for manual pressure on the sensor, transport case, USB flash disc with the manual
II 2 G Ex ib IIC T4 Gb:
II
2
G
Ex ib
IIC
T4
GbNon-mining
Zone 1
Gas atmosphere
Principle of protection: Intrinsic Safety EN 60079-11 , Zone 1
Gas group - Acetylene, Hydrogen
Temperature class 135°C
Equipment Protection Level – Zone 1 (high protection)*available in DDS software for Vibri
-

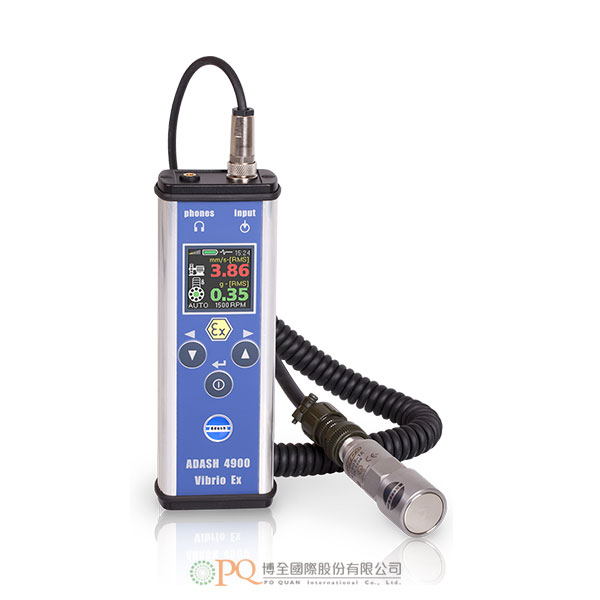

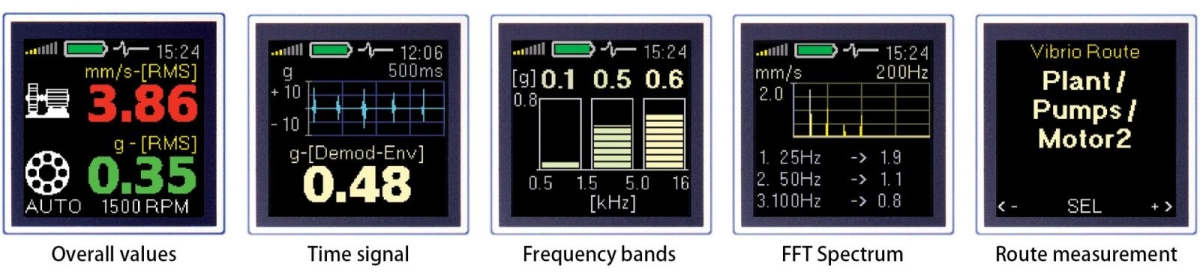

The Vibrio M is now also avaliable in an Ex version. All basic vibrodiagnostics measurements are available : Overall Values, FFT Spectrum, Time signal, Frequency bands, Route measurement or Expert system. You can listen to the signal with the headphones supplied with every unit.The Vibrio M Ex comunicates with the DDS software, which you can download for free from the Adash website.
Please see more at www.adash.com and come back to us for further assistance with your purchase.
Ex certification:: II 2 G Ex ib IIC T4 GbII Non-mining 2 Zone 1 G Gas atmosphere Ex ib Principle of protection：Intrinsic Safety EN 60079-11 , Zone 1 IIC Gas group - Acetylene, Hydrogen T4 Temperature class 135°C Gb Equipment Protection Level – Zone 1(high protection)

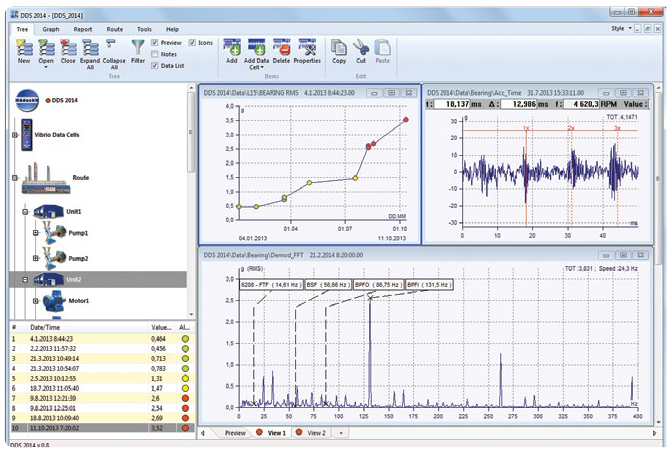

Free DDS software for Vibrio M Ex
Measurements
>>ISO value [mm/s, ips]
>> Bearing value [g]
>>ISO 10816-3 included
>> Automatic speed detection

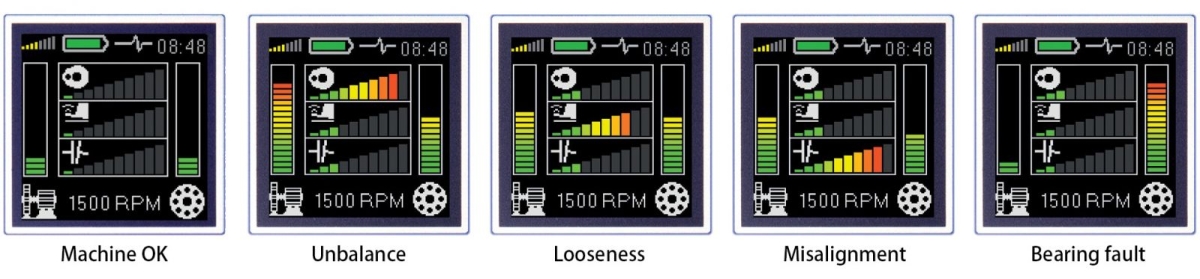

Expert system
>> Enables automatic machine fault detection on site -
Input: 1 x ICP® powered Ex accelerometer (AC90x or AC91x) Input range: 60 g PEAK with standard 100 mV/g sensor Measurements: Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
Velocity PEAK: 10 - 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 - 16 000 Hz [g]
Acceleration Peak: 500 - 16 000 Hz [g]
Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples*
Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 - 16 000 Hz [g], 2048 samples*
Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]*
Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines, range 400 Hz*
Displacement RMS: 2 - 100 Hz [µm, mil]
Displacement 0-Peak: 2 - 100 Hz [µm, mil]
Displacement Peak-Peak: 2 - 100 Hz [µm, milOther functions: Vibration stethoscope Memory: 4 MB for data
900 measurements of 800 line spectra or 2048 sample time signals may be storedData storing: Off-Route
Route with DDS software for Vibrio M Ex (free download)Interface: USB 2.0 compatible Software: DDS software for Vibrio M Ex (free download) Display: Colour graphic OLED display 128 x 128 pixels, diagonal 1.5" (38 mm) Output: 1 x AC signal 8 Ω / 0,5 W for external headphones (signal listening) Power: 2 x AA 1.5V batteries (Energizer L91 Ultimate Lithium - 7 hours operation） Temperature: Operating: -20°C to 50°C Dimensions: 150 x 60 x 35 mm Weight: 330 g including batteries (without cable, sensor and magnet)
540 g including batteries, cable, sensor and magnetAccessories: Ex vibration sensor (AC90x or AC91x), coiled cable to connect vibration sensor, magnetic base for vibration sensor, headphones with 3.5 mm jack, special USB cable, measuring tip for manual pressure on the sensor, transport case, USB flash disc with the manual
II 2 G Ex ib IIC T4 Gb:
II
2
G
Ex ib
IIC
T4
GbNon-mining
Zone 1
Gas atmosphere
Principle of protection: Intrinsic Safety EN 60079-11 , Zone 1
Gas group - Acetylene, Hydrogen
Temperature class 135°C
Equipment Protection Level – Zone 1 (high protection)*available in DDS software for Vibri
