A4404 SAB 信號分析儀器

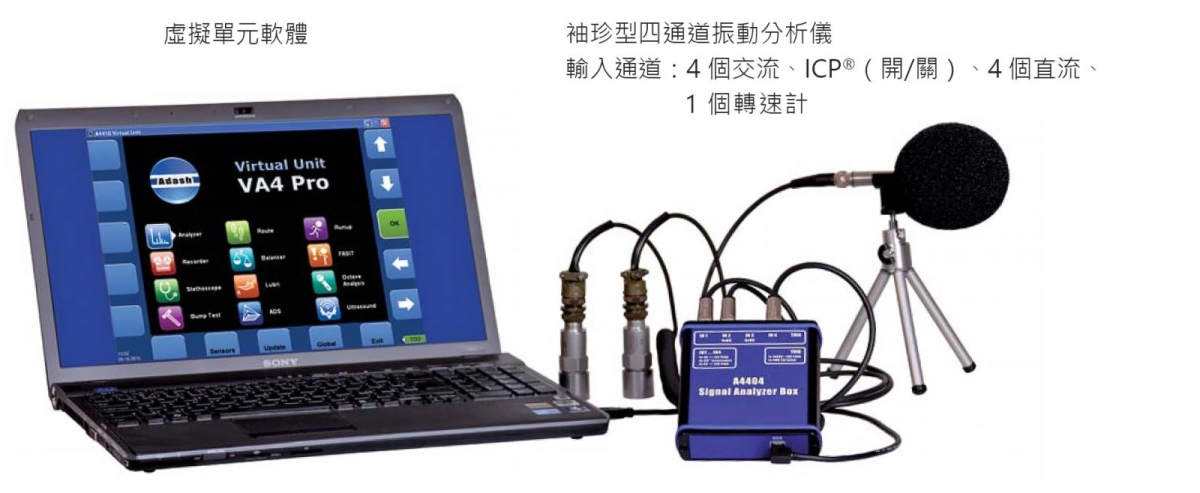

型號：A4404 SAB通過USB將A4404 - SAB連接到任何一台電腦，並使用該設備進行數據分析、收集和記錄振動信號。該儀器通過動態平衡、上升和下降測量以及聲學測量模式的模塊得到加強。同時，該儀器配備了Adash所開發的專家系統，可以自動檢測機械故障。
該儀器由USB連接直接供電，因此不需要外部電源。
-

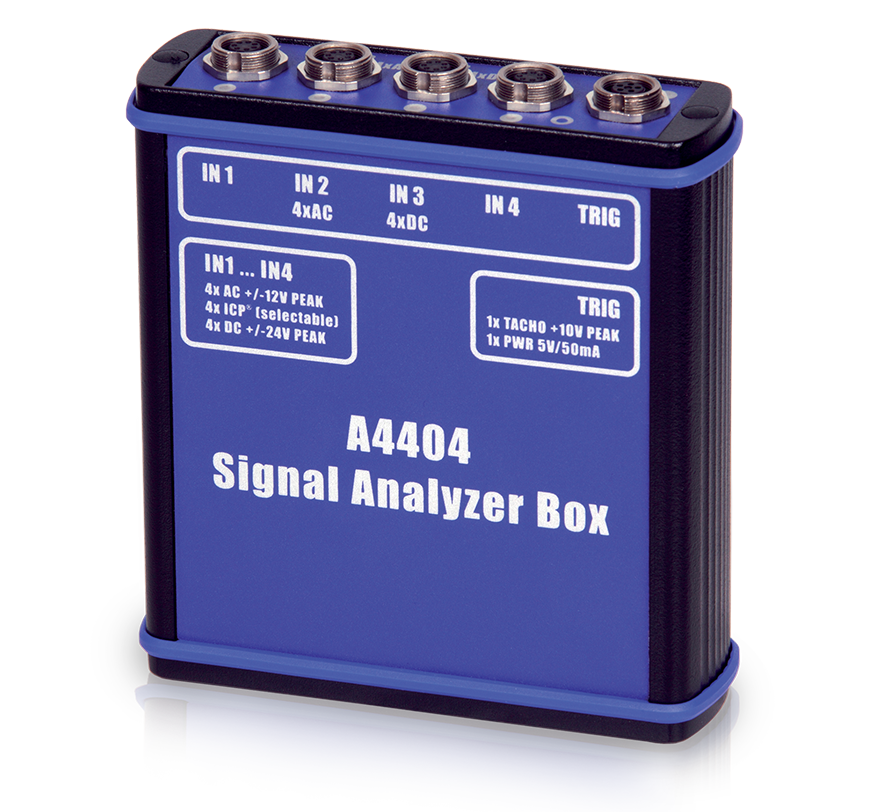

A4404 - SAB是一個袖珍型四通道振動分析儀。
通過USB將A4404 - SAB連接到任何一台電腦，並使用該設備進行數據分析、收集和記錄振動信號。該儀器通過動態平衡、上升和下降測量以及聲學測量模式的模塊得到加強。同時，該儀器配備了Adash所開發的專家系統，可以自動檢測機械故障。
該儀器由USB連接直接供電，因此不需要外部電源。
訪問Adash官網，查看更多可靠性設備。
-
Input channels:
4 AC, ICP® power supply on/off
4 DC for process values
1 TACHO for external triggerInput range: AC +/- 12 V peak-peak
DC +1-24V
AD conversion:
24 bit, 64 bit internal signal processing
No AutoGain function!
Dynamic range S/N: 120 dB Frequency ranges (-3 dB): Maximum range: 0.35 Hz - 90 kHz (1 Ch, 194 kHz sampling)
Maximum range: 0.35 Hz - 25 kHz (4 Ch, 64 kHz sampling)
Minimum range: 0.35 Hz - 25 Hz (4 Ch, 64 Hz sampling)
Sampling mode: Fully simultaneous for 4 channels FFT resolution: Min. 100 lines
Max. 3 276 800 lines

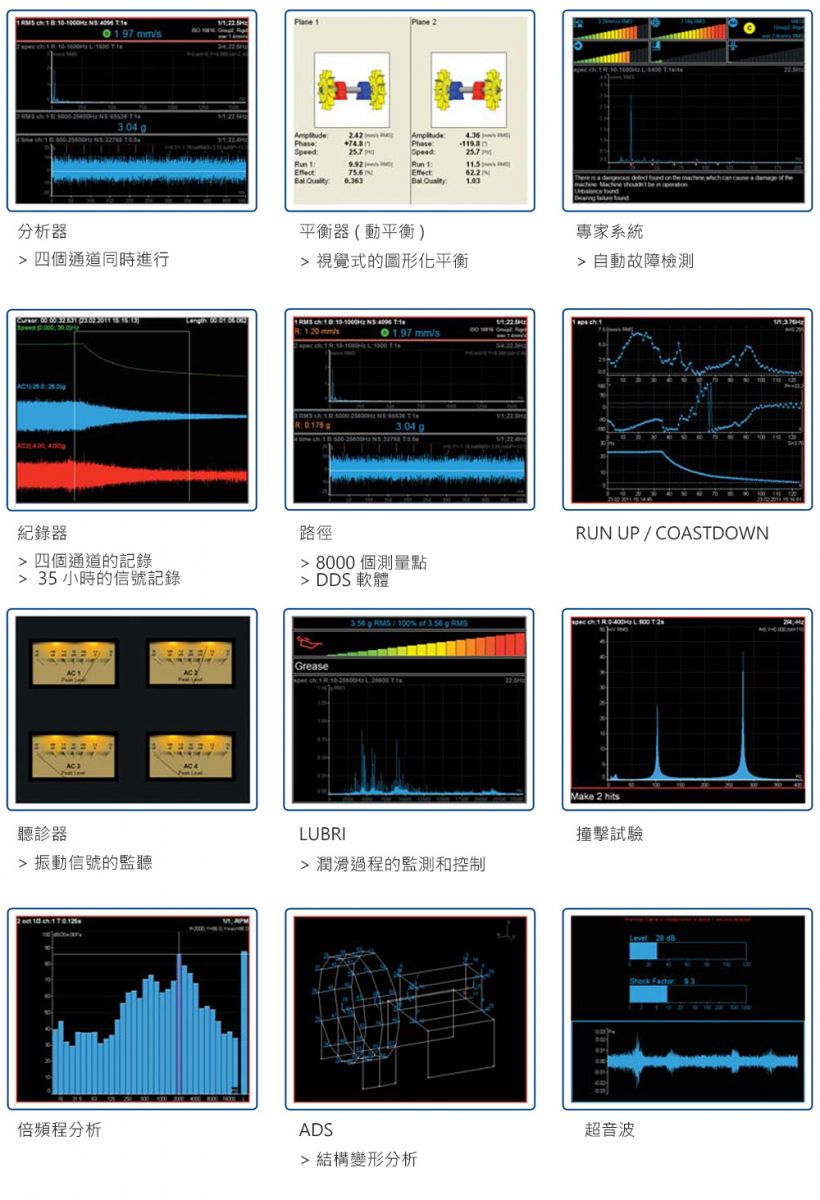

Unit modes: Analyzer - analytic measurement
Data collector - route measurement
Balancer - on-site balancing
Recorder - signal recording
Stethoscope
FASIT - Expert system for fault detection
Octave analyzer
Bump test
ADS - Animated Deflection Shapes
Ultrasound
Processor: According to the PC
Memory, Route: According to the PC hard drive Data processing: Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
Order analysis
RPM measurement
User band pass analysis
DC measurement
Orbit measurement
Signal recorder: 64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
4 Ch total recording - 35 hours
Trigger: Manual, External, Signal level, Time
Use for signal recording trigger
Speed change, Time interval
Communication: USB Temperature range: -10C to +50"c Power: USB powered Case: Aluminium heavy duty Size & Weight: 110 x 115 x 35 mm, 350 g -

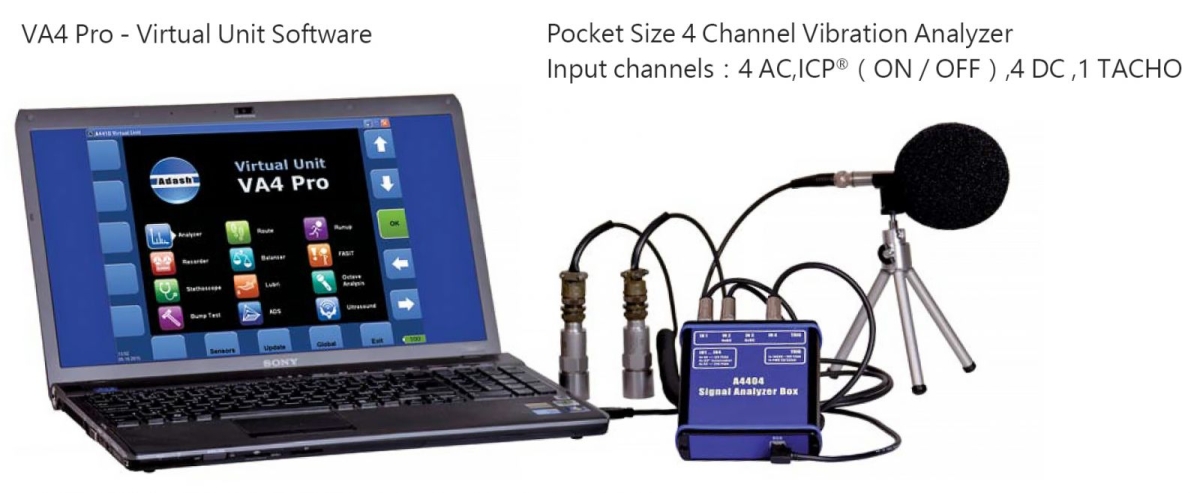

The A4404 - SAB is a pocket sized 4 channel vibration analyzer.
Connect the A4404 - SAB to any computer by USB and use the unit for data analysing, collecting and the recording of vibration signals.The instrument is enhanced by modules for dynamic balancing, measurement of run up and coast down and acoustic measurement mode. The instrument is equipped with an expert system developed by Adash, which automatically detects
machinery faults.The instrument is powered directly by USB connection so no external power is needed.
Please see more at www.adash.com and come back to us for further assistance with your purchase.
-
Input channels:
4 AC, ICP® power supply on/off
4 DC for process values
1 TACHO for external triggerInput range: AC +/- 12 V peak-peak
DC +1-24V
AD conversion:
24 bit, 64 bit internal signal processing
No AutoGain function!
Dynamic range S/N: 120 dB Frequency ranges (-3 dB): Maximum range: 0.35 Hz - 90 kHz (1 Ch, 194 kHz sampling)
Maximum range: 0.35 Hz - 25 kHz (4 Ch, 64 kHz sampling)
Minimum range: 0.35 Hz - 25 Hz (4 Ch, 64 Hz sampling)
Sampling mode: Fully simultaneous for 4 channels FFT resolution: Min. 100 lines
Max. 3 276 800 lines

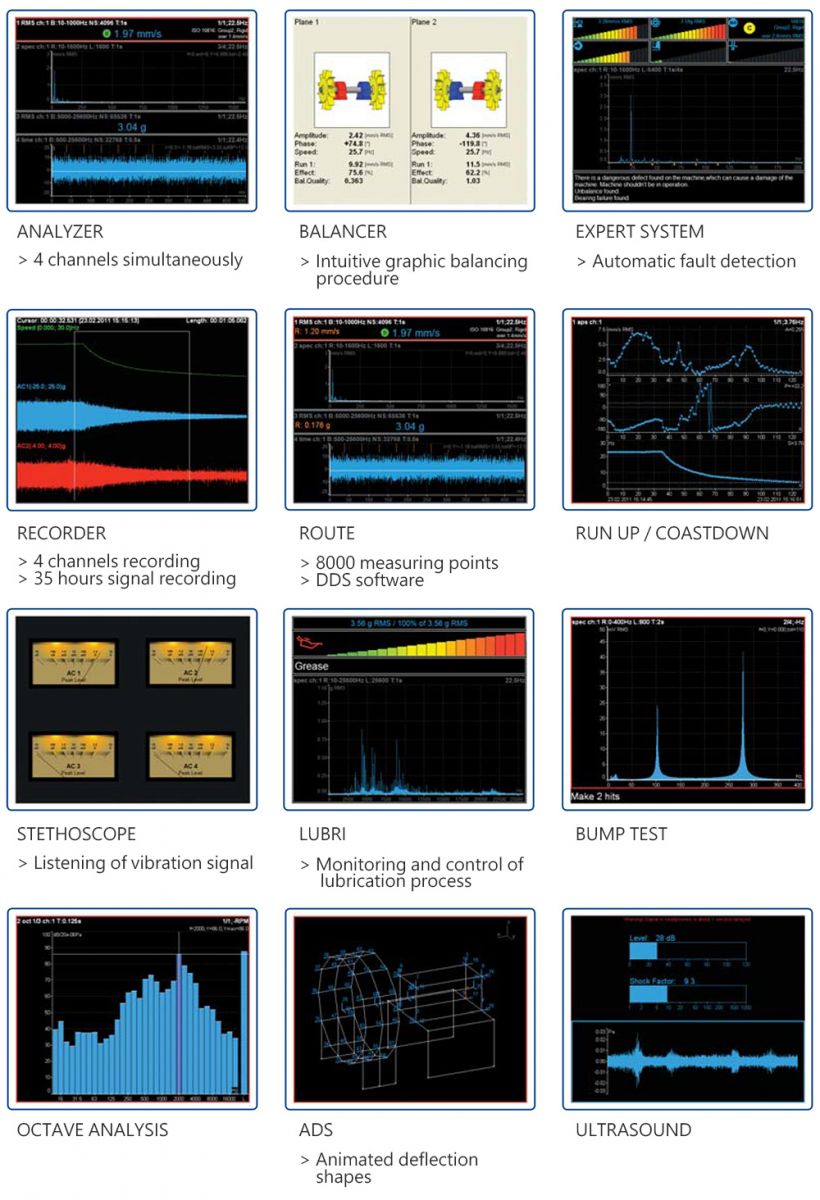

Unit modes: Analyzer - analytic measurement
Data collector - route measurement
Balancer - on-site balancing
Recorder - signal recording
Stethoscope
FASIT - Expert system for fault detection
Octave analyzer
Bump test
ADS - Animated Deflection Shapes
Ultrasound
Processor: According to the PC
Memory, Route: According to the PC hard drive Data processing: Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
Order analysis
RPM measurement
User band pass analysis
DC measurement
Orbit measurement
Signal recorder: 64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
4 Ch total recording - 35 hours
Trigger: Manual, External, Signal level, Time
Use for signal recording trigger
Speed change, Time interval
Communication: USB Temperature range: -10C to +50"c Power: USB powered Case: Aluminium heavy duty Size & Weight: 110 x 115 x 35 mm, 350 g
