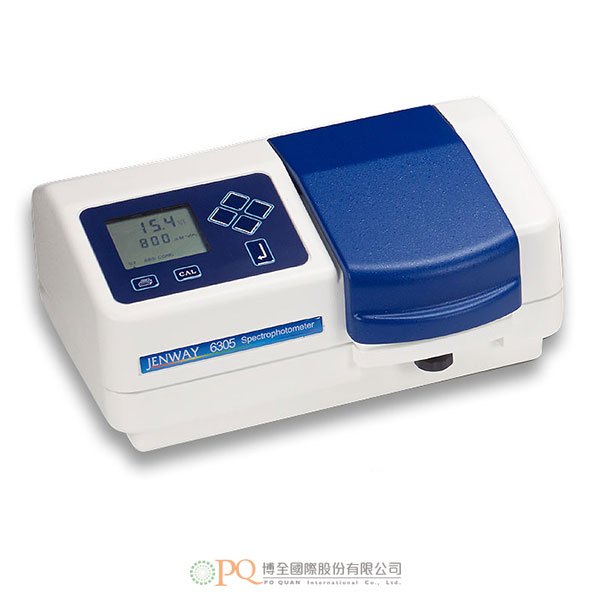

6300 and 6320D Visible and 6305 紫外/可見光光譜儀
6300 and 6320D Visible and 6305 UV/Vis Spectrophotometers 型號：6300/05/20D- Wavelength range of 320 to 1000nm (6300 and 6320D) or 198 to 1000nm (6305)
- Absorbance, %T and concentration modes
- Multi-parameter display with wavelength and photometric readouts
- Wide range of sampling accessories
- Domed lid of 6320D accepts tubes up to 105mm tall
- 6305 utilises a high quality pulsed xenon lamp
-
The 6300 and 6305 visible and UV/visible spectrophotometers are high quality, low cost units for spectrophotometric applications in schools and colleges, as well as in QC and testing procedures for a wide variety of services and industries. The 6320D is based on the 6300 visible spectrophotometer platform and includes a domed lid which accepts taller tubes up to a height of 105mm.
- Wavelength range of 320 to 1000nm (6300 and 6320D) or 198 to 1000nm (6305)
- Absorbance, %T and concentration modes
- Multi-parameter display with wavelength and photometric readouts
- Wide range of sampling accessories
- Domed lid of 6320D accepts tubes up to 105mm tall
- 6305 utilises a high quality pulsed xenon lamp
-
Parameter 6300 and 6320D 6305 Wavelength range 320 to 1000nm 198 to 1000nm Wavelength resolution 1nm 1nm Wavelength accuracy ±2nm ±2nm Spectral bandwidth 8nm 8nm, 6nm over UV range Transmittance 0 to 199.9%T 0 to 199.9%T Absorbance –0.300 to 1.999A –0.300 to 1.999A Accuracy ±1%T ±1%T Resolution 0.1%T, 0.001A 0.1%T, 0.001A Stray light <0.5%T <0.5%T at 220 and 340nm Noise <1% <0.001A at 0A at 400nm Stability 1%/h after 15 minutes <0.002A/h after 30 minutes Concentration range –300 to 1999 –300 to 1999 Concentration resolution 0.1 to 1 0.1 to 1 Units ppm, mg/l, g/l, M, %, blank ppm, mg/l, g/l, M, %, blank Factor 0 to 199.9, 1000 to 9999 0 to 199.9, 1000 to 9999 Light source Tungsten halogen lamp Xenon lamp Outputs Analogue and RS232 Analogue and RS232 Power <50W <50W Size (w x d x h) 365 x 272 x 160mm 365 x 272 x 160mm Weight 6kg 6kg
