Heating Tapes

•

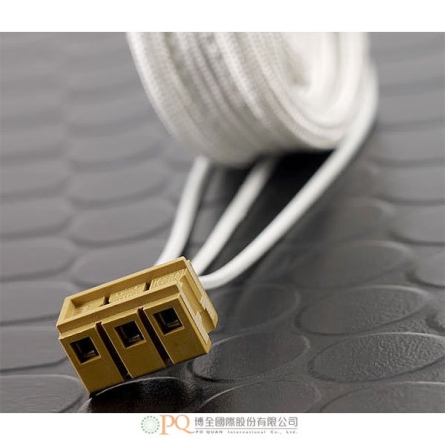

  HT9 Glass Fibre Heating Tapes

  HT9 Glass Fibre Heating Tapes

  HT9 Glass Fibre Heating Tapes

  • For high wattage applications
  • has a braided earth wire beneath the outer sheath
  • Operational temperature range up to 450°C
  • Cord is spiralled around the tube being heated to give a surface loading power concentration up to 0.62W/cm
  • Linear Loading: 164W/m (50W/ft)
  • Available in different lengths from 2 feet (61cm) to 32 feet (976cm)
  • Insulated unheated flexible lead at each end (9cm)
  • Approximate width of 25mm
  • All models have a voltage choice of 230V or 115V (except for HT95524 and HT95532 models which are available as 230V only)
  • For use in dry conditions only
  • Use of MC227 1-Way Controller, MC228X1 1-Way Controller or MC810B digital controller is recommended
