測試治具－光學分析測試電池

•

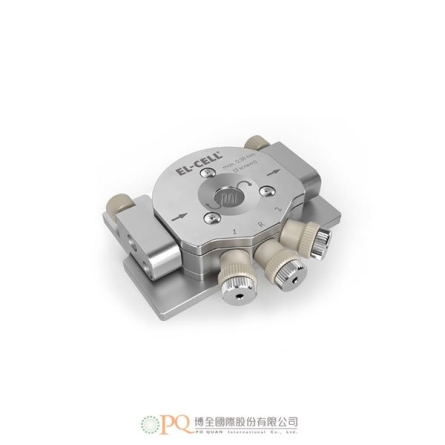

  ECC-Opto-10

  ECC-Opto-10

  ECC-Opto-10

  Next generation battery test cell for operando characterization of electrodes using optical methods such as light microscopy or Raman spectroscopy in reflection mode.

  • High cycling stability due to improved sealing concept
  • Low profile design for use with light microscopes
  • Dedicated sample holders for different electrode arrangements available

  加入諮詢

  加入諮詢
•

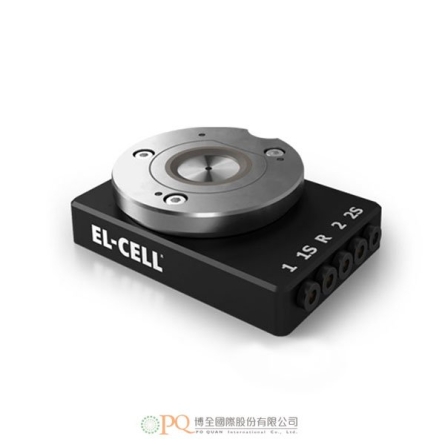

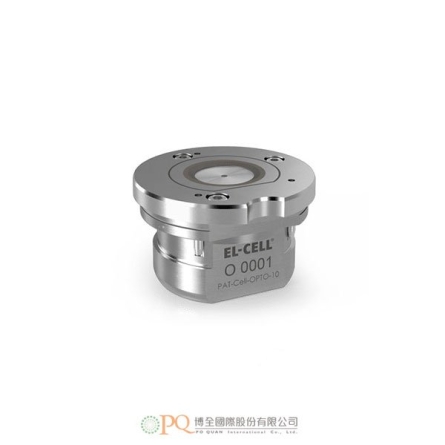

  PAT-Cell-Opto-10

  PAT-Cell-Opto-10

  PAT-Cell-Opto-10

  Next generation PAT series test cell for operando characterization of electrodes using optical methods such as light microscopy or Raman spectroscopy in reflection mode.

  • High cycling stability due to improved sealing concept
  • Electrodes are easily accessible for post-mortem analysis
  • Dedicated sample holders for different electrode arrangements available
  • Cableless cell connection via PAT socket

  加入諮詢

  加入諮詢
•

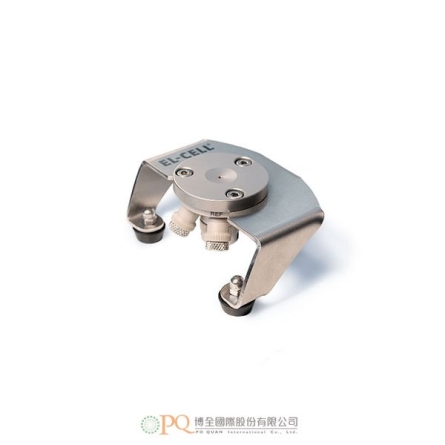

  ECC-Opto-Std

  ECC-Opto-Std

  ECC-Opto-Std

  Test cell for optical and X-ray characterization in the reflective mode – with face-to-face arrangement of electrodes.

  • Adjustable, reproducible and homogeneous mechanical pressure on electrodes
  • Electrodes are easily accessible for post-mortem analysis
  • Easy and reliable electrolyte filling upon assembly

  加入諮詢

  加入諮詢
•

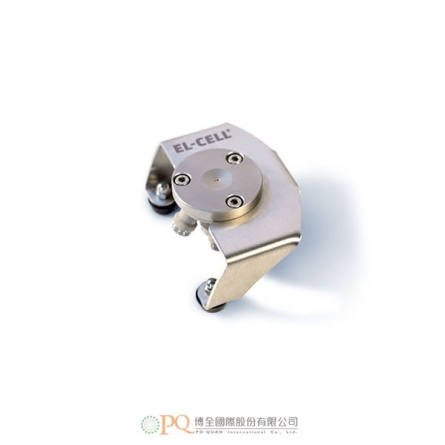

  ECC-Opto-Std-Aqu

  ECC-Opto-Std-Aqu

  ECC-Opto-Std-Aqu

  Test cell for optical characterization in the reflective mode – with face-to-face arrangement of electrodes. For aqueous electrolytes.

  • 2- and 3-electrode cell with optical window for aqueous electrochemistry
  • Materials in media contact are gold, PEEK and EPDM
  • Typically used in combination with optical or Raman microscopy in the reflection mode.
  • PRODUCT DETAILS

  加入諮詢

  加入諮詢
•

  ECC-Opto-Gas

  ECC-Opto-Gas

  ECC-Opto-Gas

  Test cell for optical characterization of gas diffusion electrodes in metal-air batteries.

  • In-situ test cell for the optical characterization of gas diffusion electrodes (GDE) in aprotic organic electrolytes.
  • Minimized dimensions suitable for light and Raman microscopes working in the reflective mode
