pH組合式電極 - 鉑|氫|溶液|銀|氯化銀-pH-電極；pH電極－氫-pH-電極

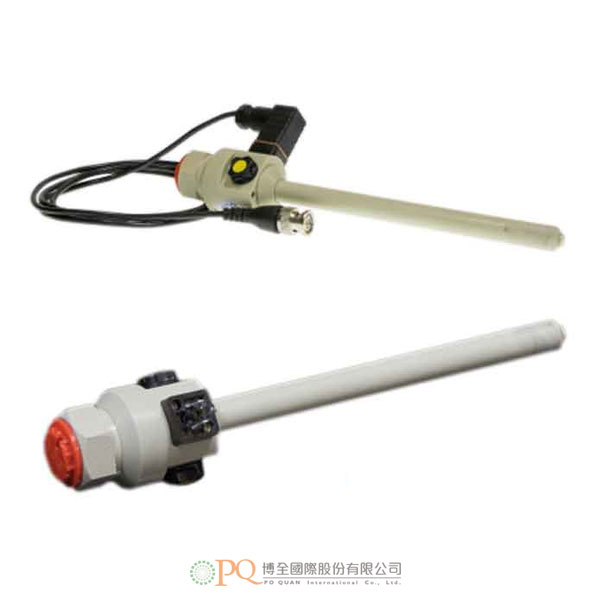

gaskatel Pt/H2/Solution/Ag/AgCl-pH-electrode pHydrunio 型號：pHydrunio

第一個由2個氫電極組成的組合式pH電極 - 使用氫電位來測量pH，特點包括：
- 免維護、不易斷裂。
- 由PTFE或PP製成。
- PTFE隔膜。
- 2mm鍍金插座接點(氫電極)。
- 2mm銀插座接點(銀-氯化銀電極)。
- 3 mol / l KCl (〜2 ml)…等。

加入洽詢

產品特點產品規格 Features Specifications

- 第一個由2個氫電極組成的組合式pH電極- 使用氫電位來測量pH，特點如下：
  - 免維護、不易斷裂。
  - 由PTFE或PP製成。
  - PTFE隔膜。
  - 2mm鍍金插座接點(氫電極)。
  - 2mm銀插座接點(銀-氯化銀電極)。
  - 3 mol / l KCl (〜2 ml)。
  - 長105mm (不含銀插座接點)。
  - 長80mm(不含電極頭)。
  - 直徑12mm。
  - 使用PT100感測器。
  - pH值範圍從pH-2到pH值16。
  - 可在最高達500.000 ppm的含氟電解質中。
  - 用於非水電解質中。
- 總體介紹：
  - gaskatel pH電極pHydrunio -- 氫-pH-電極，是世上第一個可在市場上訂購到的氫pH電極。
  - pHydrunio專利DE 10 2011 113 941。
  - gaskatel pHydrunio結合一個可逆的氫電極在您的溶液中作為測量電極，及一個氫參考電極在內部電解質中作為參考電極，它在交貨時即已啟用，您所需要做的，只是將它填入電解質緩衝液7(Gaskatel)，而在 24小時後，pHydrunio便可使用。配備由一個內部來源提供10個月的氫氣。氫電池可更換，同時，在軸內的氫氣可確保控制的電解質從隔膜放電。pHydrunio是由塑膠製成，因此，不能密封。
  - 電解質具有已知的pH值、填入及等待24小時，然後，測量。
  - 使用時間10個月，然後，氫電池可以輕易更換。
  - 塑膠製成，不易斷裂。
  - 控制的電解質放電。
  - 適用於pH值-2到pH值16。
  - 可用於濃縮的含氟介質。
  - 軸直徑12mm，軸長160mm。

迄今，pHydrunio已在下表溶液通過測試：

電解質	溫度	pHydrunio ±5mV	pH值
10 mol/l 氫氟酸	27°C	-174	-0.39
1 mol/l 鹽酸	24°C	-197	0.00
50% 甲酸	22°C	-207	0.17
5 mol/l 氫氟酸	27°C	-212	0.25
1 mol/l 檸檬酸	23°C	-281	0.43
1 mol/l 草酸	23°C	-235	0.65
50% 乳酸	22°C	-255	0.98
1 mol/l 氫氟酸	27°C	-26	1.12
50% 醋酸	24°C	-271	1.26
50% 檸檬酸	24°C	-222	1.43
1 mol/l 乳酸	23°C	-301	1.76
1 mol/l 甲酸	23°C	-302	1.78
1 mol/l 醋酸	23°C	-333	2.31
1 mol/l 氫氧化鈉	23°C	-1004	13.74
5 mol/l 氫氧化鈉	24°C	-1052	14.50
10 mol/l 氫氧化鈉	24°C	-1102	15.35

pHydrunio也適用於標準緩衝溶液，假如您所尋找的溶液不在上表中，未必表示pHydrunio不適用，而僅表示我們尚未測試過它，假如有此情形，敬請不吝指教，謝謝！
詳細規格、配件、軟體、應用及選購，歡迎洽詢。

- pH-Electrode pHydrunio -- the first combined pH-Electrode of two hydrogen electrodes.
- Measurement of pH by use of Hydrogen potential:
  - Maintance free and unbreakable
  - Made from PTFE or PP
  - PTFE-diaphragm
  - 2 mm gold-plated socket contact (Hydrogen electrode)
  - 2 mm silver socket contact (Silver-Silverchloride electrode)
  - 3 mol/l KCl (~ 2 ml)
  - Length 105 mm (without silver socket contact)
  - Length without the electrode head 80 mm
  - Diameter 12 mm
  - With PT100 sensor
  - pH-range from pH -2 bis pH 16
  - In fluoride containing electrolytes up to 500.000 ppm
  - For use in nonaqueous electrolytes
- Overview:
  - pH-Electrode pHydrunio – Hydrogen-pH-Electrode is the world’s first commercially available hydrogen pH electrode:
  - pHydrunio (patent DE 10 2011 113 941).
  - It combines a reversible hydrogen electrode as a measuring electrode in your solution with a hydrogen reference electrode in an internal electrolyte as a reference electrode. It is delivered activated. All you need to do is fill in the electrolyte buffer 7 (Gaskatel), and pHydrunio is ready for use after 24 hours. It is supplied with hydrogen gas for 10 months by an internal source. The hydrogen cells can then be replaced. At the same time, the hydrogen inside the shaft ensures controlled electrolyte discharge from the diaphragm. It is made of plastic and therefore can not be sealed.
  - Electrolyte with known pH-value, fill, wait 24 hours and measure
  - run time 10 months, then the H2 cells can be easily exchanged
  - unbreakable because made of plastic
  - controlled electrolyte discharge
  - applicable from pH -2 to pH 16
  - can be used in concentrated fluoride-containing media
  - Shaft diameter 12 mm, shaft length 160 mm
  - Are you interested in our hydrogen pH electrode – then please contact us.

So far we tested pHydrunio in these solutions:

Electrolyte	Temperature	pHydrunio ± 5 mV	pH-Value
10 mol/l hydrofluoric acid	27°C	-174	-0.39
1 mol/l hydrochloric acid	24°C	-197	0.00
50% formic acid	22°C	-207	0.17
5 mol/l hydrofluoric acid	27°C	-212	0.25
1 mol/l citric acid	23°C	-281	0.43
1 mol/l oxalic acid	23°C	-235	0.65
50% lactic acid	22°C	-255	0.98
1 mol/l hydrofluoric acid	27°C	-264	1.12
50% acetic acid	24°C	-271	1.26
50% citric acid	24°C	-222	1.43
1 mol/l lactic acid	23°C	-301	1.76
1 mol/l formic acid	23°C	-302	1.78
1 mol/l acetic acid	23°C	-333	2.31
1 mol/l sodium hydroxide	23°C	-1004	13.74
5 mol/l sodium hydroxide	24°C	-1052	14.50
10 mol/l sodium hydroxide	24°C	-1102	15.35

pHydrunio works also in standard buffer solutions. If you are looking for a solution not mentioned in the table above, it does not necessarily mean that pHydrunio can't be used in your application. It only means that we did not yet test it. Please do not hesitate to contact us in this case!
Please feel free to contact for detailed specifications, accessories, software, applications, and options.
