酸密度感測器

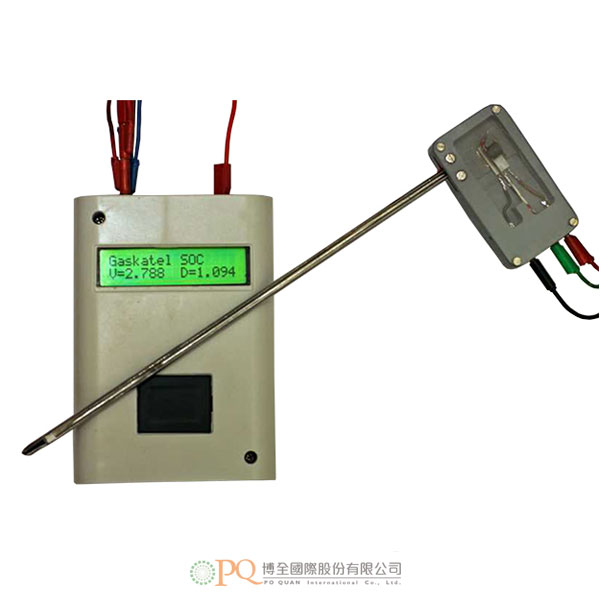

• Gaskatel SOC感測器適用於連續控制鉛酸蓄電池中的硫酸密度，也適用於閥控式密封鉛酸蓄電池(AGM)的測量。
• SOC感測器測量的酸密度範圍為1.05～1.4g / cm3。
• SOC感測器桿的長度為300mm，直徑4mm - 感測器長度可從50mm到700mm。
• 可連接顯示裝置及經由USB介面(9600baud)讀取電壓及計算的酸密度。
• 可連接程控系統，也可以用程控系統的電源來驅動。
• 遠端控制：
  • 可經由USB串列介面(9600baud)，從顯示裝置讀取電壓及計算的酸性密度。
  • 可將感測器連接到程控系統，只須將程控系統的電壓輸入裝置，插入感測器的接地及信號插頭。
  • 也可用程控系統的電源來驅動感測器(假如電源電壓不是5VDC - 必須記住感測器的信號取決於電源電壓(應該介於5至12V DC之間的範圍)，那就必須用兩種不同的酸密度來校正感測器(例如1.1及1.3 g/cm³)。

• 操作：
  • 將顯示裝置與電源連接(9V DC)，並將感測器以正確的極性與顯示裝置(5V DC)連接(可從壓克力玻璃看見)。
  • 將感測器放在已知密度的硫酸中24小時，之後，感測器便準備好進行校正。
• 介面：可經由USB介面(9600 Baud)讀取感測器電壓及計算的密度值。
• 顯示裝置：ATmega 328處理器、10位元AD轉換器、2行x16字元顯示幕。
• 體積：
  • 感測器機殼：69 x 39 x 13 mm³。
  • 管子直徑Ø3mm或4mm，管子長度50～700 mm，可客製。
• 測量範圍及精確度：
  • 範圍：1.05～1.45 g/cm³。
  • 誤差：0.005 g/cm³。
  • 時間常數：10分鐘直至95%
• 詳細規格、配件、軟體及選購，歡迎洽詢。

• continuous control of sulfuric acid density in your lead accumulators
• also for measurements in VRLA batteries (AGM)
• measures the acid density in a range of 1.05 -1,4 g/cm3
• length of sensor rod 300 mm, diameter 4 mm
• length from 50 mm to 700 mm
• Remote control:
  • You may read the voltage and calculated acid density from the display unit from the USB serial interface (9600baud).
  • You may also connect the sensor to your process control system, just plug in the voltage input device of your process control system to the ground and signal plugs of the sensor.
  • You may also drive the sensor with a power supply of your process control. If the power supply is different to 5V you have to keep in mind that the sensor signal depends on the supply voltage (should be in the range between 5 and 12 V DC). Then you have to calibrate the sensor in two different acid densities, if you run the sensor with a different voltage than 5 V DC (for example 1.1 und 1.3 g/cm³).

• Operation:

Connect the display unit with the power supply (9Volt DC). Connect the sensor with the display unit (5V DC) with the right polarity (visual through the acrylic glass) Store the sensor for 24h in a sulfuric acid with a known density. After that the sensor is ready for calibration.

• Interface: You may read the sensor voltages and the calculate density values at the USB interface (9600 Baud).
• Display Unit: Based on ATmega 328 processor. 10 bit AD Converter 16x2 Display
• Dimensions:
  • Sensor enclosure 69 x 39 x 13 mm³
  • Tube diameter Ø3mm or 4mm, Tube length: 50 to 700 mm, custom specific
• Measurement range and exactness
  • Range 1.05 bis 1.45 g/cm³
  • Error 0.005 g/cm³
  • Time constant 10 Minutes until 95%
• Please feel free to contact for detailed specifications, accessories, software and options.
