ZW100/10A & ZW10/20A - Coil 型號：ZW100/10A & ZW10/20A - Coil

100 turns coil for current up to 10A and 10 turns coil for current up to 20A for clamps and clamps meters checking by using with calibrators series C101, C200, C233, C300 and C300B.

加入洽詢

產品特點產品規格 Features Specifications

ZW Coils for clamps and clamp meters

Extending range up to 1000A

Coil ZW10 for small clamps

Coil ZW100 for clamps up to 1000A

It is possible to design coil for individual requirements

Parameter / coil type	ZW10/20A	ZW100/10A
Number of turns	10	100
Nominal Current [A]	20	10
Effective current output [A]	200	1000
Frequency [Hz]	0-500	0-500
Clamp/Coil interaction for toroidal-type clamps and for f=45-65Hz	±0.25% ±0.02A	±0.25% ±0.02A
Wire diameter [mm]	1.8	2.0

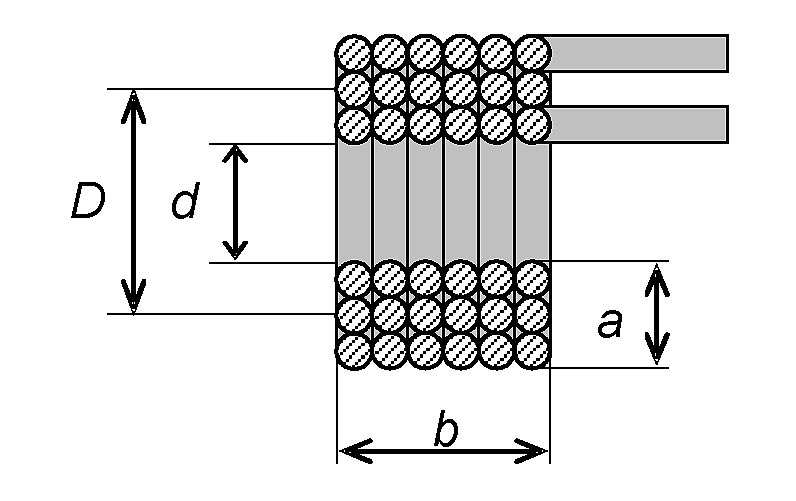

Coil crossec. axb [mm]	10x7	23x24
Coil diameter D [mm]	48	63
Hole diameter d [mm]	38	40
Coil resistance [W]	0.012	0.120
Coil inductance [mH]	5	560
Coil weight [kg]	0.6	1.2

ZW Coils for clamps and clamp meters

Extending range up to 1000A

Coil ZW10 for small clamps

Coil ZW100 for clamps up to 1000A

It is possible to design coil for individual requirements

Parameter / coil type	ZW10/20A	ZW100/10A
Number of turns	10	100
Nominal Current [A]	20	10
Effective current output [A]	200	1000
Frequency [Hz]	0-500	0-500
Clamp/Coil interaction for toroidal-type clamps and for f=45-65Hz	±0.25% ±0.02A	±0.25% ±0.02A
Wire diameter [mm]	1.8	2.0
Coil crossec. axb [mm]	10x7	23x24
Coil diameter D [mm]	48	63
Hole diameter d [mm]	38	40
Coil resistance [W]	0.012	0.120
Coil inductance [mH]	5	560
Coil weight [kg]	0.6	1.2
