DV Power > 電池測試設備系列

零電壓放電裝置

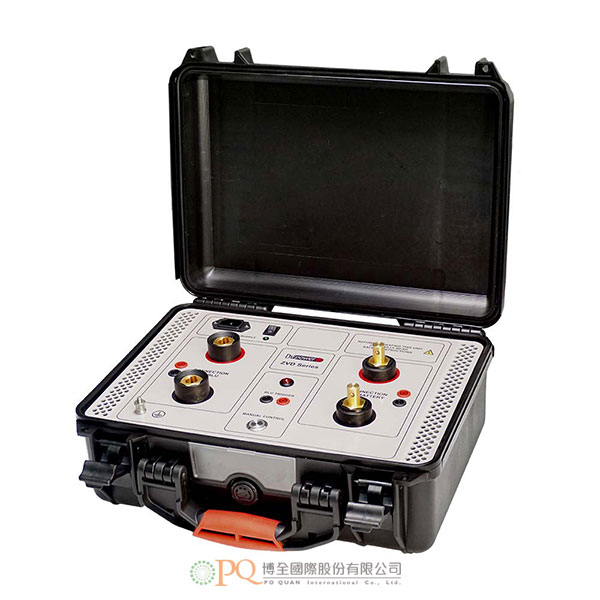

Zero Voltage Discharge Module 型號：ZVD80

零電壓放電模組- ZVD80是一個特別設計的裝置，能夠在回收之前對電池進行完全放電（降至0V）。它在帶有 DV Power BLU 單元的系統中運行，提供電池的總放電，啟動電壓高達 800 V DC。 BLU & ZVD80 系統具有通用性，因此可用於對任何類型的電池進行完全放電：鉛酸、鎳鎘、鋰基等。

加入洽詢

產品特點產品規格 Features Specifications

該系統通過分兩步驟對電池進行放電來改善放電過程 :

步驟 1：高效能（達 60 A）和受控（電流恆定下降直到達到 0 V）放電，直到電池電壓降至 0 V。
步驟 2：ZVD 將電池短路以去除剩餘能量。

BLU & ZVD 系統以恆定電流對電池進行放電（測試前電流值可由用戶選擇）。ZVD80 的最大放電電流為 60 A。
Mains Power Supply
- Connection according to IEC/EN60320-1; C320
- Voltage: 90 V – 264 V AC, 50 / 60 Hz, single-phase
Dimensions and Weights

Model Dimensions Weight

ZVD80
(without acc.) 405 x 170 x 335 mm
15.9 x 6.7.0 x 13.1 in 6,0 kg
13.2 lbs

Operating voltage measurement

Model Range

ZVD80 0 – 800 V DC

Current range

Model Range

ZVD80 0 – 60 A*

Environment conditions
- Operating temperature: -20 °C to +55 °C / -4 °F to +131 °F
- Storage & Transportation temperature: -40 °C to +70 °C / -40 °F to +158 °F
- Relative humidity: up to 95%, non-condensing
- Pollution degree: 2
Applicable Standards
- Electromagnetic Compatibility:Directive 2014/30/EU (CE conform) Applicable standard: EN 61326-1
- CAN/CSA-C22.2 No. 61010-1
Safety
- Low Voltage Directive: Directive 2014/35/EU (CE conform)
- Applicable standards, for a class I instrument, pollution degree 2, Installation category II: IEC EN 61010-1
Zero Voltage Discharge Module ZVD80 is a specially designed module enabling full battery discharge (down to 0 V) required before recycling. It operates in a system with DV Power BLU units, providing total discharge of batteries with starting voltage up to 800 V DC. BLU & ZVD system is universal, so it can be applied to fully discharge any battery type: Lead-acid, Ni-Cd, Li-based, etc.

The system improves the discharge process by discharging the battery in 2 steps:

Step 1: Efficient (up to 60 A) and controlled (current is constant down till 0 V is reached) discharge until the battery voltage drops to 0 V.
Step 2: ZVD short-circuits the battery to remove the remaining energy.

BLU & ZVD system discharges the battery at a constant current (the current value is user-selectable prior to the test). The maximum discharge current for model ZVD80 is 60 A.
Mains Power Supply
- Connection according to IEC/EN60320-1; C320
- Voltage: 90 V – 264 V AC, 50 / 60 Hz, single-phase
Dimensions and Weights

Model Dimensions Weight

ZVD80
(without acc.) 405 x 170 x 335 mm
15.9 x 6.7.0 x 13.1 in 6,0 kg
13.2 lbs

Operating voltage measurement

Model Range

ZVD80 0 – 800 V DC

Current range

Model Range

ZVD80 0 – 60 A*

Environment conditions
- Operating temperature: -20 °C to +55 °C / -4 °F to +131 °F
- Storage & Transportation temperature: -40 °C to +70 °C / -40 °F to +158 °F
- Relative humidity: up to 95%, non-condensing
- Pollution degree: 2
Applicable Standards
- Electromagnetic Compatibility:Directive 2014/30/EU (CE conform) Applicable standard: EN 61326-1
- CAN/CSA-C22.2 No. 61010-1
Safety
- Low Voltage Directive: Directive 2014/35/EU (CE conform)
- Applicable standards, for a class I instrument, pollution degree 2, Installation category II: IEC EN 61010-1
