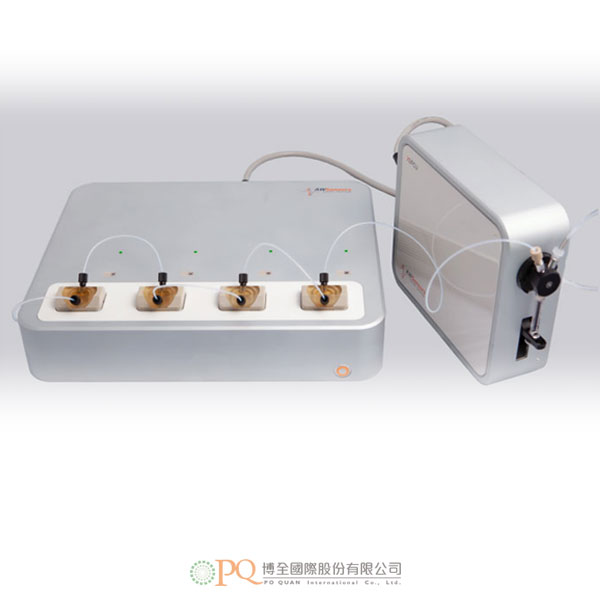

X4高階多通道QCMD系統
X4 Advanced Multichannel QCMD system 型號：X4- 模塊化設計，支援經典和高頻QCMD和LOVE-SAW傳感器測量。
- 可快速鎖定測量單元的舒適操作和強大的測量功能。
-
- 高靈敏度 & 低偵測極限。
- 快速取樣速率。
- 樣品體積小。
- 模塊化設計，支援經典和高頻QCMD和LOVE-SAW傳感器測量。
- 可快速鎖定測量單元的舒適操作和強大的測量功能。
- 通過乙太網進行儀器控制和數據採集。
- 整合的恆電位儀控制，可同時進行QCMD和電化學應用。
- 可選配液流模塊整合控制軟件。
- 基本數據分析套裝和導出功能，可用於第三方軟體分析。
- 時尚、節省空、輕量設計。
-
一般操作
單元數量（通道）
4
傳感器類型
QCM, AWS HFF‐QCM, AWS Love‐SAW
測量方式
追蹤模式 (單個泛音或多重泛音)1
高分辨率模式（單個泛音或多重泛音）2泛音數
最多7個（基本+ 6個泛音）
工作頻率範圍
4 MHz – 160 MHz
最高 頻率分辨率3
0.1 Hz
頻率精度3
± 0.5 Hz
溫度控制範圍4
15 °C – 45 °C
溫度穩定性
± 0.05 °C
最大時間分辨率5
50 sps
空氣中的正常質量靈敏度6
8 pg/cm2
空氣中的正常耗散靈敏度6
1.71x10‐10
液體中的正常質量靈敏度6
0.6 ng/cm2
液體中的正常耗散靈敏度6
3.5x10‐8
尺寸, (H x W x D)
150 mm x 400 mm x 300 mm
重量
< 10 Kg
- 追踪模式可在諧振頻率附近提供傳感器的完整阻抗譜。
- 專利認證的快速和高分辨率單頻點測量。
- 信號發生器。
- 在室溫 24°C ± 1°C。
- 單一頻率的高分辨率模式。
- 對於5 MHz的QCM，在追踪模式下測量了7個泛音，沒有求平均值。
-
- High sensitivity & low limits of detection.
- Fast acquisition rate.
- Low sample volumes.
- Modular design enabling classical and High‐Frequency QCMD as well as LOVE‐SAW sensor measurements.
- Comfortable handling and robust measurements with quick‐lock measurement cells.
- Instrument control and data acquisition via Ethernet.
- Integrated potentiostat control for simultaneous QCMD and electrochemistry applications.
- Optional fluidics module(s) with integrated software control.
- Basic data analysis package and export functions for third‐party software analysis.
- Sleek, space‐saving and lightweight design.
-
General operation specifications
Number of cell units (channels)
4
Type of sensors
QCM, AWS HFF‐QCM, AWS Love‐SAW
Measurement modes
Tracking mode (single overtone and multiple overtones)1
High Resolution mode (single overtone and multiple overtones)2Number of overtones
Up to 7 (fundamental + 6 overtones)
Operation frequency range
4 MHz – 160 MHz
Max. Frequency resolution3
0.1 Hz
Frequency accuracy3
± 0.5 Hz
Temperature control range4
15 °C – 45 °C
Temperature stability
± 0.05 °C
Maximum time resolution5
50 sps
Normal mass sensitivity in air6
8 pg/cm2
Normal dissipation sensitivity in air6
1.71x10‐10
Normal mass sensitivity in liquid6
0.6 ng/cm2
Normal dissipation sensitivity in liquid6
3.5x10‐8
Dimensions, (H x W x D)
150 mm x 400 mm x 300 mm
Weight
< 10 Kg
- Tracking mode provides the full impedance spectrum of the sensor around resonance frequency.
- Patented Fast & High‐Resolution single frequency point measurement.
- Signal generator.
- At room temperature 24°C ± 1°C.
- High‐Resolution mode at single frequency.
- For QCM 5 MHz, measured in Tracking Mode on 7 overtones, with no averaging.
