無線相位參考

讓局部放電資料分析更輕鬆精準

概述

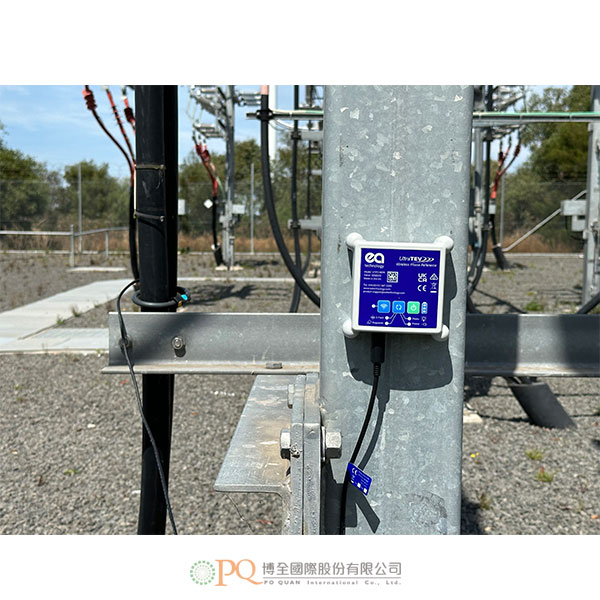

為了有效了解並防止高壓系統中的局部放電 (PD)，鎖相的優先順序至關重要。這可改善資料分析，做出更明智的決策。有鑑於此，我們推出了新的UltraTEV® Plus²配件 - 無線相位參考，以確保在任何環境下都能精確鎖相。

您聽過相位鎖定嗎？
在記錄 PRPD（相位解析局部放電）模式時會應用相位鎖定，以確保資料品質。
在進行 PD 測試時，它可有效地將測試儀器的頻率與 HV 網路的典型 50/60Hz 頻率相匹配。

當 PD 發生時，會產生放電或事件，這些放電或事件可被擷取，並沿著 50/60Hz 正弦波的一個週期繪製圖形，形成可解釋的圖案。

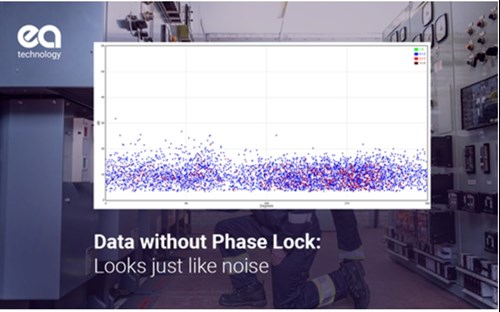

未鎖定相位時

	未鎖定相位時

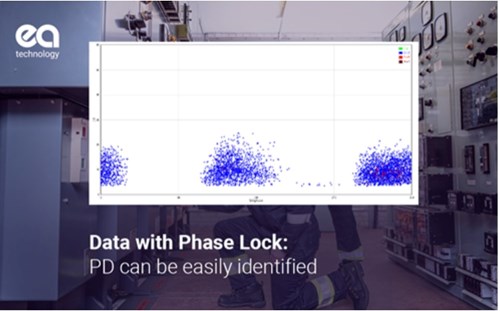

	鎖定相位時

操作影片


Making Partial Discharge data analysis easy and accurate
To effectively understand and prevent Partial Discharge (PD) in high voltage systems, it is crucial to prioritise phase lock. This can lead to improved data analysis and better informed decision making. With this in mind, we have introduced our new UltraTEV® Plus² accessory, the Wireless Phase Reference to ensure accurate phase lock in any environment.

Have you ever heard of a phase lock?
A phase lock is applied while recording PRPD (phase resolved partial discharge) patterns to ensure data quality.

It effectively matches the frequency of your test instrument to the typical 50/60Hz frequency of the HV network, whilst conducting PD tests.

As PD occurs, it will generate discharges or events that can be captured and plotted along one cycle of a 50/60Hz sine wave, creating a pattern which can be interpreted.
