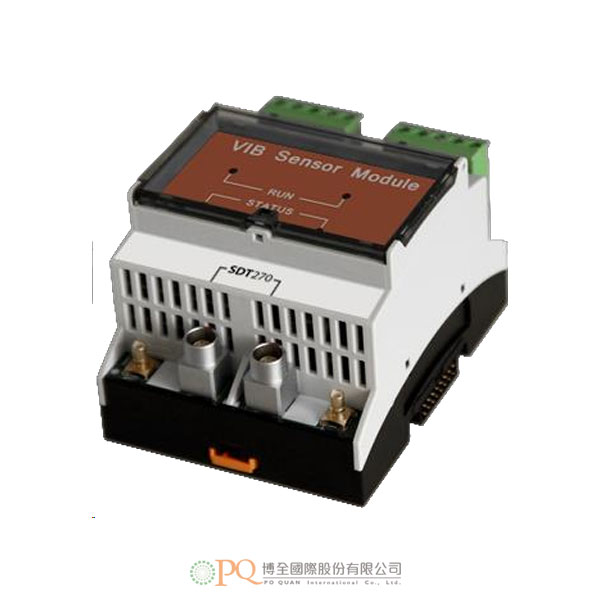

振動傳感器模塊 (需搭配主機 Online4US)

一般

功能

振動測量模塊

操作

ICP加速度計（由SDT International提供）

處裡器

ARM Cortex-M4 @ 120MHz

量測通道

2個並行隔離通道

量測範圍

0.0g to 10.0g

解析度

0.1g

測量帶寬

10Hz to 1kHz （符合ISO2954）

信號放大

自動

環境

操作溫度

-20 to +55 °C (-4 to 131°F)

基本

材質

聚碳酸酯纖維

尺寸

71.6x89.7x54.9 mm (2.80”x3.50”x2.13”)

安裝

35 mm DIN-rail

重量

180g (6.35oz)

 電源

電源供應

24VDC +/- 10% （通過內部DIN導軌連接使用主電源，無需外部佈線）

功耗

≈100mA

處理

信號指標

加速度RMS（具有可配置的RMS週期）
速度RMS（具有可配置的RMS週期）
加速度峰值（整個RMS期間的絕對最大信號值）加速度波峰因數（峰值與RMS之比）Acceleration Crest Factor (peak to RMS ratio)

取樣速率

32ksps

解析度

12bits

外接

兼容通過SMO或通過LEMO7和BNC輸出連接器使用外部設備進行動態測量和數據記錄

General

Function

Vibration measurement module

Operable with

ICP Accelerometer (provided by SDT International)

Processor

ARM Cortex-M4 @ 120MHz

Measurement channel

2 parallel isolated channels

Measuring range

0.0g to 10.0g

Resolution

0.1g

Measurement bandwidth

10Hz to 1kHz (ISO2954 compliant)

Signal amplification

Automatic

Environmental

Operating temperature range

-20 to +55 °C | -4 to 131°F

Mechanical

Housing material

Polycarbonate

Dimensions housing

71.6x89.7x54.9 mm | 2.80”x3.50”x2.13”

Mounting

35 mm DIN-rail

Weight

180g | 6.35oz

Power

Power supply

24VDC +/- 10% (uses main power supply through internal DIN-rail connection, no external wiring is needed)

Power consumption

≈100mA

Processing

Signal indicators

Acceleration RMS (with configurable RMS period)
Velocity RMS (with configurable RMS period)
Acceleration Peak (absolute maximum signal value during whole RMS period) Acceleration Crest Factor (peak to RMS ratio)

Sample rate

32ksps

Resolution

12bits

External

Compatible for dynamic measurement and data recording using SDT or external devices through LEMO7 and BNC output connectors
