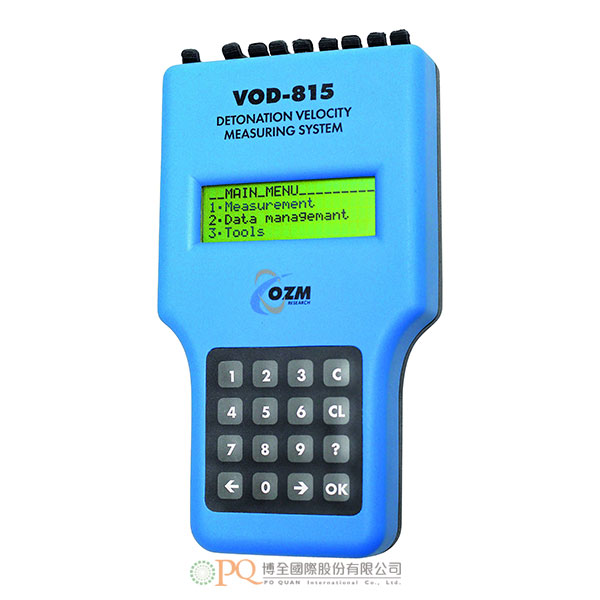

爆炸速度測速儀

OD 815 是一種可攜式儀器，用於使用光纖探頭測量高能量材料的爆炸速度。

VOD 815 配備 8 個被動光學通道，最多可處理 8 個探頭，以 7 個間隔測量速度。測量準備時間不到 10 分鐘，測量結果可立即查看。使用光纖探頭主要是為了充分抵禦雜散電流和電磁干擾，使儀器能安全地與其它儀器一起使用。

應用

VOD 815 主要用於炸藥製造和採礦業的品質控制、軍用炸藥監視和高能材料領域的教育。在這些情況下，其簡單的操作和結果評估功能備受青睞。

測試樣品的典型例子是 :

• 非封閉壓力、塑膠黏合或盒裝炸藥。
• 裝在塑料管或金屬管中的液態或氣體炸藥。
• 氣態爆炸混合物。
• 鑽孔的工業散裝或裝載炸藥。
• 聚能炸藥（噴射速度）。


	優勢和特點 8 個被動光纖探頭。 操作和數據蒐集簡單。 不受雜散電流和電磁干擾的影響。 電池供電。 防震保護箱。

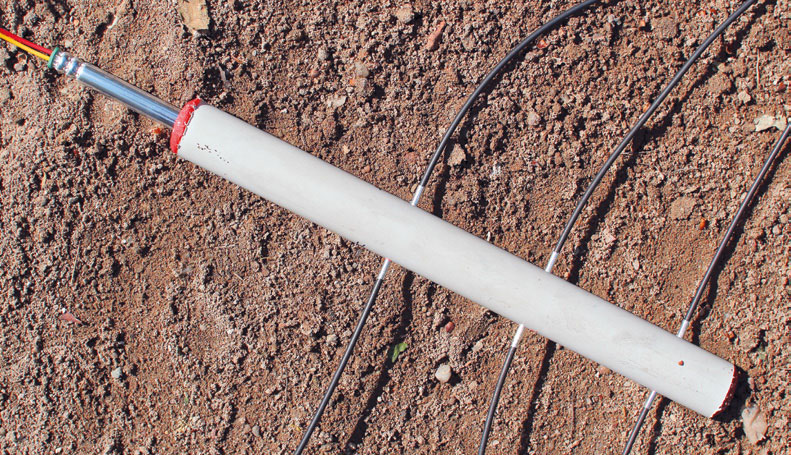

密閉塑料炸藥的測量裝置

	合規 EN 13630-11 Explosives for Civil Uses – Detonating cords and safety fuses - Part 11: Determination of velocity of detonation of detonating cords. EN 13631-14 Explosives for Civil Uses – High explosives, Part 14: Determination of Velocity of Detonation.

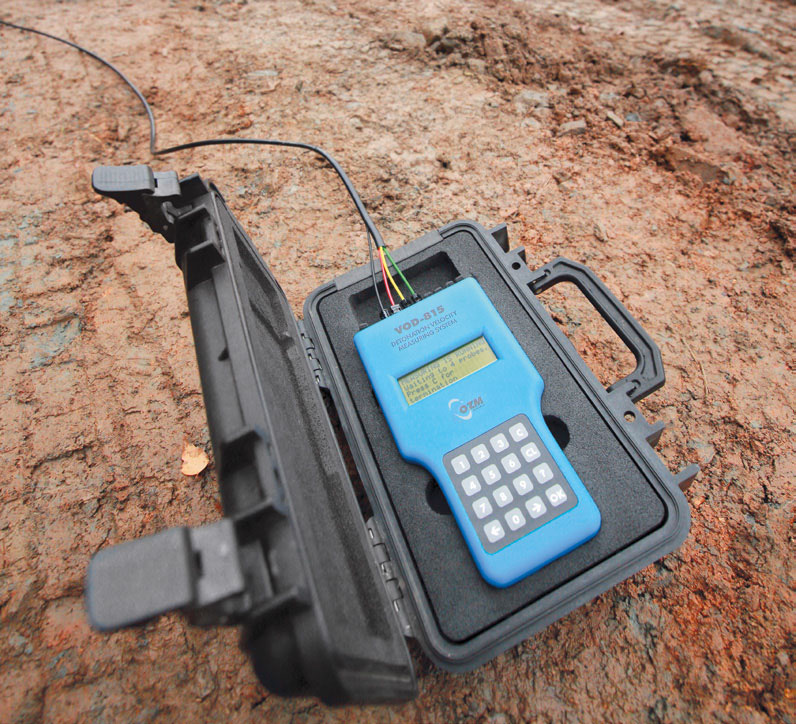

裝在防震保護箱中的 VOD 815



The VOD 815™ is a portable instrument created for the measurement of the detonation velocity of energetic materials using fiber optic probes. The VOD 815 is equipped with 8 passive optical channels, which can handle up to eight probes to measure velocity at seven intervals. The measurement preparation time is less than 10 minutes and the result can be viewed immediately. The use of fiber optic probes principally provides full resistance against stray currents and electro- magnetic disturbances, which allows the instrument to be safely used together with other instruments.

APPLICATIONS
The VOD 815 is primarily designed for quality control in explosives manufacturing and mining industries, military explosives surveillance and education in the field of energetic materials. In these cases, its simplicity of operation and results evaluation are highly appreciated.

Typical examples of tested samples are:

• Unconfined pressed, plastic bonded or cartridged explosives
• Liquid or gaseous explosivesconfined in plastic or metallic tubes
• Gaseous explosive mixtures
• Industrial bulk or cartridged explosives in boreholes
• Shaped charge (jet velocity)

	ADVANTAGES & FEATURES 8 passive fiber optic probes Simple operation and data acquisition Immune to stray currents and EM disturbances Battery powered ​Shockproof protective case
Measurement setup for a confined plastic explosive

	COMPLIANCE EN 13630-11 Explosives for Civil Uses – Detonating cords and safety fuses - Part 11: Determination of velocity of detonation of detonating cords EN 13631-14 Explosives for Civil Uses – High explosives, Part 14: Determination of Velocity of Detonation
VOD 815 in a shockproof case
