USR-01 Test Kit for Welded Rail Joints
USR-01 Test Kit for Welded Rail Joints 型號：USR-01
The USR-01 Test Kit is intended for ultrasonic inspection of rails in track, alumino-thermic welded rail joints, electro-contact welded rail joints, as well as pre-weld inspection of rail ends in both new and used rails.
-

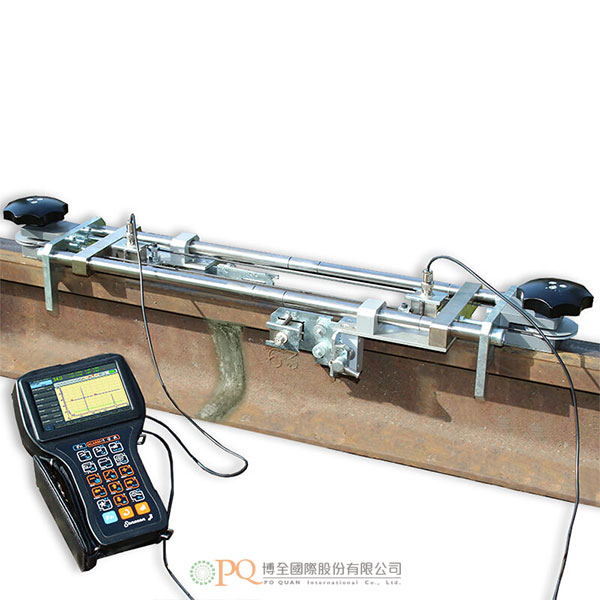

USR-01 Test Kit

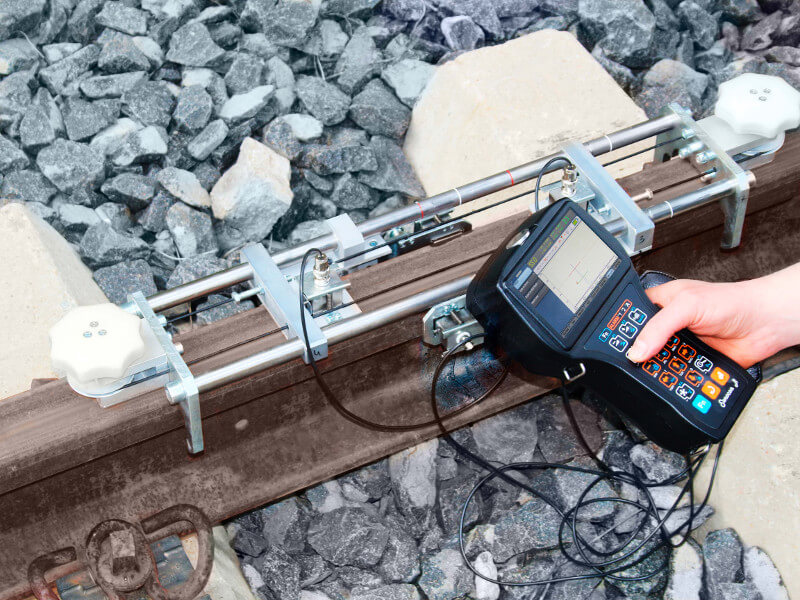

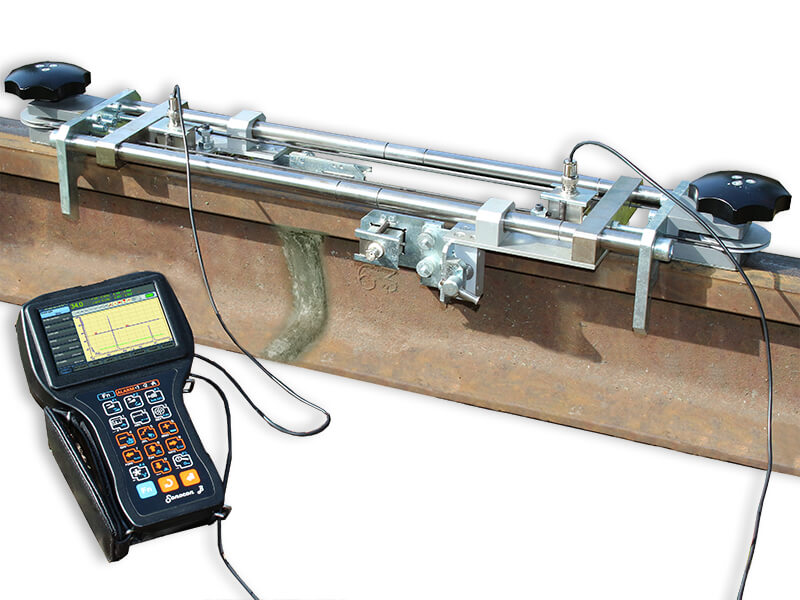

The USR-01 Test Kit is intended for ultrasonic inspection of rails in track, alumino-thermic welded rail joints, electro-contact welded rail joints, as well as pre-weld inspection of rail ends in both new and used rails.The USR-01 Test Kit consists of a scanning device used for positioning and movement of probes, the Sonocon B flaw detector, and additional probes for manual testing.
The Test Kit is compliant with EN14730-1 requirements.

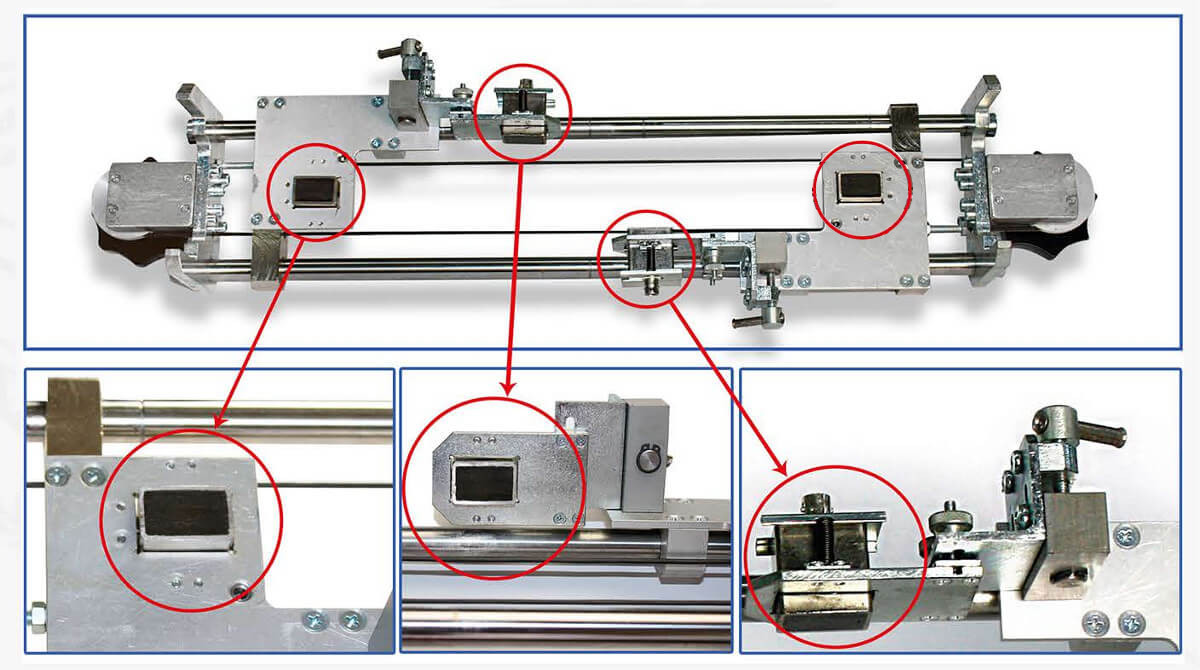

USR-01 Scanner
Scanning schemes
Manual probes
Manual probes employing the pulse echo technique are used to inspect welded joints for inclusions, pinholes, and voids.

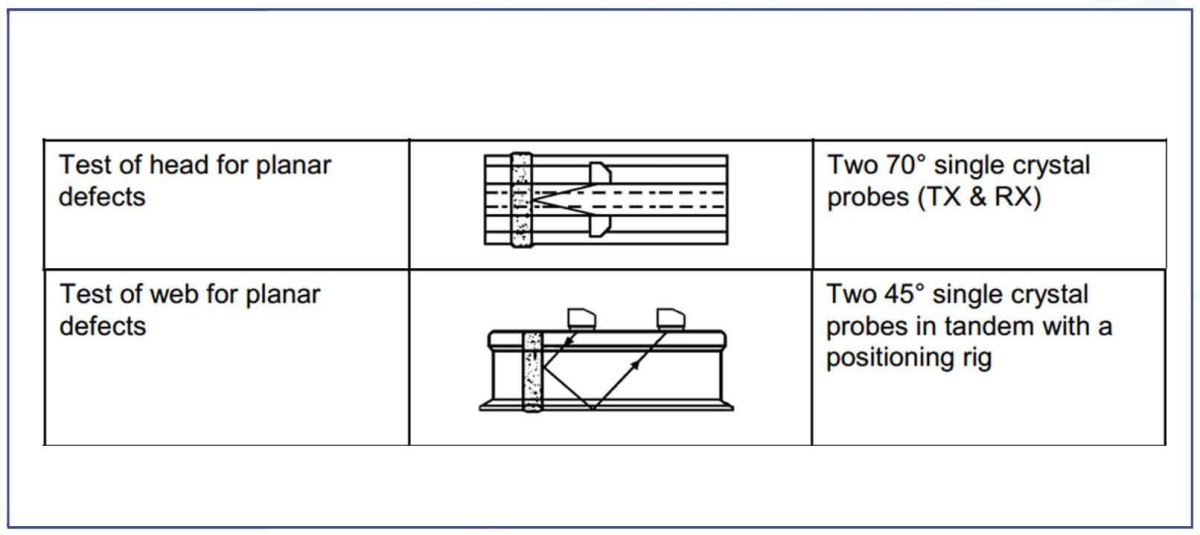

Scanning schemes

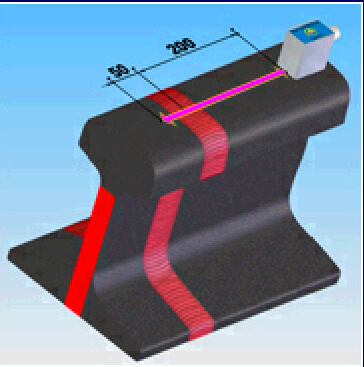

Inspection of the rail web from the running surface of the rail head with 45° probes.

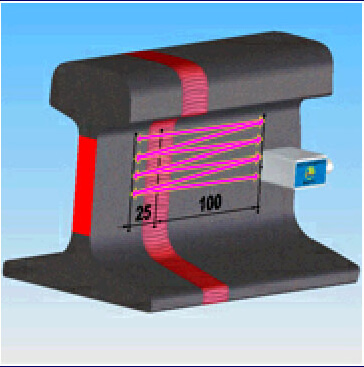

Inspection of the rail web from the lateral surface of the rail web with 0° and 70° probes (a complementary scheme )

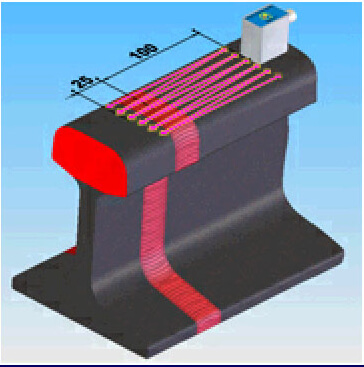

Inspection of the rail head from the running surface (70° probe).

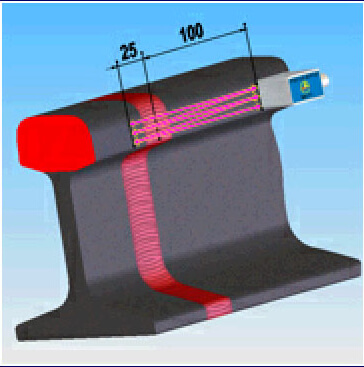

Inspection of the rail head from the lateral face of the rail head with 0° and 70° probes.
