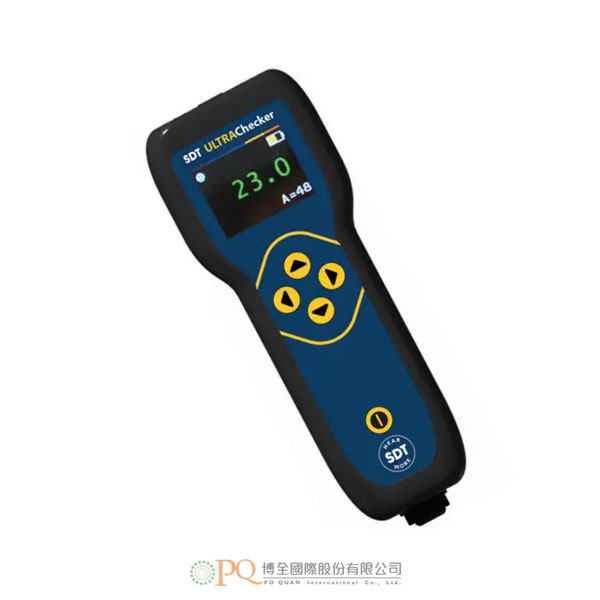

ULTRAChecker 超音波測漏設備

型號:ULTRAChecker
  • ULTRAChecker涵蓋了所有機載和結構超音波應用。可連接任何SDT第二代超音波傳感器。ULTRAChecker通過超音波的8個探頭提供端到端的可靠性。
  • ULTRAChecker是我們迄今為止最容易使用的檢測器。簡單的4鍵鍵盤控制彩色螢幕。耳機透過音量鍵的增減控制信號的放大,同時保持一定的聆聽水準。
  • ULTRAChecker會對漏氣、軸承潤滑過度、疏水閥故障、電氣故障、閥門洩漏等,進行過濾。
    • ULTRAChecker涵蓋了所有機載和結構超音波應用。可連接任何SDT第二代超音波傳感器。ULTRAChecker通過超音波的8個探頭提供端到端的可靠性。
    • ULTRAChecker是我們迄今為止最容易使用的檢測器。簡單的4鍵鍵盤控制彩色螢幕。耳機透過音量鍵的增減控制信號的放大,同時保持一定的聆聽水準。
    • ULTRAChecker會對漏氣、軸承潤滑過度、疏水閥故障、電氣故障、閥門洩漏等,進行過濾。
  • 功能 超音波檢測設備
    可支援的 SDT FlexID2,SDT RS2N針,RS2T螺紋,SDT AIRSense,SDT ULTRASense
    測量通道 1個7針LEMO通道
    顯示 160 x128 圖元的彩色OLED
    按鍵 5個功能鍵
    測量範圍 -6 到 99.9 dBμV(參考0 dB = 1μV,解析度0.1 dBμV)
    檢測頻帶 35 to 42 kHz
    信號放大 +30 to +102 in steps of 6 dB
    環境
    工作溫度範圍 -10 to +50 °C (14 to 122°F)
    防護等級 IP42
    設備
    材料和重量 ABS, 164g (5.78oz)
    尺寸大小 158x59x38.5 mm (6.22”x2.32”x1.51”)
    感測器連接 7針LEMO連接
    電源
    電池 2個5號電池
    待機 7小時
    音訊
    最大輸出 +83dB SPL with 25dB NRR Peltor HQ SDT 耳機
    • The SDT ULTRAChecker covers all airborne and structure-borne ultrasound applications. Connect any SDT 2nd generation ultrasound sensor. ULTRAChecker delivers end-to-end reliability through the 8 application pillars of ultrasound.
    • ULTRAChecker is the easiest to use detector we’ve ever created. Every push on its simple, 4-button keypad is displayed on its clear, colour display. Increase or decrease signal amplification while maintaining safe listening levels through volume-controlled headphones.
    • Air leaks, over-greased bearings, failed steam traps, electrical faults, passing valves, the ULTRAChecker finds them all. Built with SDT quality, it’s offered at a price that will leave you speechless.
  • Function Ultrasound measurement device Housing material ABS
    Display 160×128 pixels Color OLED Dimensions housing 158 x 59 x 38.5 mm | 6.22” x 2.32” x 1.51”
    Operable with SDT FlexID2,  SDT RS2N Needle, RS2T Threaded, SDT AIRSense, SDT ULTRASense Weight  164g | 5.78oz
    Measurement channel 1 channel via a 7 pole LEMO connector Battery 2 AA batteries
    Keyboard 5 function keys Autonomy 7 hours
    Measuring range -6 to 99.9 dBμV (reference 0 dB = 1 μV) Audio Amplification 5 adjustable positions by step of 6 dB
    Resolution 0.1 digits Operable with SDT provided head set only
    Measurement bandwidth 35 to 42 kHz Maximum output +83dB SPL with SDT headset
    Signal amplification +30 to +102 by step of 6 dB Headset 25dB NRR Peltor HQ headset
    Operating temperature range -10 to +50 °C |14 to 122°F IP rating IP42
